Briton Fire Door Kit - Pull Handle Kit
This pull handle kit from Briton is supplied with all the door furniture you will need for your new internal fire door. The kit is available with a choice of four different door closers, depending on the usage, a 300mm pull handle, finger plate, a set of fire door hinges and a set of metal 'Fire Door Keep Shut' signs. These kits are suitable for use on both FD30 and FD60 rated fire doors.
- Pull handle fire door kit for internal fire doors
- Each kit is supplied complete with door closer, signs, and hinges
- Available with 4 different closer options:
- Light Duty – supplied with the Briton 121CE (EN 3) door closer
- Medium Duty – supplied with the Briton 1120B (EN 2 - 4) door closer with backcheck
- Cam Action – supplied with the Briton 2320B.T (EN 2 - 4) door closer with slide arm and backcheck.
- Electromagnetic – supplied with the Briton 9963/01/SE (EN 3) door closer with free-swing and hold-open (must be connected to fire alarm)
Please note: The Briton 2320.T.SES and Briton 9963/01/SE door closers are for standard pull side installation only. If you require push side installation please contact us before placing your order. Also available in latching and locking versions.
Customer Reviews (0)
Reviews by Real Customers
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No Reviews Available
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product nowTechnical Data

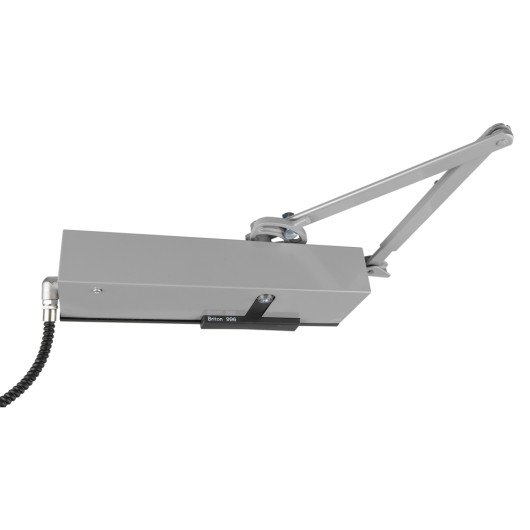

Briton Electromagnetic Door Closer Size 3 - Silver
| Product Code | BR996301SES |
|---|---|
| Brand | Briton |
| Activation | Fire Alarm Signal |
| Colour | Silver |
| Compliance | BS EN 1154: 1997 |
| BS EN 1155 | |
| Certifire - CF109 | |
| Approvals & Markings | CE Marked |
| Connection | Wired |
| Closing Speed | Adjustable |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3 | 1 | 1 | 3 |
| Equipment Type | Free-Swing Closer |
| Hold-Open Door Closer | |
| Fixing Options | Wooden Door Fixings (Included) |
| Hold Open Angle | Any Angle |
| Installation Position | Fig 1 |
| Fig 61 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Maximum Door Width | 950mm |
| Maximum Door Weight | 60kg |
| Material | Metal |
| Opening Angle | 110° |
| Power Size | EN 3 |
| Power Type | 24V DC |
| Warranty | 10 Years (Mechanical) |
| 2 Years (Electrical) | |
| Dimensions (Unit) |
|
| Weight | 3.00kg |
| Datasheets |
Fire Door Keep Shut Metal Sign
| Product Code | BR475010 |
|---|---|
| Brand | Briton |
| Finish | Metal |
| Fixing Options | Screws (not included) |
| Dimensions (Unit) |
|
| Weight | 150g |
Briton 300mm Pull Handle
| Product Code | BR300PULLH |
|---|---|
| Suitability | Steel Doors |
| Timber Doors | |
| Material | Stainless Steel |
| Recyclable | Partially Recyclable |
| Compliance | BS EN 1634 |
| Fire Rating | 240 Minutes |
| 90 Minutes | |
| Colour | Silver |
| Dimensions (Unit) |
|
Briton Finger Plate
| Product Code | BR4080375SS |
|---|---|
| Brand | Briton |
| Suitability | Steel Doors |
| Timber Doors | |
| Material | Stainless Steel |
| Compliance | BS EN 1634 |
| Fire Rating | 240 Minutes |
| 90 Minutes | |
| Colour | Silver |
| Fixing Options | Screws (included) |
| Dimensions (Unit) |
|
| Weight | 500g |
102x76mm FD s/a ball bearing hinge, satin stainless, 3-pack
| Product Code | FRIBB7660SS |
|---|---|
| Brand | Eclipse |
| Category | Grade 4 (Heavy / Severe Duty) |
| Compliance | Certifire - CF336 |
| BS EN 1634 | |
| BS EN 1935 | |
| Approvals & Markings | CE Marked |
| EN Classification | 4 | 7 | 6 | 1 | 1 | 4 | 0 | 13 |
| Equipment Type | Fire Door Hinges |
| Finish | Stainless Steel |
| Fire Rating | 240 Minutes |
| 60 Minutes | |
| Fixing Options | Screws (included) |
| Material | Stainless Steel |
| Maximum Door Weight | 120kg |
| Number of Pieces | 3 Pieces |
| Suitability | Steel Doors |
| Timber Doors | |
| Dimensions (Unit) |
|
| Weight | 860g |
| Datasheets |
Astro Flexi Hinge Pad Square Corners - 100x30x0.8mm (pk 6)
| Product Code | AFFLEXIHSPK |
|---|---|
| Brand | Astroflame |
| Colour | Black |
| Compliance | BS 476-20 |
| BS 476-22 | |
| Equipment Type | Fire Door Hinges |
| Fire Rating | 60 Minutes |
| Fixing Options | Surface Mounted |
| Material | Intumescent Material |
| Number of Pieces | 6 Pieces |
| Recyclable | Not Recyclable |
| Dimensions (Unit) |
|
| Weight | 100g |
| Datasheets |
Briton 4726 Pull Handle Universal Fixings
| Product Code | BRPHUNIFIX |
|---|---|
| Brand | Briton |
| Colour | Stainless Steel |
| Compliance | BS EN 1634 |
| Environmental Suitability | Indoors |
| Equipment Type | Pull Handles & Push Plates |
| Fixing Options | Glass Door Fixings (Included) |
| Metal Door Fixings (Included) | |
| Wooden Door Fixings (Included) | |
| Finish | Stainless Steel |
| Fire Rating | 240 Minutes |
| 90 Minutes | |
| Material | Stainless Steel |
| Recyclable | Fully Recyclable |
| Suitability | Glass Doors |
| Steel Doors | |
| Timber Doors | |
| Weight | 100g |
Kit Contents
- 3 x Grade 13 fire door hinges
- 1 x 300mm pull handle
- 1 x Pull handle fixings (pair)
- 1 x Finger plate
- 2 x Metal 'Fire Door Keep Shut' sign
- 1 x Choice of door closer
