Astroflame Thermal Fire Rated Pipe Sleeve

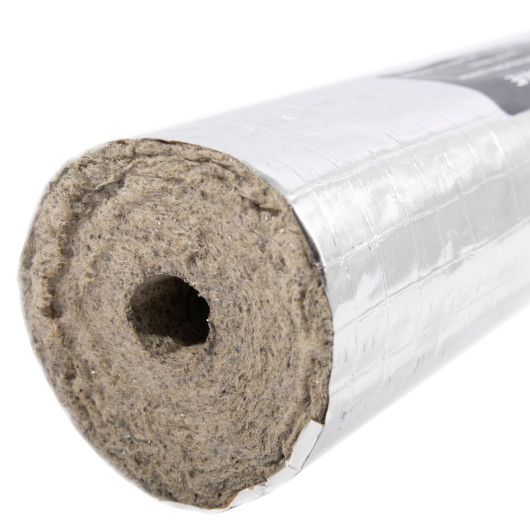

End view of thermal pipe sleeve 17mm showing insulation material and silver outer covering
End view of thermal pipe sleeve 17mm showing insulation material and silver outer covering thermal pipe sleeve 17mm shown from the front with a silver reflective surface and a black label in the centre thermal pipe sleeve 21mm showing the texture and hollow end wrapped in foil facing forward Front view of a thermal pipe sleeve 21mm wrapped in reflective silver material with a black label End view of a thermal pipe sleeve 27mm showing fibrous insulation inside a silver outer layer front view of a thermal pipe sleeve 27mm wrapped in silver reflective material with a black and red Astroflame label End view of a thermal pipe sleeve 34mm wrapped in reflective silver foil showing the insulation material inside Front view of a thermal pipe sleeve 34mm wrapped in shiny reflective material with a black and orange label Close-up of the end of a thermal pipe sleeve 42mm showing the inner insulation and outer silver wrapping Front view of a thermal pipe sleeve 42mm wrapped in reflective silver material with a black label in the centre Thermal pipe sleeve 48mm showing the close up view of the end with silver foil outer layer and fibre insulation inside Front view of a thermal pipe sleeve 48mm wrapped in shiny silver insulating material with a black label thermal pipe sleeve 54mm showing close up of one end with silver outer layer and fibrous inner material front view of a thermal pipe sleeve 54mm wrapped in a silver reflective material with a label in the centre Close-up of the end of a thermal pipe sleeve 60mm showing the insulation material and silver outer layer Front view of a rolled thermal pipe sleeve 60mm wrapped in silver foil with a black product label visible Close up of the end of a 67mm thermal pipe sleeve showing the layered insulating material and metallic outer surface thermal pipe sleeve 80mm shown from the end with silver outer layer and hollow centre Front view of a thermal pipe sleeve 80mm rolled up with a shiny silver surface Thermal pipe sleeve 89mm showing the hollow insulated core and reflective outer layer from the end angle Close-up view of the end of a thermal pipe sleeve 102mm showing the inner insulation and outer covering Close-up view of the end of a thermal pipe sleeve 108mm showing the insulation material and silver outer layer close-up of the end of a thermal pipe sleeve 114mm showing the insulation material inside and the outer silver layer Front view of a thermal pipe sleeve 114mm wrapped in reflective silver material with a black label in the centre Close-up of the end of a thermal pipe sleeve 127mm showing the inner insulation material and outer silver layer Front view of thermal pipe sleeve 127mm wrapped in reflective insulating material with a black product label in centre Close-up of the end of a thermal pipe sleeve 140mm showing insulation and metallic outer layer Close-up of the end of a thermal pipe sleeve 159mm showing the insulation material and outer covering Front view of a thermal pipe sleeve 159mm with a silver reflective surface and a visible product label End view of a thermal pipe sleeve 169mm showing the inner insulation material and reflective outer covering thermal pipe sleeve 169mm shown from the front wrapped in reflective silver material with a product label in the centre
4 out of 5 stars

20+ In Stock

For dispatch today order within
12 Hrs 30 Mins
£28.57 inc VAT

£25.45 inc VAT

£21.21 ex VAT

Standard Delivery

Will usually be delivered in 2-3 working days

£4.20 inc VAT

Next Day Delivery

Will usually be delivered the next working day

£7.00 inc VAT

Astroflame thermal fire rated pipe sleeves are fitted around plastic and metal pipes where they pass through fire rated compartment walls to prevent the spread of fire through the aperture. The pipe sleeves also provide thermal, acoustic and vapour insulation. In the case of a fire the sleeve expands to fill any available space between pipe and aperture. On plastic pipes the sleeve will crush and close-off the pipe. Fire pipe sleeves are suitable for plasterboard partitions, mineral fibre batt, solid walls and floors.

  • Available for pipe diameters from 17 - 169mm
  • Compressible intumescent sleeve – nominal thickness of 25mm
  • Supplied in 300mm lengths
  • 120 minute fire rated
  • Allows the pipe to expand and contract
  • Tested to BS 476 parts 20 and 22
Customer Reviews

Customer Reviews (1)

4 out of 5 stars

Reviews by Real Customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5

Reviewed by

Anonymous

Published on

19th March 2014

perfect fit, easy to trim, helpfull staff when i ordered the items

i was building a 2hr FC stud wall i required fire resistance to steel superstructure quickly and the H&S support info with it,when i asked i was greeted with a "yes sir" and in little time i had the product and H&S info, improving my company's Professional standing while improving my customers health and safety file, the items were slightly more expensive than other suppliers, however the excellent service and customer support more than compensated for it

Applies to option(s): 17mm

FAQs

There are no FAQs to display for the selected item.

Technical Data

Technical Data

Product Code AFIPS172E
Brand Astroflame
Colour Silver
Compliance BS 476-20
EN 1366-3
Lubrizol Approved
BS 476-22
Approvals & Markings CE Marked
Fire Protection EI120 Minutes (Gypsum Walls And Solid Floors)
EI240 Minutes (Solid Walls)
Fixing Options Flush Mounted
Surface Mounted / Semi-Flush
Insulating Properties Acoustic
Thermal
Vapour
Material Intumescent Material
Recyclable Not Recyclable
Suitability Metal Pipes
Plastic Pipes
Dimensions (Unit)
  • Height: 300mm
  • Diameter: 17mm
Dimensions (Internal)
  • Height: 300mm
  • Diameter: 17mm
Weight 50g
Datasheets
Suitability

Suitability

Pipe Material Diameter Blockwork Wall Solid Floor Mineral Batt Plasterboard Wall
COPPER Pipe Size 15 - 160mm Yes Yes   Yes
CAST IRON Pipe Size 15 - 160mm Yes     Yes
MILD STEEL Pipe Size 15 - 160mm Yes Yes   Yes
STAINLESS STEEL Pipe Size 15 - 160mm Yes Yes   Yes
POLYBUTYLENE Pipe Size 12mm Yes Yes Yes Yes
POLYBUTYLENE Pipe Size 28mm Yes Yes Yes Yes
PVC Pipe Size 55 - 110mm Yes Yes Yes Yes
PVC Pipe Size 160mm Yes Yes   Yes
PVC-U Pipe Size 15 - 160mm Yes Yes   Yes
HDPE Pipe Size 15 - 160mm Yes* Yes   Yes*
*HDPE 160mm limited to EI90
