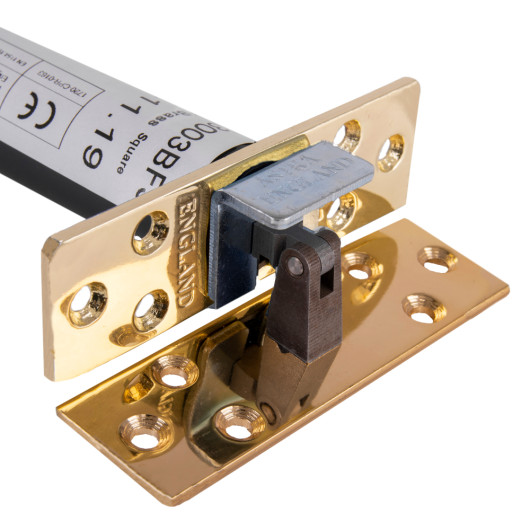

Astra 3003 Series Concealed Fire Door Closers
Manufactured in the UK, the Astra 3003 concealed door closer is suitable for door leafs up to 950mm wide. The closer is tested and certified to BS EN 1634-1 for use in 30 and 60 minute fire rated doors. Concealed into the door leaf and frame, the Astra 3003 reduces the risk of vandalism and creates an unobtrusive solution, ideal for doors to student accommodation or office spaces.
- Suitable for:
- Internal single action doors
- Doors weighing up to 60kg and measuring up to 950mm wide –
- Latched and unlatched doorsets
- Left and right hand opening doors
- CE and UKCA marked
- Certified to BS EN 1634-1: 2000 and BS EN 1363-1: 1999
- Complies to EN 1154: 1997 + A1: 2002
- Suitable for 30 and 60 minute fire rated doors
- Conforms to DDA standards BS 8300
- Concealed closer with adjustable features to suit your doors
- Closing speed controls how quickly the door closes
- Latching action governs the speed of the door it requires to overcome the latch
- Allows the door to open up to 105°
- Endurance tested to 500,000 closing cycles
- Available with a rectangular or rounded plate in a choice of finishes
- Closer should be fitted by a competent joiner / craftsman
Please note: The Astra concealed door closers is unsuitable for doors fitted with projecting or rising butt hinges fitted. An installation kit, comprising of a fitting jig and auger bit is required for installation, and are available to purchase separately. These are not included.
Customer Reviews (11)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
J L
Published on
17th April 2024
Reviewed by
J H
Published on
16th October 2023
Very sturdy product
Excellent service
Reviewed by
J K
Published on
5th June 2023
Best door closer for entrance door.
Reviewed by
N G
Published on
21st April 2023
Easy to install
Works well on heavy door
Reviewed by
A S
Published on
8th February 2022
Well engineered device, excellent replacement for failed unit.
Technical Data
| Product Code | FCAST3BS |
|---|---|
| Brand | Astra |
| Compliance | BS EN 1154: 1997 + A1: 2002 |
| BS EN 1363-1 | |
| BS EN 1634-1: 2000 | |
| DDA Standards BS 8300 | |
| Approvals & Markings | CE Marked |
| UKCA Marked | |
| Closing Speed | Adjustable |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 3 | 1* | 1 | 0 |
| Finish | Brass |
| Fire Rating | 60 Minutes |
| Fixing Options | Wooden Door Fixings (Included) |
| Installation Position | Inside Door |
| Latching Action | Adjustable |
| Maximum Door Width | 950mm |
| Maximum Door Weight | 60kg |
| Material | Metal |
| Opening Angle | 105° |
| Power Size | EN 3 |
| Suitability | 30 Minute Fire Doors |
| 60 Minute Fire Doors | |
| Dimensions (Unit) |
|
| Weight | 750g |
| Datasheets |
|
Solid material and well made
Only problem unaware there was no template included to cut out the hole needed for the door to insert the piston. Should have mentioned this in the description when purchasing to buy one separately.
Applies to option(s): Brass - Rectangular Plate
