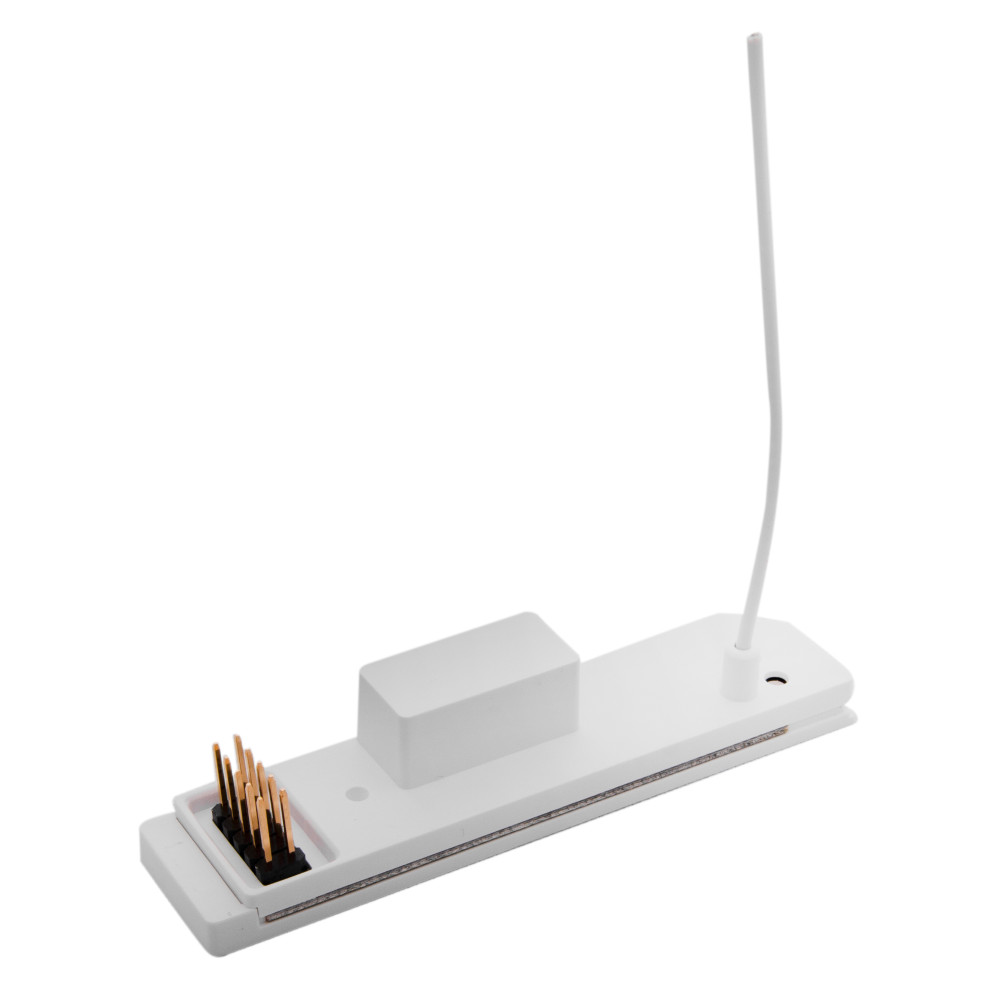

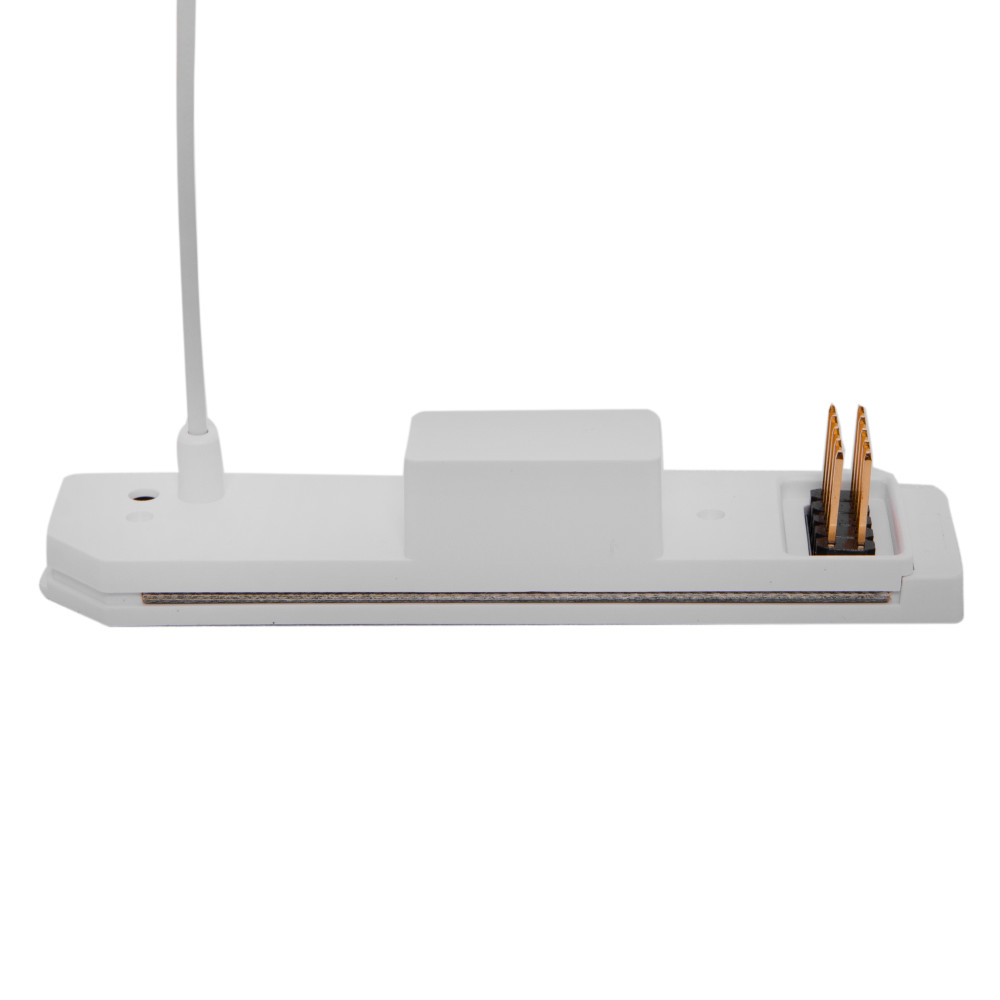

RadioLINK+ Module - Ei100MRF
The Ei100MRF is a compact RadioLINK+ module with sealed re-chargeable lithium back-up battery. Designed for use with the Ei160e series of mains powered smoke and heat alarms, the RadioLINK+ module enables up to 12 alarms to wireless interlink within a single system, helping to save on the time, costs and mess associated with hard-wire interconnection. The Ei100MRF achieves a radio-frequency range of 100m in free space and 30m inside buildings.

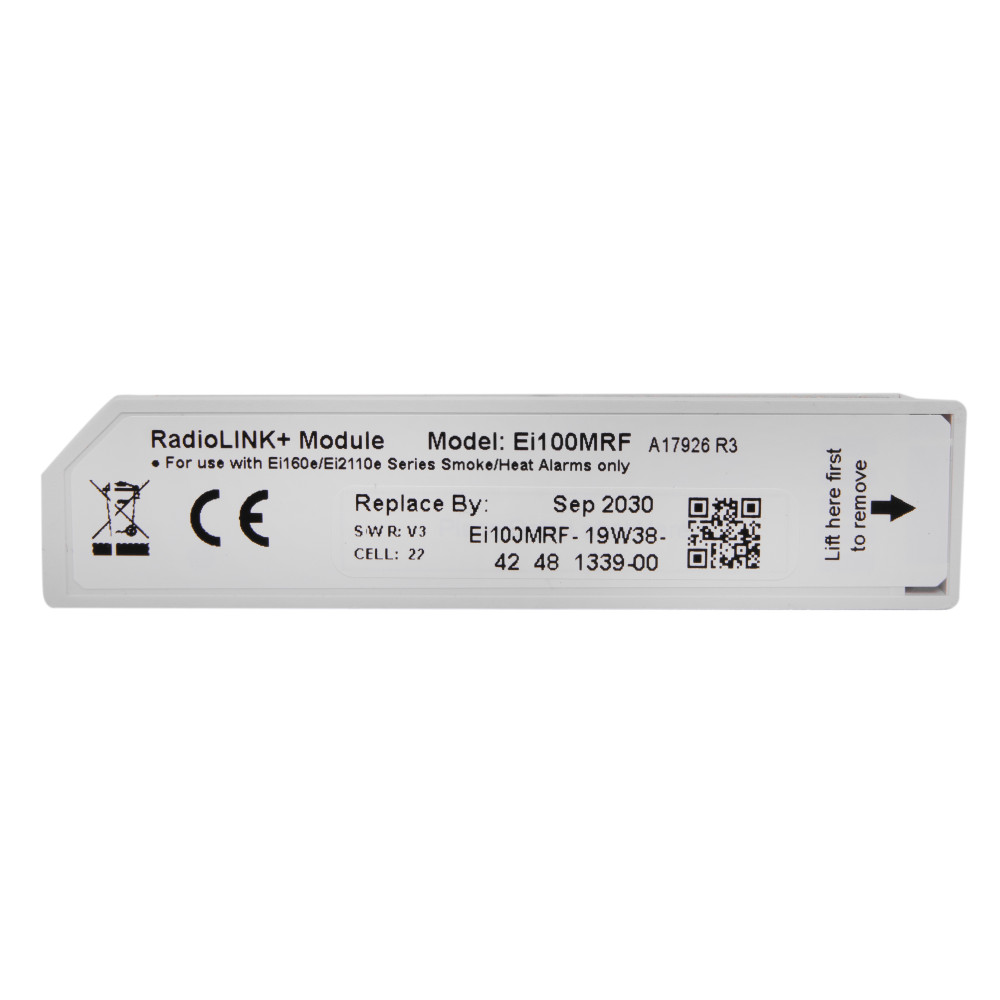

Please Note: these are old stock being sold on clearance with replacement dates around August 2030.
- 230V mains powered module with re-chargeable lithium back-up battery
- CE marked
- 5 year manufacturer's warranty
- Designed for use with the following mains powered alarms:
- Ei161e Ionisation Smoke Alarm
- Ei166e Optical Smoke Alarm
- Ei164e Heat Alarm
- Enables up to 12 smoke and heat alarms to be wirelessly interlinked within a single system
- Sealed back-up battery designed to last the life of the module (10 years)
- Radio-frequency range: 100m in free space, up to 30m in buildings

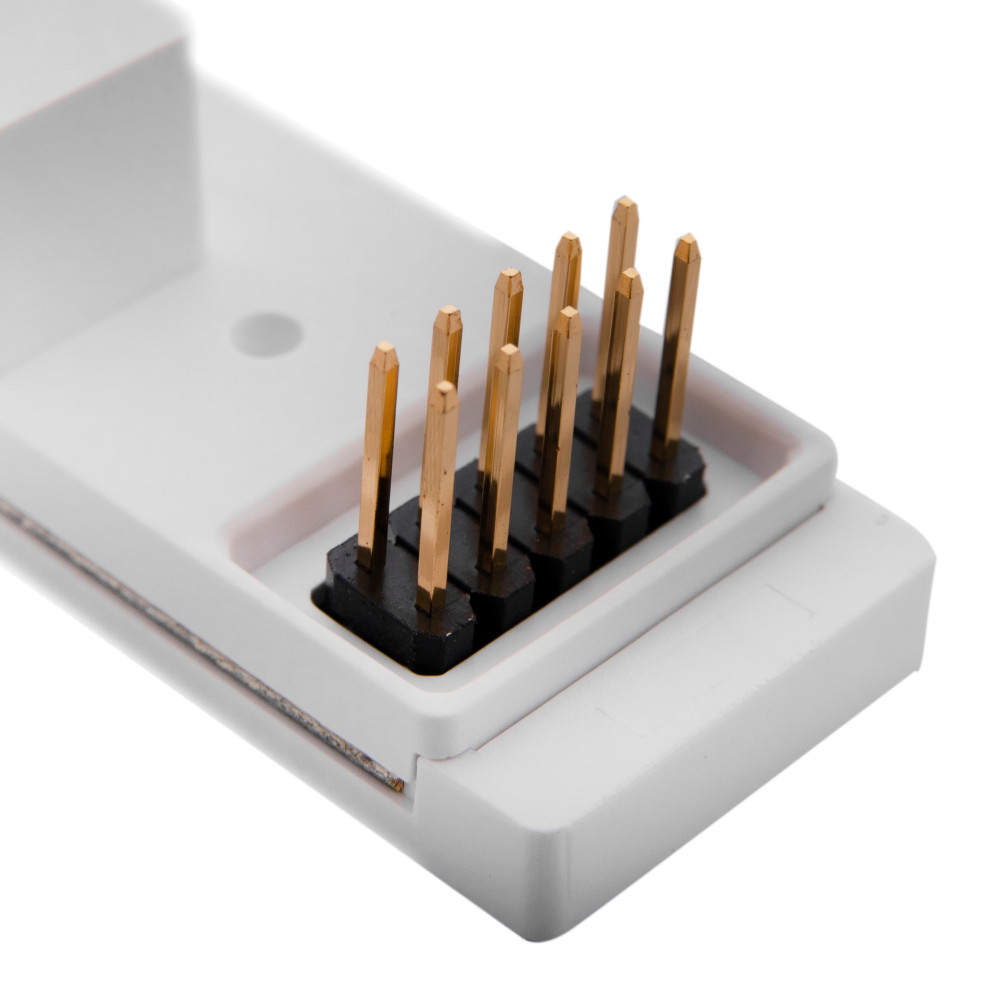

- Simply plugs into the back of the smoke or heat alarm
- Designed to help save time, costs and mess compared with hard-wire interconnection
Customer Reviews
FAQs
Technical Data
Customer Reviews (1)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewer
Anonymous
Published on
25th November 2017
Technical Data
| Product Code | EI100MRF |
|---|---|
| Brand | Ei Electronics |
| Manufacturer's Part Number | EI100MRF |
| Approvals & Markings | CE Marked |
| Back-Up Battery Type | Rechargeable Lithium |
| Colour | White |
| Compliance | (EMC) 301498-3 |
| (RF) EN300220-3 | |
| Connection | Wireless |
| Display | LED Indicators |
| Equipment Type | Accessories |
| Maximum Number of Linked Devices | 12 Devices |
| Operating Temperature | 0°C To +40°C |
| Product Range | EI160e |
| Radio Frequency Range | 100 Metres In Free Space |
| 30m Indoors | |
| Radio Linking Frequency | 868.499Mhz |
| Recyclable | Partially Recyclable |
| Relative Humidity | 15% To 95% |
| Warranty | 5 Years |
| Dimensions (Unit) |
|
| Weight | 235g |
| Datasheets |
Simple to install and set up.
I had bought a number of alarms to create a linked system using both wired and wireless links. I found I needed one more wireless alarm and was able to simply convert one by adding this module. My only criticism is that this cost quite a bit more than buying the original wireless units although they were supplied as a wired unit plus the same wireless unit which I had to install.
