Perko Concealed Door Closer - Rectangular Plate

Discontinued Product

This product has been discontinued.

alternative product

Astra 3003 Series Concealed Door Closers

  • Fixed power size EN 3
  • 60 minute fire rating
  • Adjustable closing speed and latching action
  • CE approval and tested to BS EN 1154
  • Available with rectangular or rounded plate

£150.23 inc VAT

£125.19 ex VAT

View Product
Product Overview

The Perko concealed fire door closer is ideal for use where an overhead door closer would be unsuitable or unsightly. Designed to be rebated into the door leaf, the cylinder body of the Perko closer is hidden when installed, leaving only the two attractive finish rectangular plates (joined by a chain mechanism) visible. The Perko concealed door closer is rated for use on 30 and 60 minute fire doors (when fitted with intumescent acrylic) and is tested to endure 500,000 closing cycles.

  • Unobtrusive - main body is hidden from view
  • Three high quality plate finishes: brass, chrome or satin chrome
  • Ideal where overhead door closers would be unsuitable
  • Spring loaded concealed fire door closers

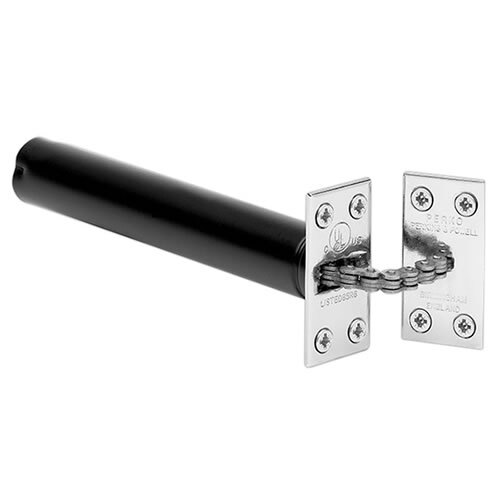

  • Features two rectangular face plates joined by a tension-adjustable spring chain mechanism
  • Suitable for use on FD30 and FD60 rated fire doors as an 'uncontrolled' door closer when fitted with intumescent acrylic adhesive

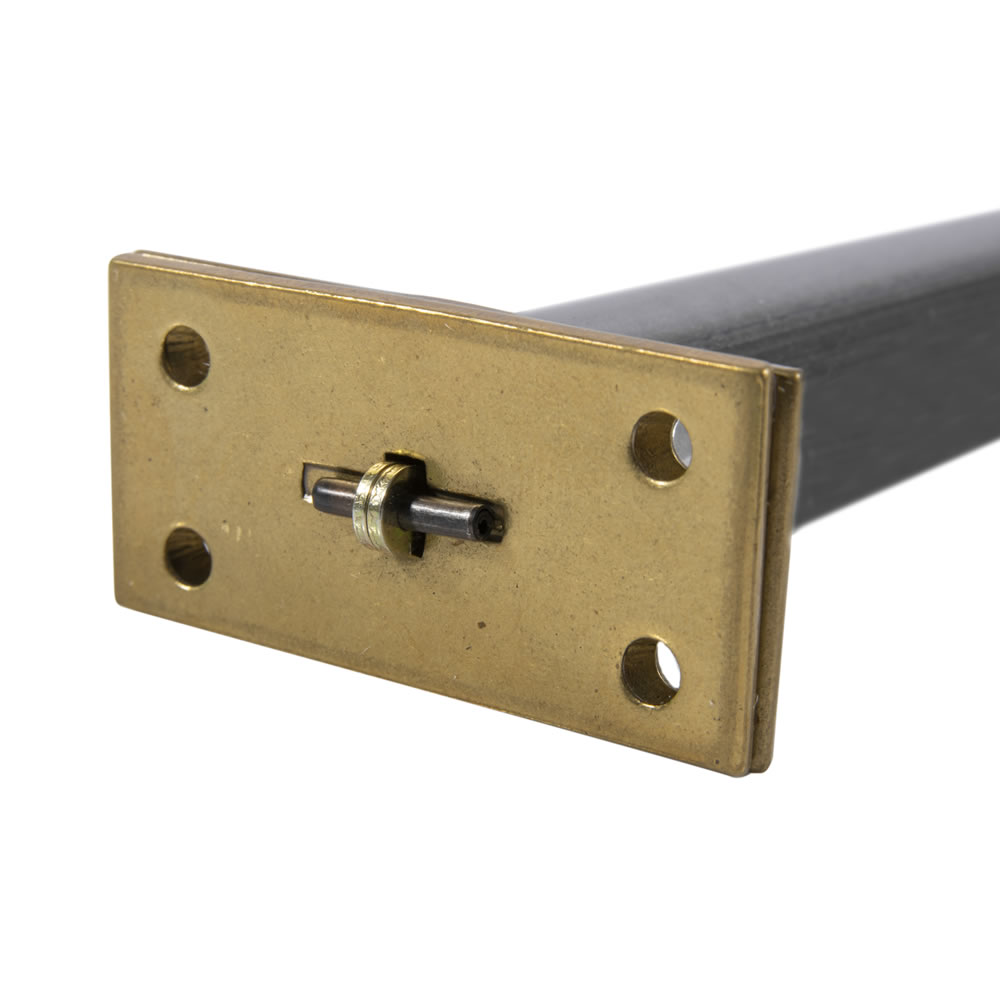

  • Rectangular plate design
  • Certified to BS 476: Part 20: 1987
  • Suitable for use on doors weighing up to 50.8kg
  • Tested to endure 500,000 closing cycles
  • Available to purchase with or without intumescent acrylic adhesive
  • Should be fitted by a competent joiner/craftsman
  • Anti-ligature design

Please Note: These door closers are classed as 'uncontrolled door closers' and as such may not be suitable for all new build projects. If you have been advised that a controlled door closer is required, then the Perko Powermatic Concealed Fire Door Closer is the ideal choice.

Technical Data
Product Code

Without Intumescent Acrylic, Brass:  SHR2PB

Without Intumescent Acrylic, Chrome:  SHR2CP

Without Intumescent Acrylic, Satin Chrome:  SHR2SCP

With Intumescent Acrylic, Brass:  SHR2PBAM

With Intumescent Acrylic, Chrome:  SHR2CPAM

With Intumescent Acrylic, Satin Chrome:  SHR2SCPAM

Brand Samuel Heath
Cylinder Diameter

22mm

Cylinder Length

150mm

Plate Dimensions (HxW)

51x25.4mm

Weight 0.20kg
