FireRay 5000 - Motorised Infrared Optical Beam Smoke Detector

FireRay 5000 - Motorised Infrared Optical Beam Smoke Detector
Write a review
Choose a product To see stock availability
From: £1,016.39 inc VAT
£846.99 ex VAT
Product Overview

The FireRay 5000 is a motorised, auto-aligning infrared optical beam smoke detector. Each kit includes a system controller, an optical beam smoke detector transceiver and a reflective prism. When installed, the FireRay 5000 optical beam detector projects a well-defined beam to the reflective prism, which returns the beam to the detector for analysis. An alarm signal is triggered when smoke enters the beam path. The FireRay 5000 is ideally suited for the protection of large areas where the use of traditional detection technologies would prove to be difficult and/or costly to install.

  • Approved to BS EN 54-12:2002
  • Protects large areas where traditional detection technologies are not suitable

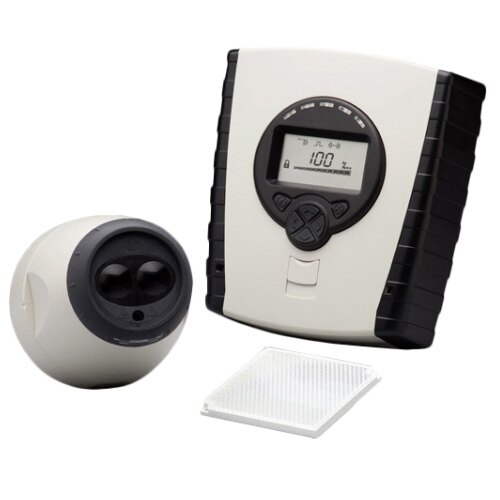

  • Each kit includes:
    • 1 x System Controller - wires into an existing fire alarm control panel
    • 1 x Optical Beam Smoke Detector - combined transmitter and receiver (transceiver)
    • 1 x Reflective Prism (50m version) or 4 x Reflective Prisms (100m version)
  • Transceiver projects a beam to the reflective prism which returns the beam to the transceiver
  • An alarm signal is triggered when smoke enters the beam path
  • Available in two version:
    • For a distance of up to 50m
    • For a distance of up to 100m
  • Features integral laser alignment aid
  • Automatic beam alignment: After the laser has been used to coarsely align the beam the system will take over and automatically align to its optimum position
  • Automatic contamination and building shift compensation: The beam will automatically be realigned to compensate for contamination and gradual building shift
  • Low level system controller monitors the detector and indicates the status of the protected area
  • Cost effective and quick to install
  • Approved by LPCB and the Construction Products Directive
  • Compliant with the requirements of RoHS and WEEE
Technical Data
Product Code

Infrared Optical Beam detector - 50M version:  FFFR5000/50M

Infrared Optical Beam detector - 100M version:  FFFR5000/100M

Brand Fire Fighting Enterprises
Cable Length

Controller to detector: 100m max. - 2 core cable

Dimensions (HxWxD)

System Controller (including base): 235x200x71mm

Beam Detector (including easy fit base): 134x135x134mm

Reflective Prism: 105x100x9.5mm

IP Rating

IP54

Operating Temperature

0 °C to +55 °C

Operating Voltage

14-36V

Relative Humidity

93%

Weight

FFFR5000/50M: 1.67kg

FFFR5000/100M: 1.67kg

Product Datasheets
FAQs (1)
Q. How many FireRay units will I need to install in my warehouse?
A.

The number of units that are required is dependant on each individual layout and area. The installation must be compliant with the BS5839 standard. Please call our customer service team for more information.

Pricing & Availability

Model Stock Price
Infrared Optical Beam detector - 50M version
Product Code: FFFR5000/50M
Stock Level:
Available for pre-order Expected dispatch: 23rd Dec
Price:

£1,016.39 inc VAT

£846.99 ex VAT

Infrared Optical Beam detector - 100M version
Product Code: FFFR5000/100M
Stock Level:
Available for pre-order Expected dispatch: 23rd Dec
Price:

£1,207.19 inc VAT

£1,005.99 ex VAT
