Exidor 9870 Electro-Magnetic Free-Swing Door Closer - Power Size EN 4
The Exidor 9870 Electro-Magnetic door closer is ideal where low opening forces are required, such as care homes, hospices and hospitals. This door closer offers a hold open fixed power EN 4 which, when fitted in swing free mode, allows the door to be opened with no resistance from the closer. The door closer is wired into the buildings fire alarm system, when an alarm is activated power is cut to the unit and the closer then shuts the door.
- Supplied with an adaptor which allows easy conversion from hold open to swing free mode
- Hold open function allows the door to stay open until the fire alarm activates or there is a power failure
- 24V DC input voltage - the closer should be wired into the fire alarm system by a qualified electrician

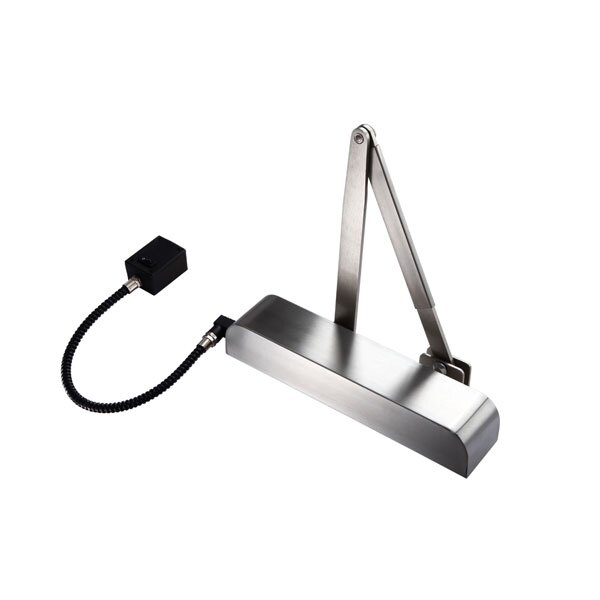

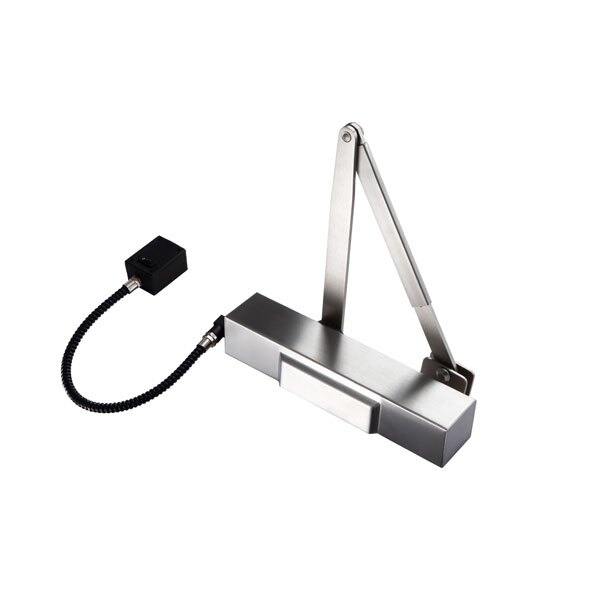

- Available with either radius or square cover

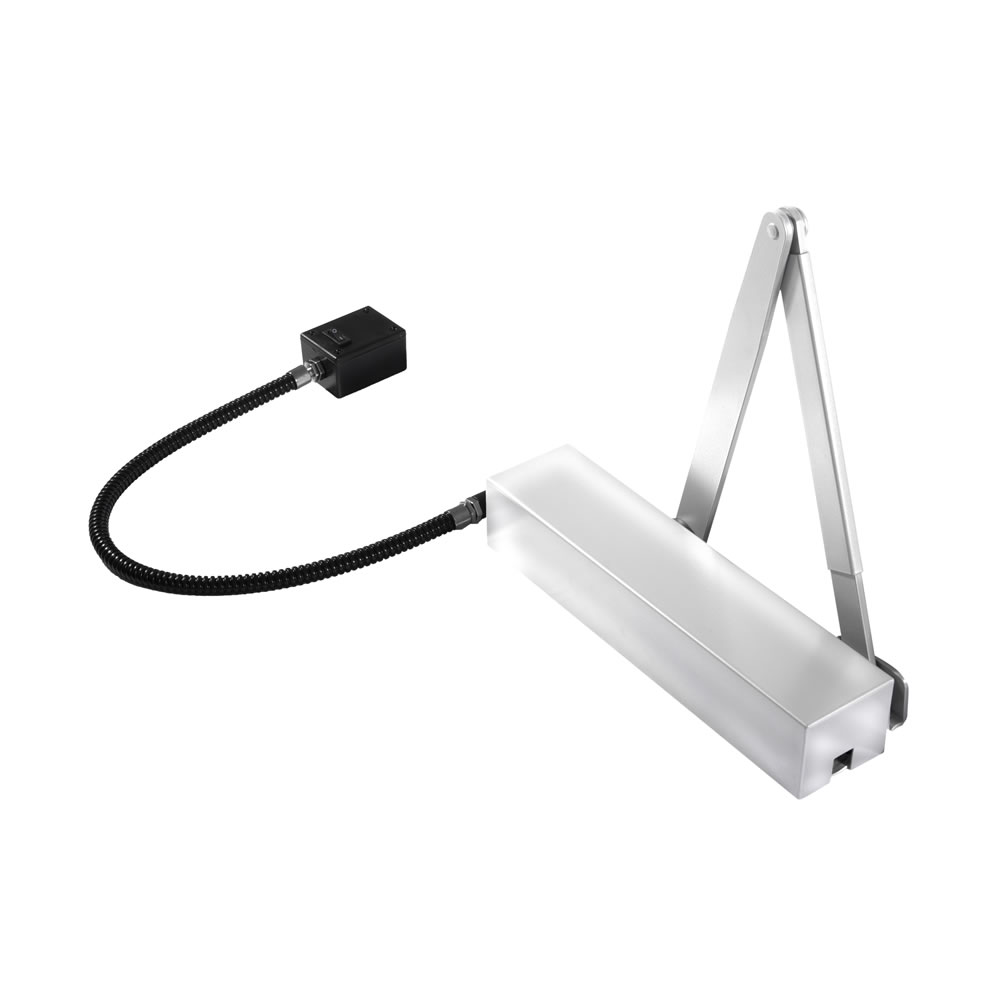

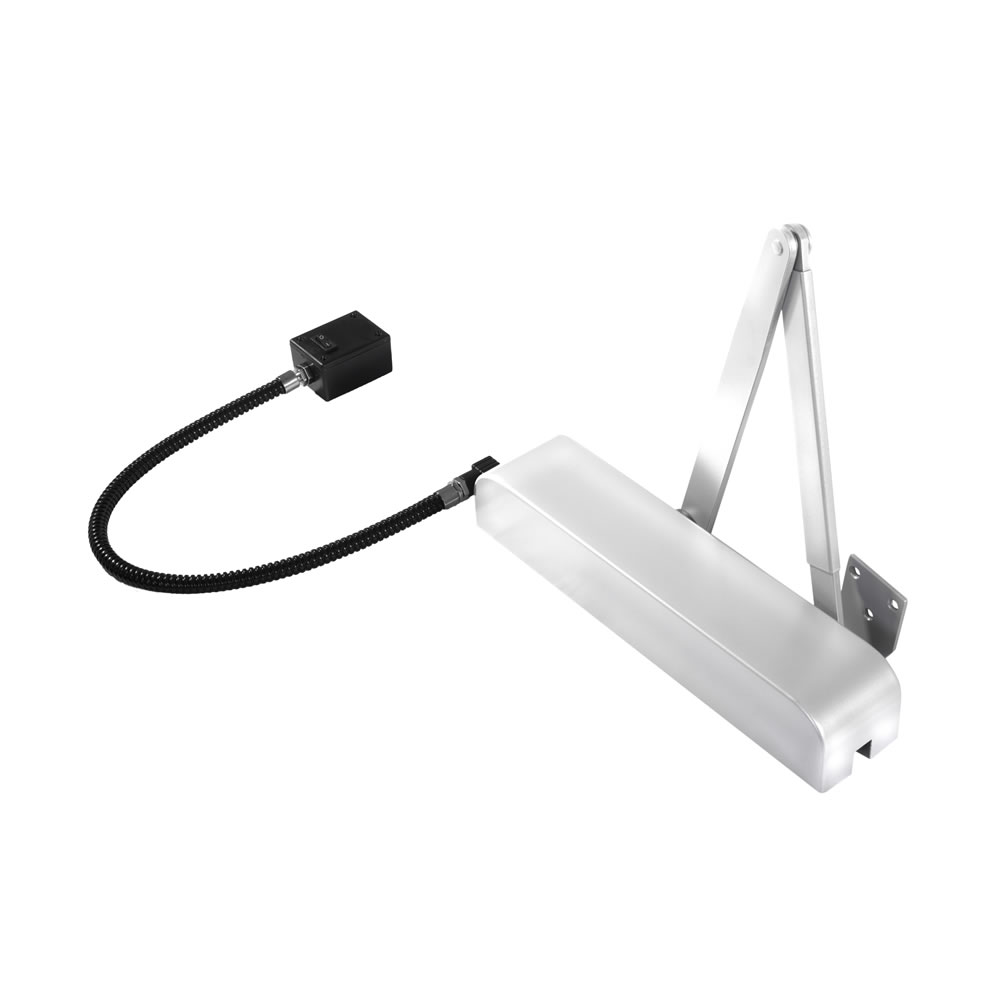

- Silver or satin stainless steel finishes available
- CE Marked and approved to EN 1155
- Certifire approved
- Capable of holding doors open up to 180°
- Fixed power size EN 4
- Suitable for use on doors up to 1100m wide and 80kg in weight
- Adaptable for push and pull side mounting - can be mounted in Fig 1, Fig 61 and Fig 66 positions
- Manufactured in the UK
- 2 year warranty
Please note: The unit is only covered under the warranty if it has been fitted in accordance to the fitting template and instructions
Customer Reviews (3)
Reviews by Real Customers
All of our product reviews are written by real customers that have purchased this product from us and are published without modification.
Reviewed by
A S
Published on
18th March 2025
Reviewed by
B B
Published on
9th October 2021
Good value for money, and easy to fit.
I have recommended Safelincs to a few people, there is a good choice of products ata reasonable price.
Reviewed by
T A
Published on
10th May 2021
as ordered
Technical Data
| Product Code | EXD9870SSQ |
|---|---|
| Brand | Exidor |
| Activation | Fire Alarm Signal |
| Closing Speed | Adjustable |
| Compliance | BS EN 1155 |
| Certifire - CF114 | |
| Approvals & Markings | CE Marked |
| Connection | Wired |
| Door Type | Single Door |
| EN Classification | 3 | 8 | 4 | 1 | 1 | 3 |
| Equipment Type | Free-Swing Closer |
| Hold-Open Door Closer | |
| Finish | Silver |
| Fixing Options | Wooden Door Fixings (Included) |
| Hold Open Angle | Any Angle |
| Installation Position | Fig 1 |
| Fig 61 | |
| Fig 66 | |
| Top Of Door | |
| Latching Action | Adjustable |
| Manufactured in the UK | Yes |
| Material | Metal |
| Maximum Door Weight | 80kg |
| Maximum Door Width | 1100mm |
| Opening Angle | 180° |
| Power Size | EN 4 |
| Power Type | 24V DC |
| Warranty | 2 Years |
| Dimensions (Unit) |
|
| Weight | 3.00kg |
| Datasheets |
