Dorma TS92 Overhead Door Closer with Slide Arm - Power Size EN 2-4 - From £140.39 inc VAT
CALL OUR TEAM NOW 0800 612 6537 Also FREE from UK mobiles

Dorma TS92 Overhead Door Closer with Slide Arm - Power Size EN 2-4

From: £140.39 inc VAT
£116.99 ex VAT
Product Overview

The Dorma TS92 overhead door closer has an adjustable power size of EN 2-4, making it suitable for a maximum door width of 1100mm. The closing speed and latching action can be adjusted easily with two separate valves located on the body of the closer. Available in two versions, the TS92 cam action door closer has a standard slide channel arm, with the option of an electro-magnetic hold-open function. Wired in to the building's fire alarm system, the electro-magnetic hold-open function allows the door to close when the system is activated, the power fails or when manually operated.

  • Suitable for use on single action doors
  • Certifire approved - CF119 certificate
  • 120 minute fire rating
  • CE marked and independently tested to BS EN 1154
  • 5 year warranty
  • Adjustable power size EN 2-4
  • Cam action overhead door closer with slide channel/track arm
  • Suitable for a maximum door width of 1100mm
  • Available in two versions:
    • TS92 - Standard Closer
    • TS92EMF - Closer with electro-magnetic hold-open function
  • Adjustable closing speed
  • Adjustable latching action
  • Designed for pull-side door leaf/push-side transom fixing

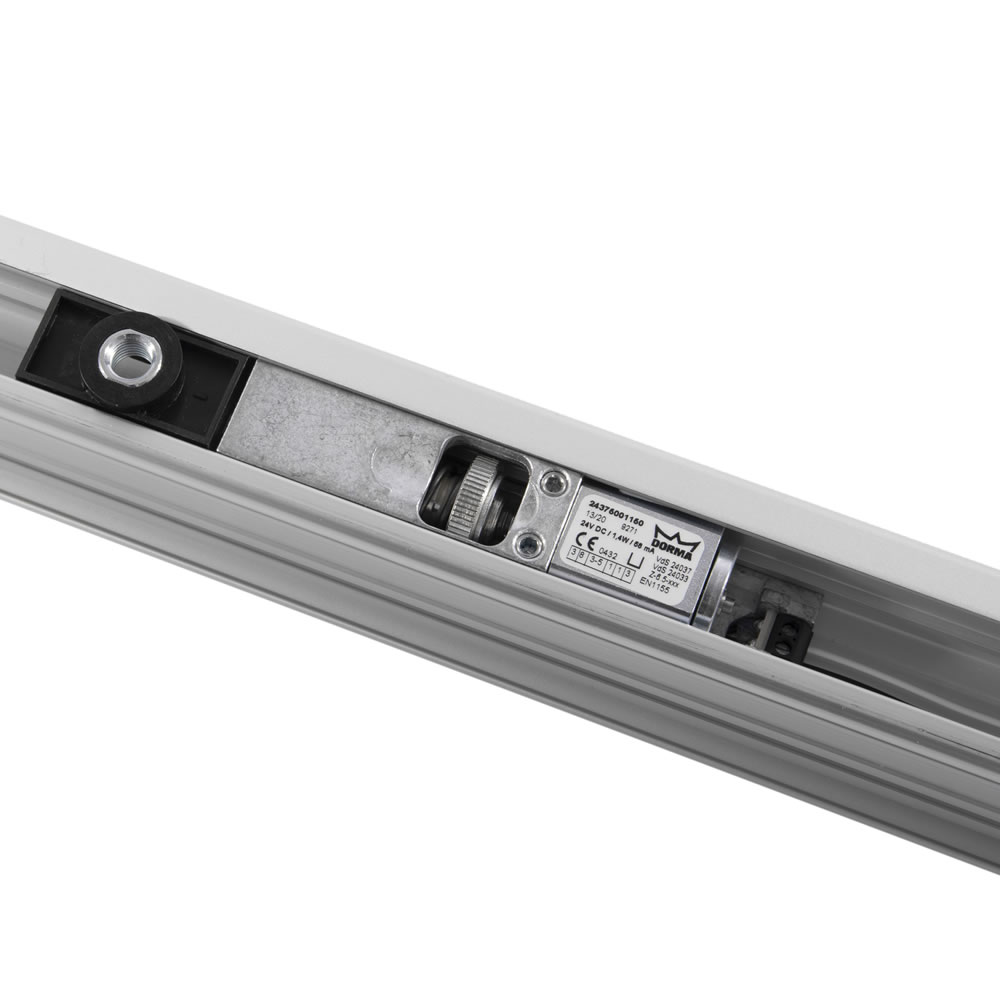

  • Electro-magnetic version holds the door open - wired in to the fire alarm system
  • Suitable for left and right handed doors
  • Supplied in a silver finish as standard
  • Door can be opened using a lower amount of force than with a standard rack and pinion closer
  • Full classifications:
    • TS92: 4 | 8 | 1-4 | 1 | 1 | 3
    • TS92EMF: 3 | 8 | 3-5 | 1 | 1 | 3
Technical Data

Technical Data

This is the technical data for the Dorma TS92 Overhead Door Closer with Slide Arm - Power Size EN 2-4.

Product Code
TS92 - Standard Closer DMTS92
TS92EMF - Closer with Electro-Magnetic Hold-Open DMTS92EMF
Weight 2.00kg
Dimensions (HxWxD) 65x281x47mm
EN Size Adjustable 2-4
Adjustable Closing Speed Yes
Adjustable Latching Action Yes
Hold-Open Electro-magnetic - TS92EMF model only
Classification TS92: 4 | 8 | 1-4 | 1 | 1 | 3
TS92EMF: 3 | 8 | 3-5 | 1 | 1 | 3

Product Datasheets

The following datasheets are available for this product.

Pricing & Availability

Model Stock Price
TS92 - Standard Closer
Product Code: DMTS92
Stock Level:
2 in stock Expected dispatch: 18th Jun

£140.39 inc VAT

£116.99 ex VAT

TS92EMF - Closer with Electro-Magnetic Hold-Open
Product Code: DMTS92EMF
Stock Level:
Available to order Expected dispatch: 24th Jun

£401.99 inc VAT

£334.99 ex VAT
