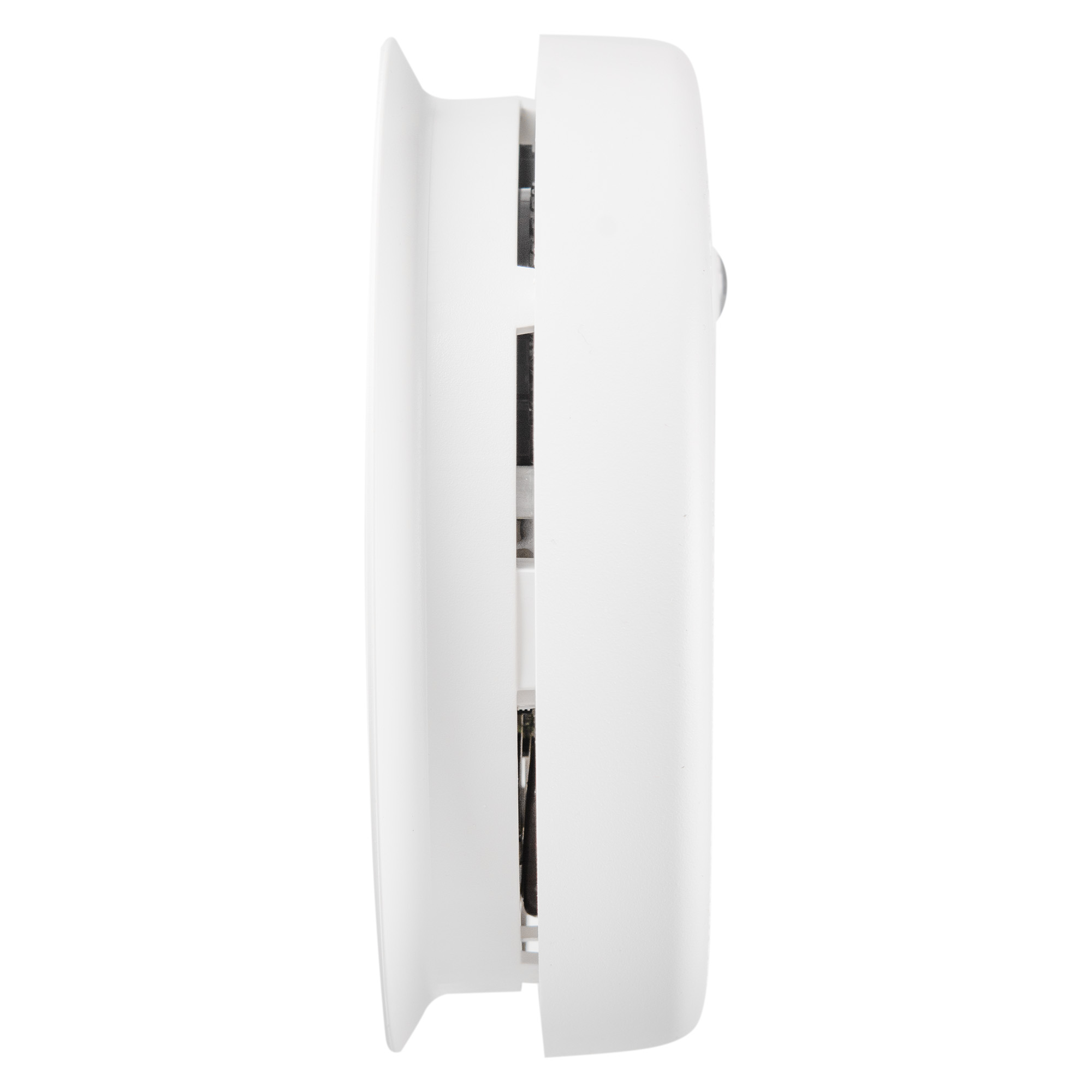

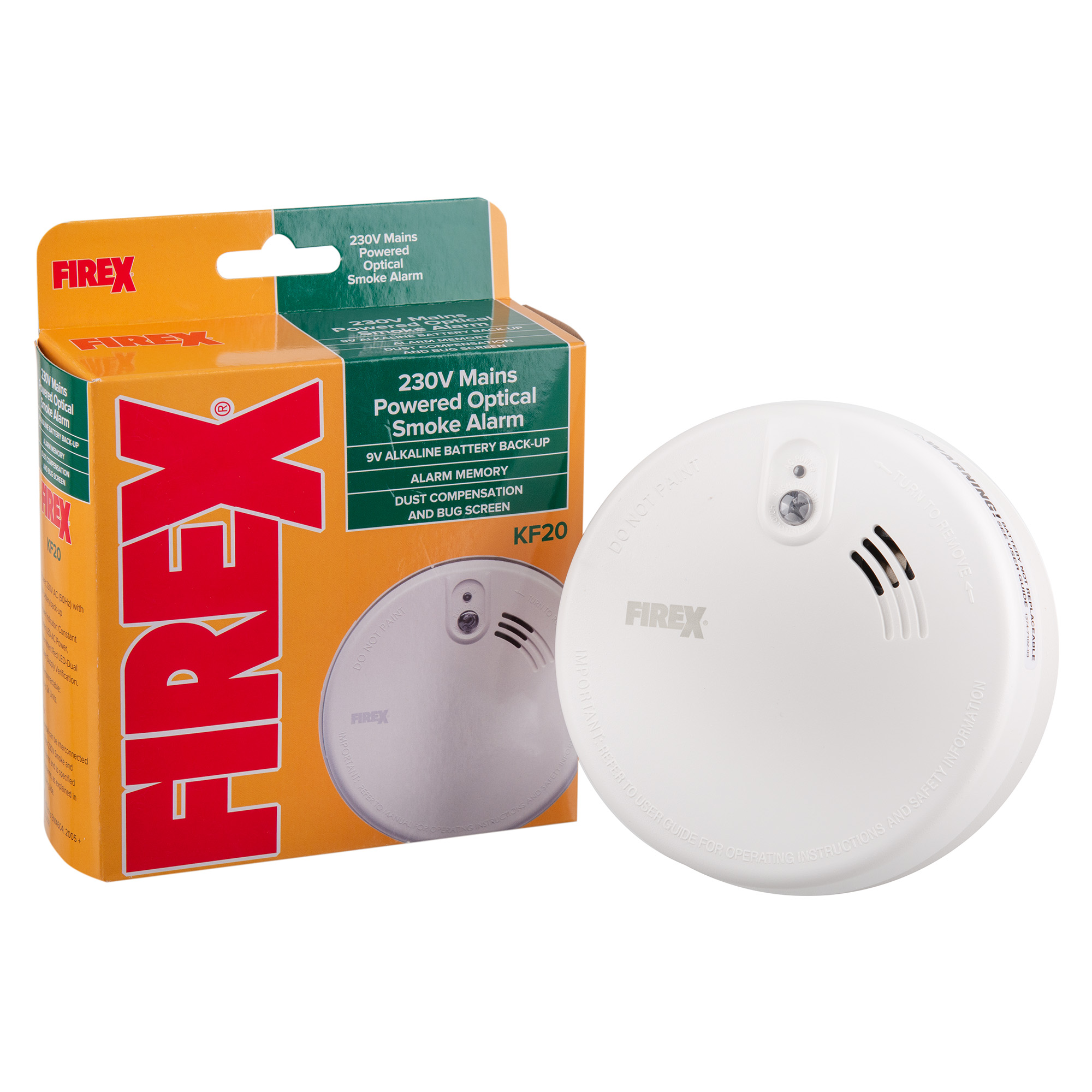

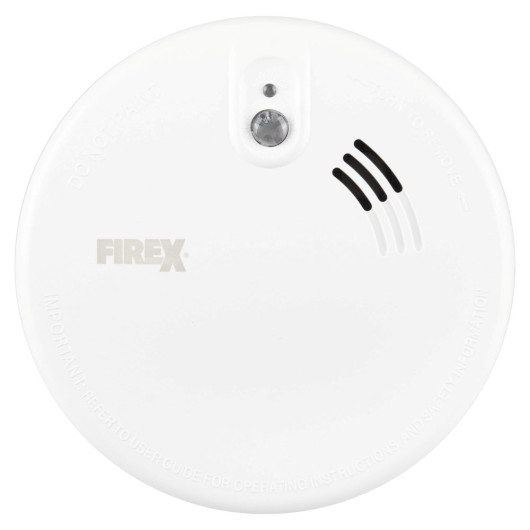

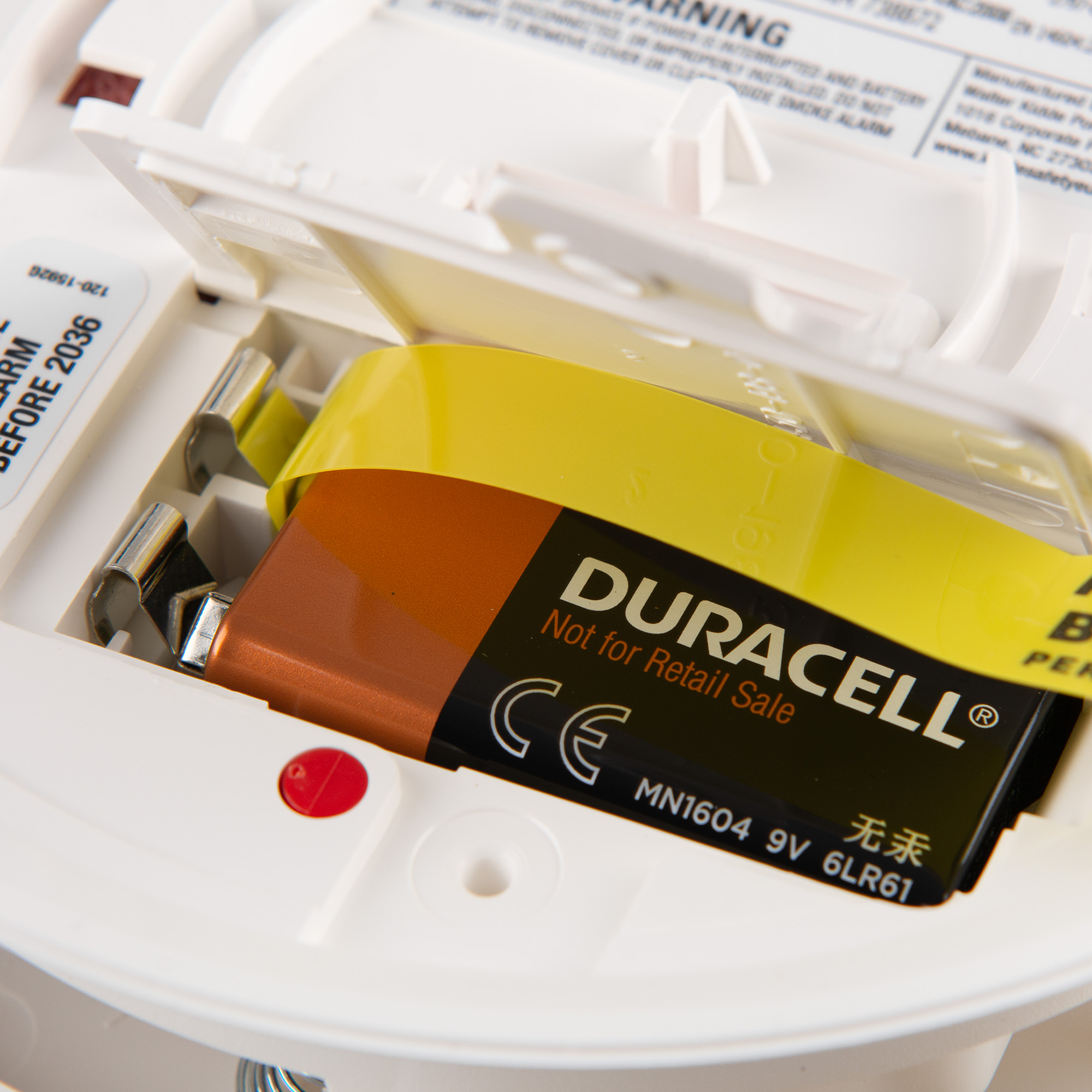

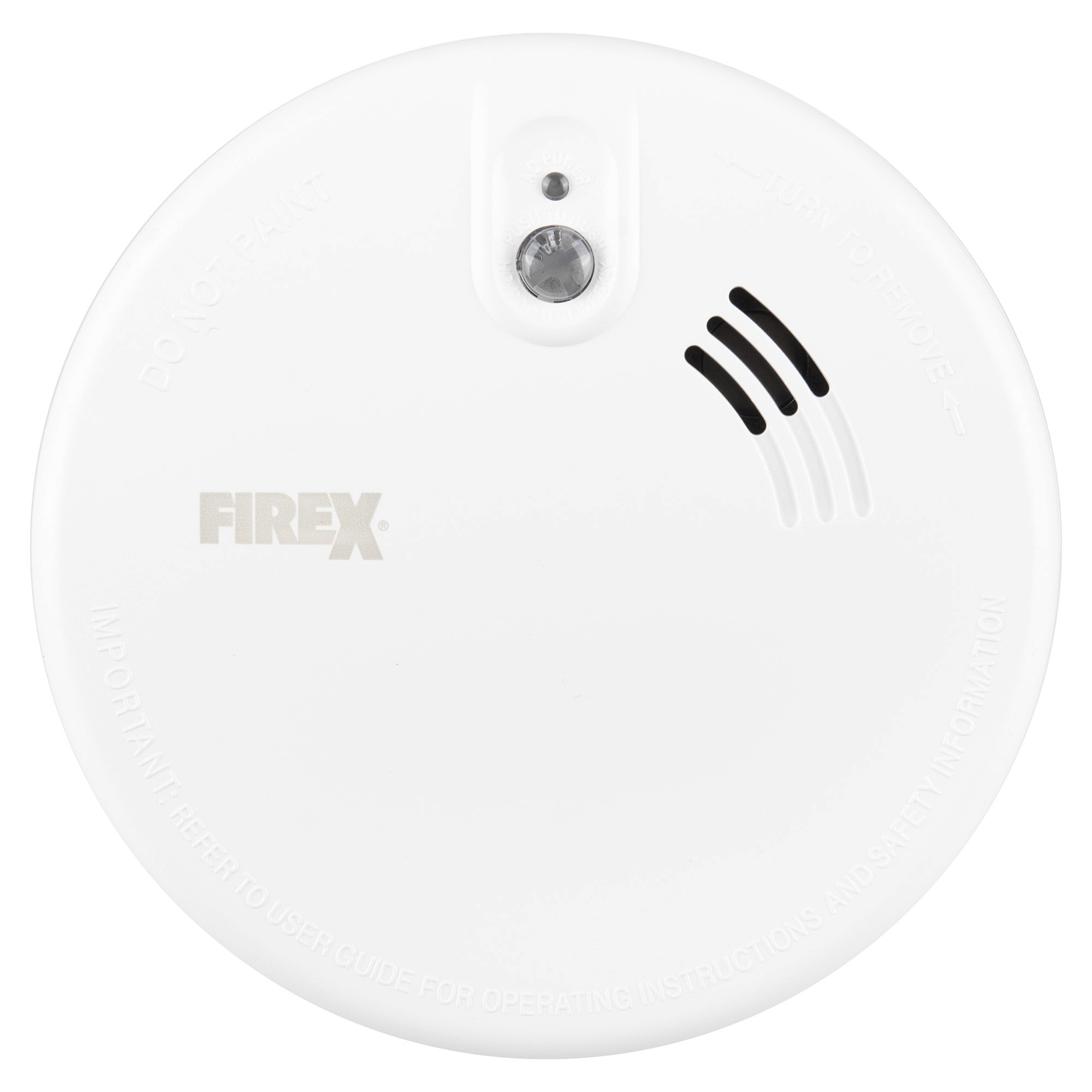

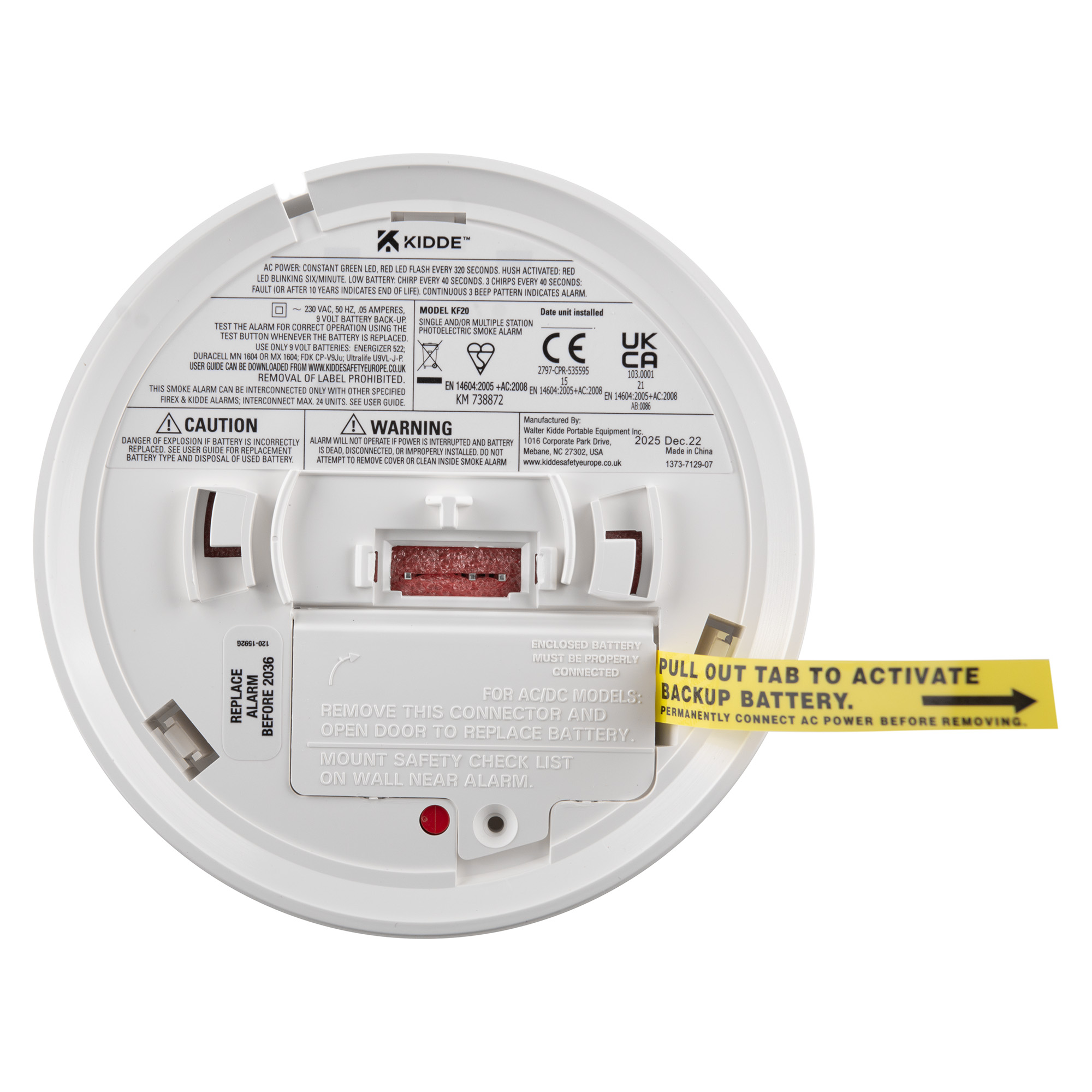

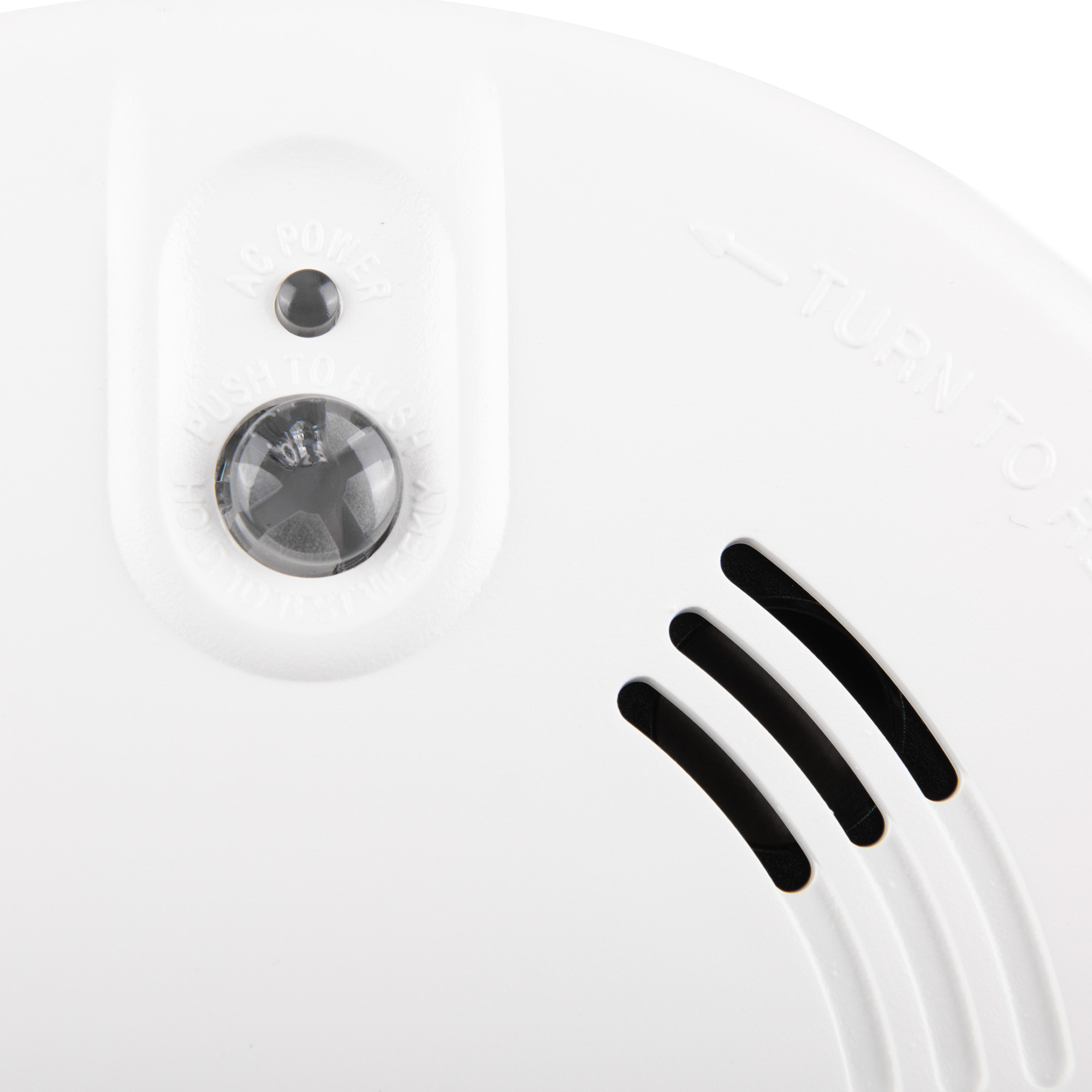

The Kidde Firex KF20 and KF20R alarms are a pair of mains powered optical smoke alarms that use up to 70% less energy than their predecessors and are capable of hardwire interlinking with up to 24 other compatible units. The KF20 is fitted with a replaceable alkaline back-up whilst the KF20R is fitted with a rechargeable lithium battery which is designed to last the life of the alarm.

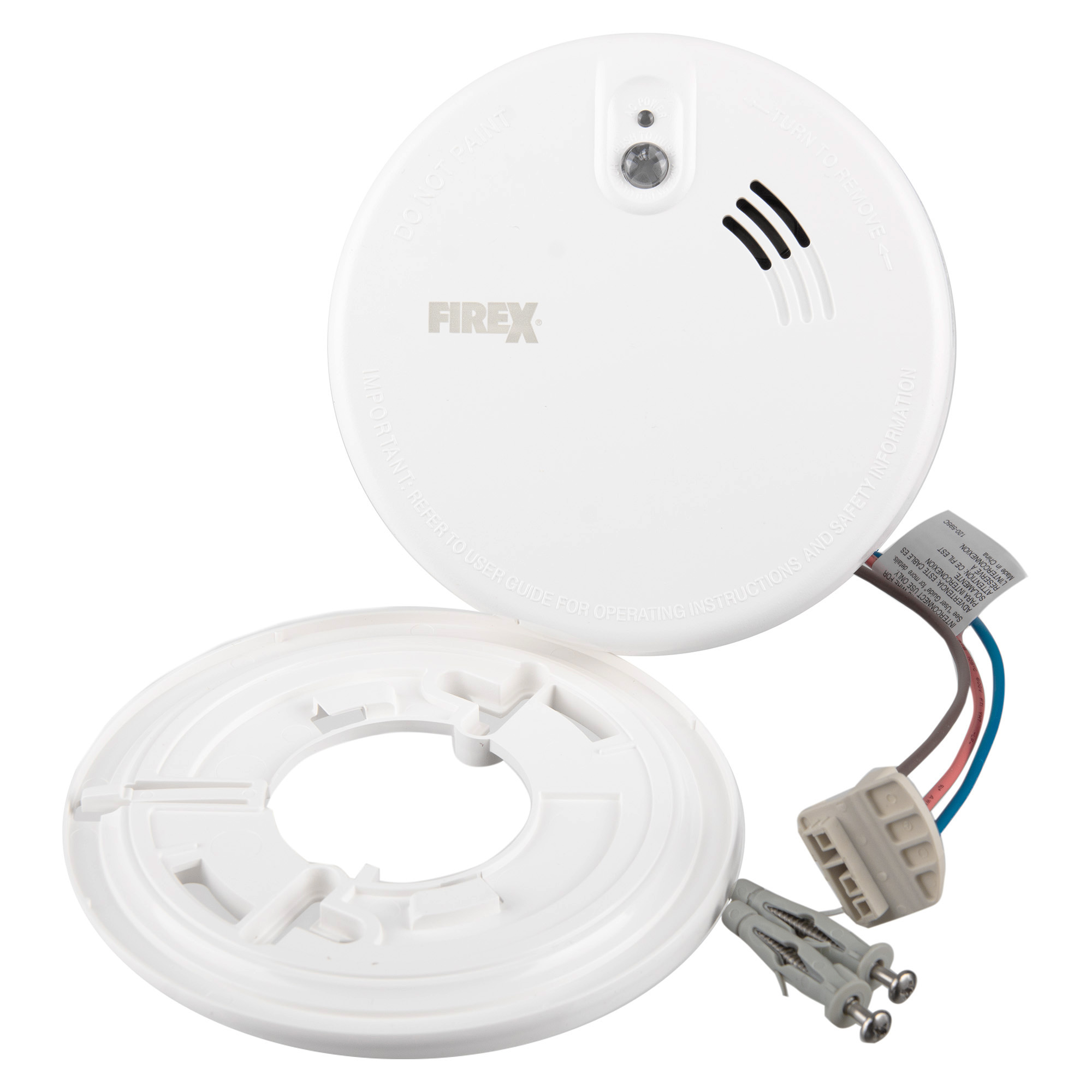

Please Note: The Kidde Firex KF20 (previously Kidde 4973 / KF2) and KF20R (previously Kidde 4985 / KF2R) are replacements for the Kidde 2239HI and 2239HILLs and can still be interlinked, however the new models cannot be used on the same base plates and use different connector blocks.
To make sure that all our reviews are real and accurate, we only allow customers that have purchased this product from us to write reviews.
No reviews have been written for this product yet.
If you have purchased this product from us and would like to write a review about it please complete the product review from. Please Note: to ensure the accuracy of our reviews you will need to provide a valid order number to leave a review.
Review this product now| Product Code | KEKF20 |
|---|---|
| Brand | Kidde |
| Back-Up Battery Type | Alkaline |
| British Standard Grade | Grade D2: Mains Powered (replaceable backup) |
| Colour | White |
| Local Legislation | Scottish Legislation (2022) |
| Welsh Legislation (2022) | |
| Approvals & Markings | CE Marked |
| Compliance | BS 5839-6 |
| BS EN 14604: 2005 | |
| Connection | Wired |
| Display | LED Indicators |
| Fixing Options | Screws (included) |
| Installation Position | Ceiling |
| Material | Plastic |
| Maximum Number of Linked Devices | 24 Devices |
| Operating Temperature | 0°C To +40°C |
| Positioning | Bedrooms |
| Hallways | |
| Living Rooms | |
| Power Type | Mains Powered (230V) |
| Product Range | Kidde Firex |
| Recyclable | Yes - Valpak's WEEE Distributor Take-back Scheme |
| Relative Humidity | Up To 93% |
| Sensor Type | Optical |
| Sound Level | 85dB |
| Suitability | Home |
| Warning Type | Audible - Alarm Sounder |
| Warranty | 6 Years |
| Dimensions (Unit) |
|
| Weight | 280g |
| Datasheets |
Alarms from the Same Series
The table below shows all the units that can interlink with the Firex KF Series.
| Model Number | Type of Unit | Type of Interlink |
| KF10 | Ionisation Smoke Alarm | Hardwire interlink |
| KF10R | Ionisation Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF20 | Optical Smoke Alarm | Hardwire interlink |
| KF20R | Optical Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF30 | Heat Alarm | Hardwire interlink |
| KF30R | Heat Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF1 | Ionisation Smoke Alarm | Hardwire interlink |
| KF1R | Ionisation Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF2 | Optical Smoke Alarm | Hardwire interlink |
| KF2R | Optical Smoke Alarm with Rechargeable Lithium Cell | Hardwire interlink |
| KF3 | Heat Alarm | Hardwire interlink |
| KF3R | Heat Alarm with Rechargeable Lithium Cell | Hardwire interlink |
Carbon Monoxide Alarms
| Model Number | Type of Unit | Type of Interlink |
| 4MCO | CO Detector with Rechargeable Lithium Cell | Hardwire interlink |
| K4MCO | CO Detector with Rechargeable Lithium Cell | Hardwire interlink |
Compatible Alarms
| Model Number | Type of Unit | Type of Interlink |
| 1239HI | Ionisation Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 1239HILL | Ionisation Smoke Alarm with Lithium Battery | Hardwire interlink |
| 2239HI | Optical Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 2239HILL | Optical Smoke Alarm with Lithium Battery | Hardwire interlink |
| 3239HI | Heat Alarm with Alkaline Battery | Hardwire interlink |
| 3239HILL | Heat Alarm with Lithium Battery | Hardwire interlink |
| 4870 | Ionisation Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 4881 | Ionisation Smoke Alarm with Lithium Battery | Hardwire interlink |
| 4973 | Optical Smoke Alarm with Alkaline Battery | Hardwire interlink |
| 4985 | Optical Smoke Alarm with Lithium Battery | Hardwire interlink |
| 4899 | Heat Alarm with Alkaline Battery | Hardwire interlink |
| 4892 | Heat Alarm with Lithium Battery | Hardwire interlink |
| I240C | Ionisation Smoke Alarm with Alkaline Battery | Hardwire interlink |
| PADC240 | Optical Smoke Alarm with Alkaline Battery | Hardwire interlink |
