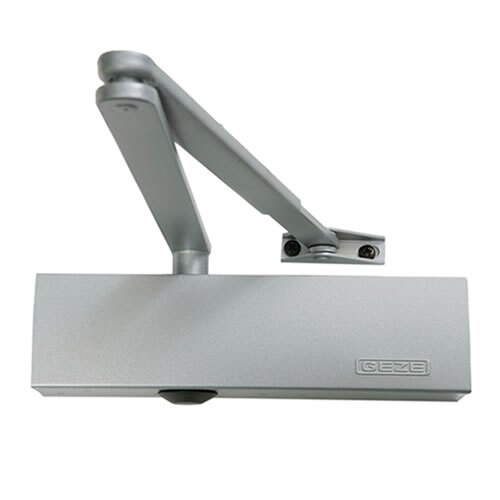

GEZE TS2000V Overhead Door Closer - Power Size EN 2-5

The GEZE TS2000V overhead door closer has a 120 minute fire rating and 10 year manufacturers warranty. With an adjustable power size of EN 2-5, the closer is suitable for use on doors with a maximum leaf size of 1250mm, and its adjustable latching action (TS2000BC version only) allows the closing speed during the last 15° to be tweaked for additional resistance. Its direct fitting template eliminates the need for a backing plate and comes supplied with universal fixing for push and pull side mounting. The GEZE TS2000V is suitable for internal applications.

• Suitable for use on Single Action doors
• Suitable for internal applications, although the TS2000BC is recommended for external application
• Certifire approved - CF252 certificate
• 10 year warranty
• Made in Germany
• BWF Certified
• Fire rating: FD120
• Direct fitting template - allows for a quick and easy installation and eliminates the need for a backing plate
• Maximum leaf width 1250mm (EN power size 2-5)
• Available in 2 versions:
  • TS2000V - standard overhead door closer with fixed latching action
  • TS2000BC - Overhead door closer with adjustable back check and latching action
• Universal fixing for push and pull side mounting
  • Can be mounted in Fig 1, Fig 61 or Fig 6 positions
• Adjustable closing force based on the position of the closer body
• Adjustable closing speed
• CE Marked to EN 1154,  EN 1158
• Full classification: 4 | 8 | 3-5 | 1 | 1 | 4 (when installed in power size EN 3 or higher)
