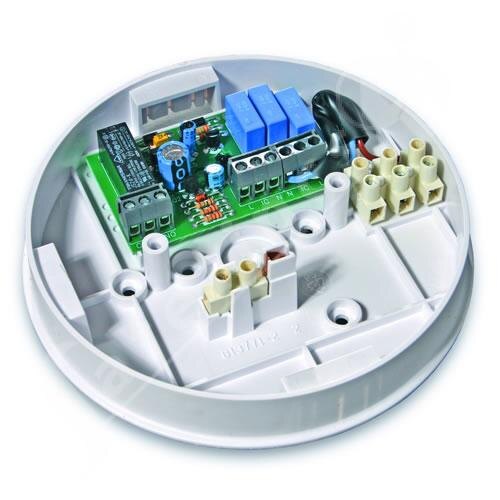

Surface Mount 230V Hardwire Relay with 5 Amp Output - Ei128R

More than 20 in stock Expected dispatch: Today
2 Customer Reviews
£34.31 inc VAT
£28.59 ex VAT
Product Overview

This surface mount relay connects to 230V mains power and interlinks with any hardwire alarm from Ei Electronics and Aico including the Ei140, Ei160e, Ei2110e, and Ei3000 series smoke and heat alarms. It is designed to fit directly under the base plate of these alarms and allows for surface-mounted installation on an uneven ceiling in conjunction with installations requiring a relay.

  • 230V mains powered
  • Connects to all Ei / Aico hardwire interlink alarms
  • Five year warranty
  • Simple attachment process for smoke and heat alarms to the unit
  • Features a 5 amp relay with switchable pulse option, for connection to remote devices
Technical Data
Product Code EI128R
Brand EI Electronics
Dimensions (HxDia)

21x141mm

Operating Temperature

0 to 40°C

Power Source

230V

Relative Humidity

0% to 90% Relative Humidity

Weight 0.16kg
Product Datasheets
FAQs (1)
Q. In our flats we have a smoke detector about 1.5 metres from the kitchen door which is normally open. When triggered, this calls the fire brigade. We need a smoke detector to be placed immediately above toasters, grills and microwaves with a normally closed relay 230V 5A that can be connected in series with the appliance. Can you supply.
A.

The Ei140 or Ei160 series of detectors are mains powered with a back up battery. For a kitchen area, it is recommended to install a heat detector as opposed to a smoke detector. This is because the heat detector is activated when the temperature inside the room reaches approx. 57degC, therefore it does not sound falsely when cooking fumes are present. When installing a heat detector, please note that this should be fitted centrally in the room and not directly above any cooking appliances. The steam from e.g. pans, kettles and toasters is hot and could activate the detector if it was installed directly above them. To connect the heat detector to an external device, you would need to use an Ei128R surface mount with 5amp relay. When the heat detector is triggered, the Ei128R signals ancillary devices.

Pricing & Availability

Model Stock Price
Product Code: EI128R Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£34.31 inc VAT

£28.59 ex VAT

Delivery Options

The following delivery options are available on this product.

Economy Delivery

£4.79 inc VAT - Orders will be delivered in 3-5 working days by Hermes

Express Delivery

£7.91 inc VAT - Orders will be delivered in 1-2 working days by Hermes

Customer Reviews

2 customers have given this product an overall rating of 5 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5 Stars

Reviewed by: J K

easy to fit and worked first time

Published on: 6th December 2016

Rating: 5 / 5 Stars

Reviewed by:

Published on: 6th January 2012
