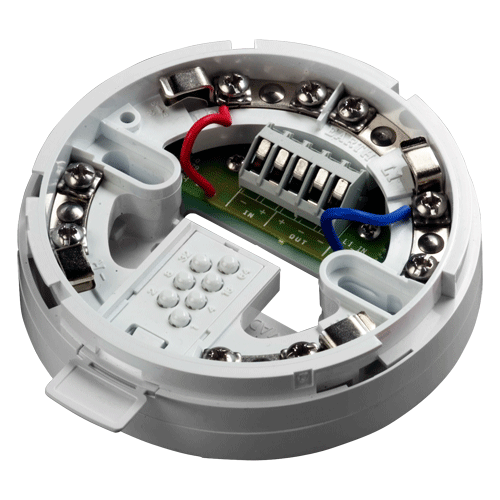

Apollo XP95 & Discovery Short Circuit Isolator with Base

The short circuit isolator with base is loop powered, polarity sensitive and features an XPERT card to set the device's address with the control equipment. It is designed for use with the XFP and Kentec addressable fire alarm panels and is used to detect and isolate short circuit faults on XP95 & Discovery loops. When a short circuit fault is detected, the integral yellow LED illuminates.

• Senses and isolates short circuit faults on loops
• Short circuit isolator supplied with a loop powered polarity sensitive base
• Base features an XPERT card to set the device address
• Designed for use as part of a XFP or Kentec addressable fire alarm panel system
• Suitable for indoor use only
• Power and signals to the affected section are restored when the short circuit fault is cleared
• The device associated with the base remains active during a short circuit
• Suitable for use with the following devices:
  • Apollo XP95 Ionisation Smoke Detector
  • Apollo XP95 Optical Smoke Detector
  • Apollo XP95 Heat Detector
  • Apollo XP95 High Temperature Heat Detector
  • Apollo XP95 Multisensor Detector
  • Apollo XP95 Loop Powered Beacon
  • Apollo Discovery Optical Smoke Detector
  • Apollo Discovery Heat Detector
  • Apollo Discovery Multisensor Detector
  • Apollo Discovery Ionisation Detector
• Self-extinguishing polycarbonate base with nickel-plated steel terminals
• Please note: On a single loop there must be a maximum of 20 devices between isolators
