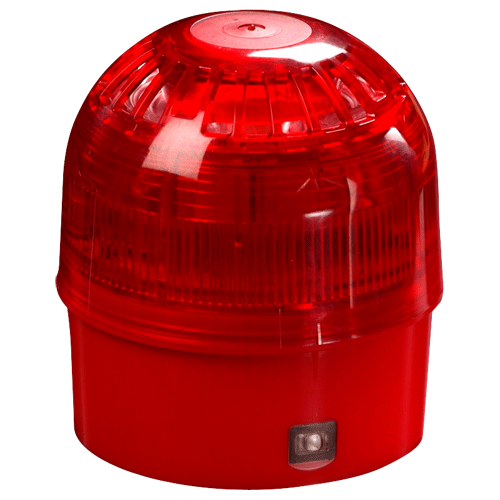

The XP95 open area sounder beacon is wall mounted and designed to work as part of a XFP or Kentec addressable fire alarm panel system. The sounder beacon is weatherproof (IP65 rated) and is supplied with a built-in isolator. The nominal sound output is 100dB; however the sound can be adjusted to 92dB using the volume control feature.
This is the technical data for the Apollo XP95 Open Area Weatherproof Sounder Beacon.
|Operating Voltage||17-28V DC|
|Operating Temperature||-10°C to +55°C|
|Sound Output||100dB (maximum)|
|Maximum Loop Current Consumption at 24V||Quiescent: 333µA
Switch-on Surge: 1.2mA for <1 sec
|Manufacturer Part Number||55000-005|
The following technical data sheets are available for this product:
|Product Code: FLAPXPWSB||
1 in stock
£43.99 ex VAT
£52.79 inc VAT
