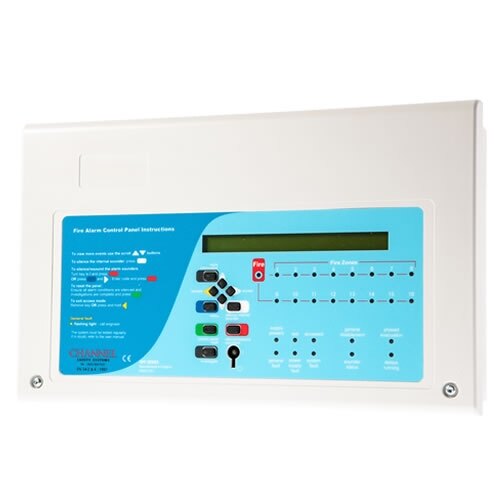

The XFP 16 zone networkable repeater panel acts as an additional central control unit for an addressable fire alarm system. The repeater panel is fitted with a network communication card as standard and up to 8 repeaters can connect to each main addressable panel.
This is the technical data for the XFP Networkable Repeater Panel - 16 Zones.
|Dimensions||Back box: 380x235x77mm
|Mains Supply||230V a.c. ± 10% 50/60Hz|
|Internal Power Supply||27V d.c. Nominal|
|Total Output Current||1.4A @230V a.c.|
|Max. no. of repeaters||8|
|Max. cable length per repeater network||500m|
|Manufacturer Part Number||XFP510-16|
The following technical data sheets are available for this product:
|Product Code: FLXFPR16||
Lead Time: 2–3 days
£249.99 ex VAT
£299.99 inc VAT
