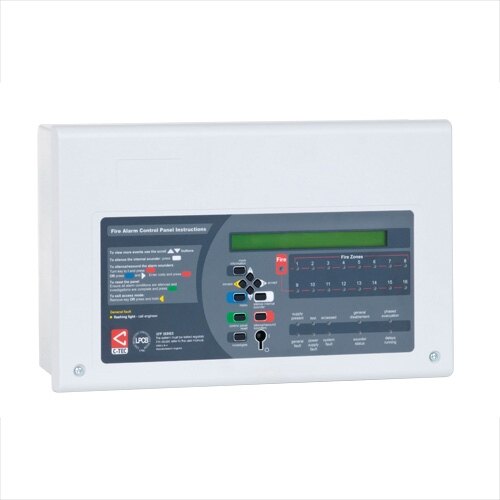

XFP Addressable Single Loop Panel - 16 Zone

Lead Time: 2–3 days
£339.99 ex VAT
£407.99 inc VAT
Product Overview

Addressable fire alarm panels are able to identify the exact detector or device which has activated the system or if a fault has been found. The XFP addressable single loop fire alarm panel features an LCD display which will indicate the name and location of the detectors in alarm condition. The single loop panel has 16 zones and a maximum number of 126 devices can be installed on the loop. Some large applications may require the facility to have more loops in the system. To achieve this, a maximum of 8 main XFP panels can be linked using communication cards to form a fire alarm network.

  • Designed to comply with EN 54 parts 2 & 4
  • Single loop addressable fire alarm panel with 16 zones
  • The panel can be surface or semi-flush mounted
  • Day/night function - engineer can change detector sensitivity
  • Records the number of times the panel has been in alarm
  • The single loop can hold a maximum of 126 devices
  • LCD display - provides detailed information of the system status
  • 40 characters available per device to customise to your requirements
  • Two programmable conventional sounder circuits
  • Three zone dependency functions
  • Key switch and key pad access
  • Investigation search times can be set before the panel reaches full alarm mode
  • 500 event monitoring
  • Fault output relay and three programmable relay outputs
  • Phased evacuation facility
  • Test, maintenance and commissioning functions
  • Compatible with Apollo XP95 and Discovery protocol
  • Can be connected with up to 8 XFP 16 zone repeaters
  • 16 zone panels can be networked using communication cards - a total of 8 main panels per network
  • Please note: The panel requires a 3.2Ah 24V back-up battery. These are sold separately.

Please note: Windows software is required to commission the fire panel. This is normally completed by the commissioning engineer; however the software can be purchased separately.
Technical Data

This is the technical data for the XFP Addressable Single Loop Panel - 16 Zone.

Product Code CSF/FW1001116
Weight 4.50kg
Number of Zones 16
Mounting Options Surface or Semi-flush
Mains Supply 230V ac 50/60Hz
Total Output Current 3A @ 230V ac
Max. Number of Devices per Loop 126
Approx. Dimensions of Back Box (HxWxD) 250x410x80mm
Approx. Dimensions of Lid (HxWxD) 274x439x7mm
Operating Temperature -5°C to +40°C
Relative Humidity Maximum: 95%
Manufacturer Part Number XFP501E/X

Technical Data Sheets

The following technical data sheets are available for this product:

Pricing & Availability

Model Stock Levels Price Weight
Product Code: CSF/FW1001116
Lead Time: 2–3 days

£339.99 ex VAT

£407.99 inc VAT

4.50kg
