Call Point Cover 'Stopper' Green STI 6530/G (for flush mounted call points)

This product has been discontinued

This product has been discontinued and is no longer available to buy. Please see our alternative product: Access Control Cover - Flush Universal Stopper STI 13010EG / STI 13020EG.

Product Overview

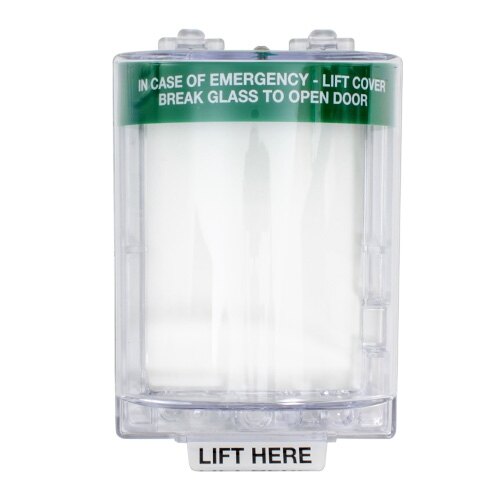

The STI 'Stopper' call point cover is designed to protect emergency exit release call points and switches, etc. Constructed from tough and durable polycarbonate, these covers carry a lifetime guarantee against breakage during normal use. Perfect for retrofitting over existing call points or switches and ideal for installation in schools, colleges, nursing homes and any other location that is required to provide emergency access controls.

  • Constructed from tough clear polycarbonate
  • Protects equipment from accidental operation, vandalism, product misuse, dust and weather
  • Lifetime guarantee against breakage in normal use
  • Easy installation, can be retrofitted over existing equipment
  • Dimensions (HxWxD): 197x105x57mm
  • Clear cover with green information panel
Additional Information
Fitting Instructions
  • Position the Stopper frame centrally over the device to be protected, and mark the position for the four fixing screws.
  • Drill the holes, assemble the frame and hinge mechanism and fit the Stopper with the wall fixings and screws provided.
  • If a surface spacer is included, ensure that the plastic lip of the spacer is pointing upwards. This will provide a base for the hinge (see diagram below).
  • Ensure the deactivation pin is removed from the alarm unit on those fitted with integral sounder. The pin should be retained, in the event any maintenance work is carried out.
  • The surface spacer provides cable entry facilities for conduit, cable and trunking. A 30mm depth spacer is supplied as standard. An optional 50mm spacer is available.
  • Where an optional weather gasket is positioned between the Stopper frame and spacer. Ensure the adhesive side of the weather gasket is fixed to the spacer and not the Stopper frame.
Technical Data

This is the technical data for the Call Point Cover 'Stopper' Green STI 6530/G (for flush mounted call points).

Product Code ST6530/G
Weight 0.40kg
Dimensions (HxWxD) 197x105x57mm
Case Material Polycarbonate
Colour Clear with green info panel
Manufacturer Part Number STI6530/G
