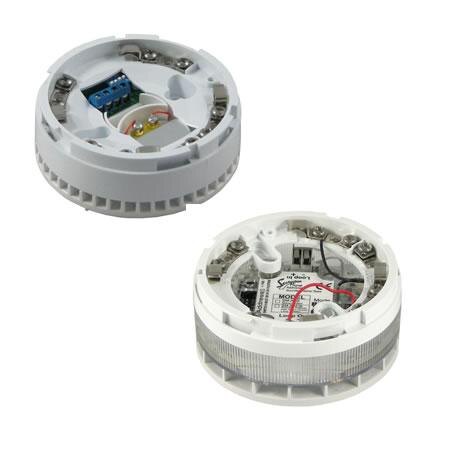

Securetone Addressable Sounder Base

This product has been discontinued
Product Overview
These addressable sounder bases are for use with the Simplicity Micro addressable fire alarm panel to be used in an addressable system.
  • IP43 Rating
  • Acts as an interface for the Fyreye conventional detectors - This can allow for considerable cost savings in locations where a sounder and detector are required.
  • Number of tones: 2
  • Operating voltage:17-33V DC
  • Operating temperature: 50C
Technical Data

This is the technical data for the Securetone Addressable Sounder Base.

Product Code GESM-ASB
Weight 0.10kg
Dimensions (HxDia) 44x100mm
Supply Voltage 17 - 33 V DC
Quiescent Current 1.2mA
Alarm Current @ 24V DC Addressable sounder base: 5.5mA
Operating Temperature 50C
Maximum Humidity 95% RH non condensing
Sound Output 84dB

Technical Data Sheets

The following technical data sheets are available for this product:

Pricing & Availability

Model Stock Levels Price Weight
Product Code: GESM-ASB
Product not found

25.43 ex VAT

30.51 inc VAT

0.10kg
