Double Door Emergency Pad Set with Latch & Bolt - Securefast

This product has been discontinued
Product Overview

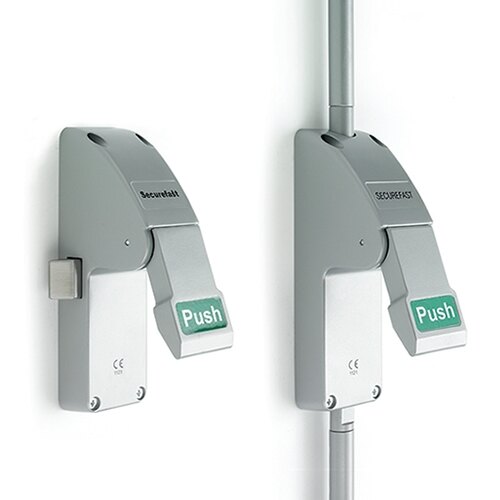

The Securefast double door pad set consists of 1 emergency latch and 1 emergency bolt. When both pads are pressed in an emergency, the latch and vertical bolt retract and release the double fire exit doors.  These devices are suitable for use where occupants of the building have been trained on how to use them for escape in the event of a fire. The double door emergency pad set can be used in conjunction with outside access devices.

  • Push pad hardware with latch and vertical bolt
  • Suitable for use on non-rebated and rebated double doors
  • Reversible - The bolt and latch can be mounted on either of the doors in the set
  • 10 Year Warranty
  • High resistance to corrosion
  • Fire Rated for Timber and Steel Doors EN 1634-1
  • Designed for buildings not used by members of the public
  • Available with optional hold-back (dogging device)
  • Comprises of:
    -   Securefast single emergency latch
    -   Securefast single emergency bolt
  • Vertical bolt can be cut to size
  • 2 point independent locking for additional security
  • Top and bottom shoots are fully adjustable with +5mm of adjustment for perfect alignment and operation
  • Supplied with cast universal latch strike
  • Silver anodised finish as standard
  • Suitable for doors up to 2500mm high and 1300mm wide
  • CE marked
  • Designed to comply with the requirements of BS EN 179:2008

For additional security on non-rebated double doors a double door emergency set with 2 bolts may be required.

Compatibility Overview

The table below shows the outside access devices that can be used in conjunction with the double door emergency pad set with latch and bolt from Securefast.

Model Number Type of Unit
SUSED990/SE/LE Securefast Lever Operated Outside Access Device
SUSED990/SE/KN Securefast Knob Operated Outside Access Device
SUSBL329SPSecurefast Outside Access Code Lock
SUSBL339SPSecurefast Outside Access Code Lock with Lever
Technical Data

This is the technical data for the Double Door Emergency Pad Set with Latch & Bolt - Securefast.

Dimensions (HxWxD) 180x55x98mm (each pad)
Door Suitability Timber and Steel
Warranty 10 year warranty

Technical Data Sheets

The following technical data sheets are available for this product:

FAQs (1)

Q. On the double door emergency pad set with latch and bolt, please could you tell me if the bolt would scrape the floor when the door is opened and on its return to closing?

A. As the top trip holds the bolt in the withdrawn position, no damage is caused to the carpet etc when the door is opened and closed.

Pricing & Availability

Model Stock Levels Price Weight
Without Hold-back
Product Code: SU993/4
Lead Time: 6–8 weeks

£63.39 ex VAT

£76.07 inc VAT

3.70kg
With Hold-back
Product Code: SU993/4HB
Lead Time: 6–8 weeks

£72.59 ex VAT

£87.11 inc VAT

3.70kg

Customer Reviews

3 customers have rated this product and it has an overall rating of 5 out of 5

All our reviews are written by real customers that have purchased this product from us and are publsihed without modification.

5 / 5 Stars

Reviewed by: -

EXactly what was needed for the job.

Published on: 23rd October 2012

5 / 5 Stars

Reviewed by: -

Published on: 6th August 2012

5 / 5 Stars

Reviewed by: -

Installation instructions made the product easy to fit! spot on!

Published on: 17th May 2012

Delivery Options

The following delivery options are available on this product.

Express Delivery

Delivered in 42-56 days by our specialist courier from £6.50 ex VAT - More info

Excellent Warranty

This product is supplied with a 10 year manufacturers warranty as standard
