Fire Safety Products

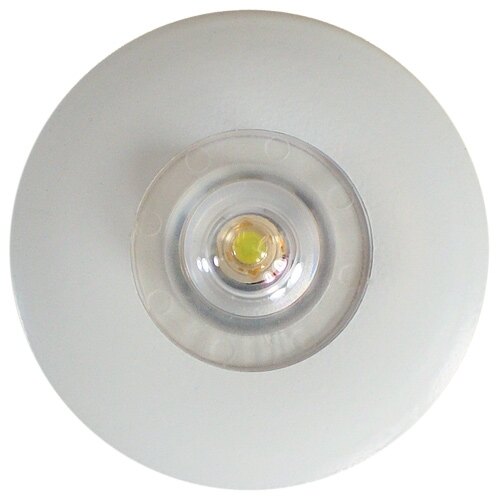

Recessed Switchable LED Emergency Lighting - MRDM
- Switchable Maintained / non-maintained operation units
- Switchable emergency lighting function
- Backup Duration: 3 hours
- White high output LED
- IP20 rated
- Recess mounted
- LED indicator
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Safelincs Exclusive 5 Year Warranty
- Available in silver and white finishes
- Three optional diffuser versions
- Standard diffuser
- Open Area diffuser
- Corridor diffuser
Please Note: Delivery on these units will be 1-5 working days from date of order
Typical Application
Typical applications for the MRDM switchable LED recessed down-lighter include installations in stately homes, commercial premises, historical buildings, offices etc.This is the technical data for the Recessed Switchable LED Emergency Lighting - MRDM.
| Power Consumption | 3W LED: 3W |
|---|---|
| Battery Type | 3.6V 4Ah NiMH |
| Light Output | 85 Lumens |
| Dimensions (HxDia) | Recessible Body: 35x40mm Fascia: 35x50mm |
This discrete recessed down-light is a complete and easy solution for LED mains and emergency applications. The MRDM range is designed to be used as a stand alone unit that is passed through a 40mm diameter cut out. Consisting of a module, battery pack and LED unit these components fit together with the non reversible connectors and are simply passed through the cut out into the void above. Available in either white or silver this unit is the ultimate in concealed emergency lighting and suitable for incorporation into an emergency lighting system complying with BS5266-1:2005.
Technical Specification
| |
Q.Can a switchable emergency light be on a PIR sensor?
A.Yes the fitting can be attached to a PIR, however the ballasts and lamps lifetime are reduced when you switch them on and off regularly on a PIR. The manufacturer recommends that if they are to be used on a PIR that they are switched on for the longest predefined time as possible.
Q.Will the control gear for the MRDM emergency light fit through the cut out?
A.Yes, the control gear and battery pack will fit through the cut out. The control gear is 150mm long x 15mm wide x 30mm high.
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
White Standard Diffuser Product Code: RL-MRD3M/3W |
In Stock
|
£129.99 inc VAT (£108.33 ex VAT) |
0.3kg |
|
Silver Standard Diffuser Product Code: RL-MRD3M/3W/SR |
In Stock
|
£129.99 inc VAT (£108.33 ex VAT) |
0.3kg |
|
White Open Area Diffuser Product Code: RL-MRD3M/3W/OA |
In Stock
|
£151.99 inc VAT (£126.66 ex VAT) |
0.3kg |
|
White Corridor Diffuser Product Code: RL-MRD3M/3W/CO |
In Stock
|
£151.99 inc VAT (£126.66 ex VAT) |
0.3kg |
|
Silver Open Area Diffuser Product Code: RL-MRD3M/3W/SR/OA |
In Stock
|
£151.99 inc VAT (£126.66 ex VAT) |
0.3kg |
|
Silver Corridor Diffuser Product Code: RL-MRD3M/3W/SR/CO |
In Stock
|
£151.99 inc VAT (£126.66 ex VAT) |
0.3kg |
