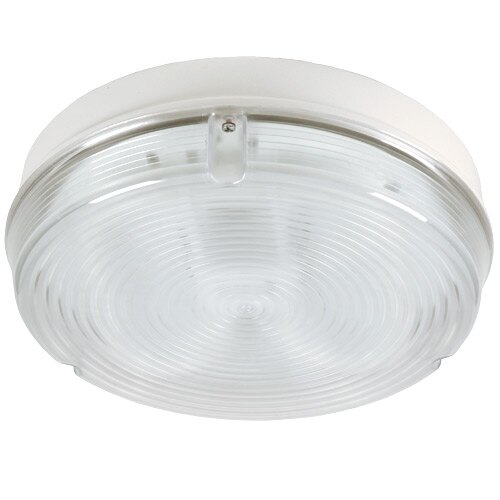

Circular High Output Emergency Bulkhead Light - ER

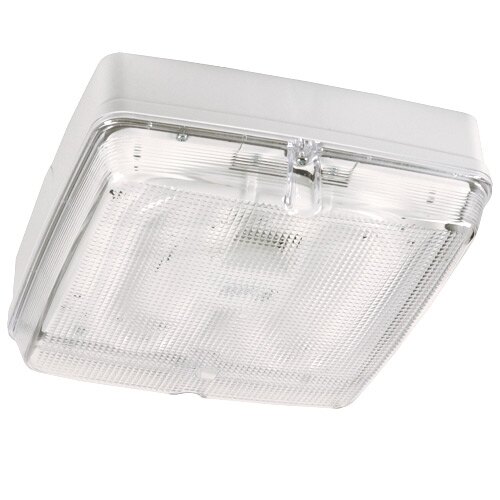

The ER emergency bulkhead light is suitable for internal environments. Available in square or circular options, the ER light fits in with most environments and is suitable for incorporation into emergency lighting systems complying with BS5266-1:2005.
- Maintained, non-maintained versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 205 Lumens
- IP42 Protection (weatherproof)
- Safelincs Exclusive 5 Year Warranty
- Clear diffuser
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for wall or ceiling mounting
- Also available in a non-emergency mains powered version
Please Note: Delivery on these units will be 1-5 working days from date of order
Typical Applications
Typical applications for the ER steel emergency bulkhead light include installations in reception areas, offices, factories, warehouses, stairwells, corridors etc.This is the technical data for the Circular High Output Emergency Bulkhead Light - ER.
| Lamp Type | 28W 2D |
|---|---|
| Power Consumption | Non-maintained: 9W Maintained: 39W |
| Battery Type | 3.6V 4Ah NiMH |
| Backup Duration | 3 Hours |
| Light Output | 205 Lumens |
| Dimensions (HxWxD) | Square Version: 275x275x75mm |
| Dimensions (HxDia) | Circular Version: 79x290mm |
The ER Light is a very useful, general purpose emergency luminaire for indoors and outdoors. Comprising of a moulded self extinguishing polycarbonate base fitted with a clear diffuser, suitable for use on escape routes (850 degrees C Hot-Wire test, defined by ICEL). The gear tray is easily removable to allow first fix of the base. Suitable for rear BESA entry or 20mm conduit entries.
The ER Light complies with the requirements of EN60598-2-22 and is suitable for incorporation into an emergency lighting system complying with BS5266-1:2005. The ER Light offers a cost-effective emergency lighting and mains lighting combo, and is ideal for areas where higher light levels are required.
|
|
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
Maintained Circular Product Code: RL-ER28M |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
1.8kg |
|
Non-maintained Circular Product Code: RL-ER28NM |
In Stock
|
£57.99 inc VAT (£48.33 ex VAT) |
1.8kg |
|
Maintained Square Product Code: RL-ERS28M |
In Stock
|
£81.99 inc VAT (£68.33 ex VAT) |
1.8kg |
|
Non-maintained Square Product Code: RL-ERS28NM |
In Stock
|
£81.99 inc VAT (£68.33 ex VAT) |
1.8kg |
