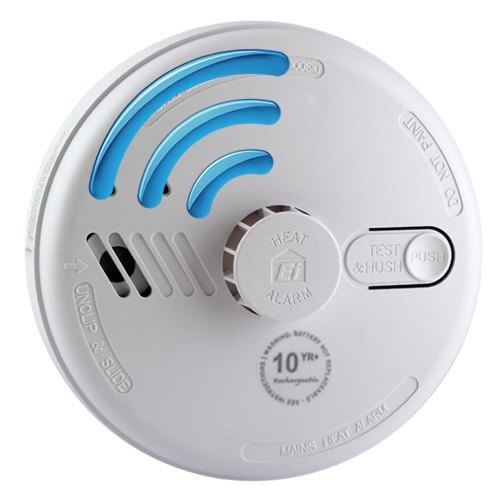

Mains Radio-Interlinked Heat Alarm with Lithium Back-up Battery - version of Ei164
- Mains powered radio-interlinked smoke alarms as a variation of the Ei164 heat alarm
- Each unit consists of a radio-frequency base-plate and the Ei164 heat alarm sensor
- Requires no cables between units
- Can be powered from the nearest light fitting
- Re-chargeable lithium battery backup guaranteed for 10 years
- 5 year warranty
- A maximum of 12 units can be interconnected
- Alarms that can be interconnected include:
- Ei168RC/Ei161, Ei168RC/Ei166, Ei168RC/Ei2110 - Fully conforming to BS 5839-6:2004 Grade D, E and F
- Kitemarked to BS EN 14604:2005
- CE marked
- With test and hush button
- LED display to show correct power supply
- Can be interlinked with optical and ionisation alarms
- Ideal for extensions and decorated properties.
- Can transmit up to 30m (larger distances can be achieved by using one unit as repeater)
| Model Number | Type of unit | Type of interconnection |
| Ei168RC/Ei161RC | Ionisation Smoke Alarm | Radio-interlinked using the Ei168RC base |
| Ei168RC/Ei166RC | Optical Smoke Alarm | Radio-interlinked using the Ei168RC base |
| Ei168RC/Ei2110 | Multi-sensor Smoke and Heat Alarm | Radio-interlinked using the Ei168RC base |
| Model Number | Type of unit | Type of interconnection |
| Ei605CRF, Ei605TYCRF | Optical Smoke Alarm | Radio-interlinked |
| Ei603CRF, Ei603TYCRF | Heat Alarm | Radio-interlinked |
| Model Number | Type of unit | Type of interconnection |
| Ei407 | Wireless Manual Call Point | Radio-interlinked |
| Ei410 | Hand Held Radio Frequency Remote Controller | Radio-interlinked |
| Ei411H | Wireless Locate, Hush and Remote test switch | Radio-interlinked |
This is the technical data for the Mains Radio-Interlinked Heat Alarm with Lithium Back-up Battery - version of Ei164.
| Product Code | EI168RC164RC |
|---|---|
| Weight | 0.42kg |
| Back-Up Battery | Rechargeable Lithium |
| Sound Output | 85dB (minimum) at 3m |
| Temperature Range | 0°C to 40°C |
| Humidity Range | 15% to 95% Relative Humidity |
| Dimensions (HxDia) | 62x150mm |
Technical Data Sheets
The following technical data sheets are available for this product:
Q. I have added an Ei168RC164RC wireless linked heat detector to my garage some time after the installation of various other wireless Ei160 detectors in the house. What do I have to do to get the system to recognise the new detector please?
A. To get the Ei168RC164RC to communicate with the existing alarms, you would need to housecode all the units again. Press the housecode button on the new Ei168RC base and on each of the existing units.
Q. How do you wire in the Ei140/Ei160 series of smoke alarms?
A. To wire the units correctly you would use 2 core and earth cable to the first unit and 3 core and earth to the interconnected units. The alarms do not have to be earthed but a brass screw connector is provided so that the earth can be safety terminated.
Q. Is it possible to have a heat alarm mains powered radio interlinking alarm interconnect with battery powered radio-interlinked alarms?
A. Yes this entirely possible. The Ei140 series with RF base is mains powered and these are compatible to interlink with the battery operated Ei3100 series. Please view the interconnection overview on either of these alarms for further details.
Q. How can we test the alarm to make sure it is working?
A. The manufacturer's recommendation is to test the alarm by pressing the test button. This will simulate a heat input at the heat sensor. You can also test it with a hair dryer but make sure that the hairdryer is kept away at a suitable distance from the alarm. Do not attempt to test the alarm by using open fire or excessive heat as this may damage the unit.
Q. Are there any restrictions to the distance a radio-interlinked smoke alarm will work?
A. Most radio-interlinked alarms have a range of 150 meters in an open space and up to 30 meters in buildings. The thickness of the walls and partitions will affect the travel distance of the signal. Most units can be set up as a 'repeater' which will increase the distance by a further 30 meters.
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
Mains Radio-Interlinked Heat Alarm with Lithium Back-up Battery - version of Ei164 Product Code: EI168RC164RC |
In Stock
|
£79.16 ex VAT (£94.99 inc VAT) |
0.42kg |
