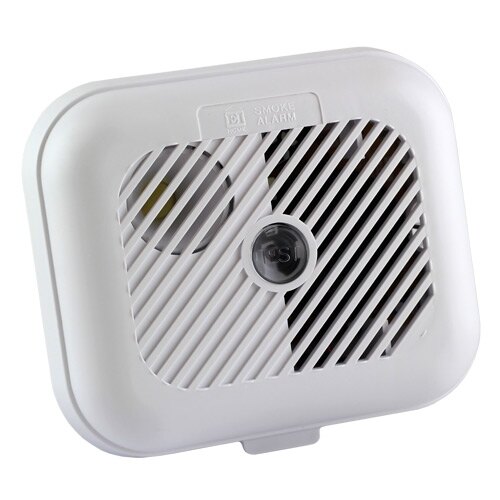

9V Interconnectable Ionisation Smoke Alarm - Ei100CNP
£9.99 inc VAT
(£8.33 ex VAT)

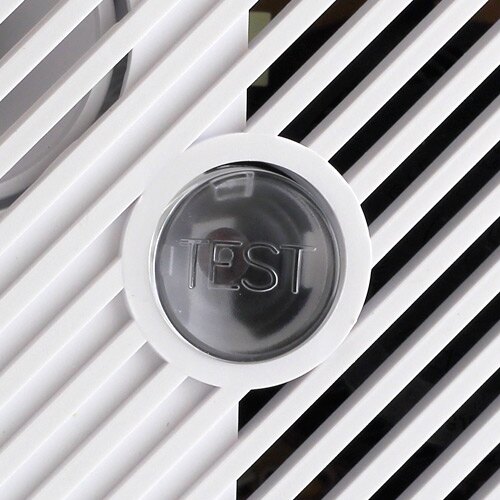

The Ei100CNP is an interconnectable ionisation alarm with a 'test' button that checks the functionality of the alarm.
- Battery operated smoke alarm (alkaline battery included)
- A maximum of 12 units can be interconnected via bell wire
- Alarms that can be interconnected include:
- Kitemarked to BS EN 14604:2005
- Fully conforming to BS 5839-6:2004 Grade F
- CE marked
- Optional longlife lithium battery upgrade
The table below shows all the units that can interconnect with the EI100CNP.
| Model Number | Type of unit | Type of interconnection |
| Ei100CNP | Ionisation Alarm | Hard wire interconnect |
| Ei103C | Heat Alarm | Hard wire interconnect |
| Ei105C | Optical Alarm | Hard wire interconnect |
| Ei100TYC | Ionisation Smoke Alarm with 10yr Battery | Hard wire interconnect |
| Ei3105TYC | Optical Smoke Alarm with 10yr Battery | Hard wire interconnect |
This is the technical data for the 9V Interconnectable Ionisation Smoke Alarm - Ei100CNP.
| Product Code | EI100CNP |
|---|---|
| Weight | 0.2kg |
| Dimensions (HxWxD) | 140x120x45mm |
| Battery Type | 9V Alkaline |
| Sound Output | 85dB (minimum) at 3m |
| Operating Temperature | 0 to 40°C |
| Humidity Range | 0% to 90% Relative Humidity |
Q.Is it possible to connect two smoke detectors Ei100CNP and a heat detector Ei103C using bell wire?
A.Yes, it is possible to connect the alarms using bell wire.
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
9V Interconnectable Ionisation Smoke Alarm - Ei100CNP Product Code: EI100CNP |
In Stock
|
£9.99 inc VAT (£8.33 ex VAT) |
0.2kg |
Customer Reviews
06/Mar/2012
Not Rated
03/Jun/2011
Good instructions, easy to fit/interconnect, work fine, good value for money
14/Oct/2010
The self ahesive patch I thought I'd ordered with the smoke alarm did not arrive. However I phoned and spoke to a very helpful woman who sent it on immediately free of cjarge.
03/Oct/2010
no problems easy to fit and test
01/Sep/2010
5 stars for construction looks and performance.
Sturdily built and looks very good in place. Passed all tests.
The back plate of the unit has one hole for the interconnection wire and not a lot of room for drilling another so I wasn't able to replace my units without filling twelve screw holes and repainting six patches on my ceilings.
There is a label which has to be pierced in order to slip the wires for interconnection through. The label very easily rips, don't rely upon it to keep out any dust or debris from a hole in a plaster ceiling that your wire pokes through.
