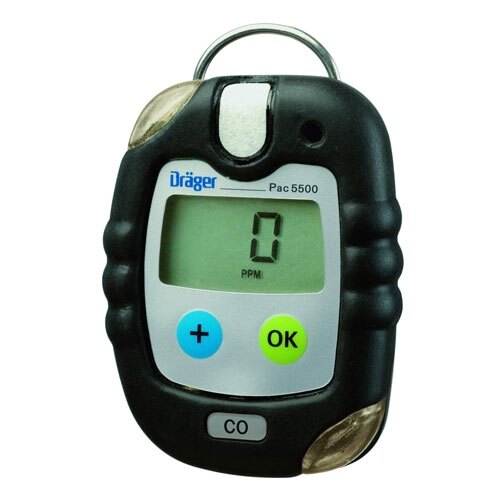

Dräger Pac 5500 Single Gas Detectors

From: £358.29 ex VAT
£429.95 inc VAT
Product Overview

Available with a carbon monoxide, hydrogen sulphide or oxygen sensor, the Dräger Pac 5500 single gas detector is designed for long term operation as the battery and sensor can be easily replaced. The Dräger Pac 5500 single gas detector is able to withstand tough environments, features a large LCD display to show the gas concentration level and the alarm threshold can be set by the user. As well as the main gas alarm, the detector will sound a low battery and fault warning.

  • ATEX, UL and IECEx approved and CE marked
  • No lifetime limitation - battery and sensor can be easily replaced
  • Ideal for personal monitoring applications
  • Three different gas sensors to choose from:
    • Carbon Monoxide
    • Hydrogen Sulphide
    • Oxygen
  • Easy to use single handed operation
  • Impact resistant rubber housing for tough environments
  • IP65 rated
  • Top and front gas intake to avoid inlet obstruction
  • Long 5-8 year sensor lifespan
  • Large language free LCD display can be back-lit for darker environments
  • Provides audible, visual and vibrating alarm when gas is detected
  • Emits pre and main alarms for gas detection and low battery warning
  • Alarm thresholds can be set by the user
  • Integrated data logger can store up to 60 events along with dates and times
  • Bump (function) testing of the detector is recommended
More Information

The table below shows the measuring range and response time data for the Dräger Pac 5500 single gas detectors.

Detector Measuring Range Resolution Response Time
Dräger Pac 5500 with CO Detection
0-500 ppm
1 ppm
15 seconds
Dräger Pac 5500 with H2S Detection
0-100 ppm
0.1 ppm
15 seconds
Dräger Pac 5500 with O2 Detection
0-25 Vol.-%
0.1 Vol.-%
10 seconds
Technical Data

This is the technical data for the Dräger Pac 5500 Single Gas Detectors.

Dimensions (HxWxD) 64x84x25mm
Operating Temperature -30 °C to +50 °C
Relative Humidity 10% to 90%
Alarm Condition Visual: 360° flashing LEDs
Audible: Multi-tone >90dB at 30cm
Vibrating:
IP Rating IP65
Lifespan No lifetime limitation
Battery Life CO & H2S detectors: >2 years at 25 °C
O2 detector: >12 months

Technical Data Sheets

The following technical data sheets are available for this product:

Pricing & Availability

Model Stock Levels Price Weight
Pac 5500 with Hydrogen Sulphide Detection
Product Code: DR5500H2S
Lead Time: 5–10 days

£318.69 ex VAT

£382.43 inc VAT

0.20kg
Pac 5500 with Carbon Monoxide Detection
Product Code: DR5500CO
Lead Time: 5–10 days

£358.29 ex VAT

£429.95 inc VAT

0.20kg
Pac 5500 with Oxygen Detection
Product Code: DR5500O2
Lead Time: 5–10 days

£358.29 ex VAT

£429.95 inc VAT

0.20kg

Delivery Options

The following delivery options are available on this product.

Express Delivery

Delivered in 5-10 days by our specialist courier from £6.50 ex VAT - More info
