Dorma TS93 Overhead Door Closer with Slide Arm - Power Size EN 2-5

From: 188.99 ex VAT
226.79 inc VAT
Product Overview

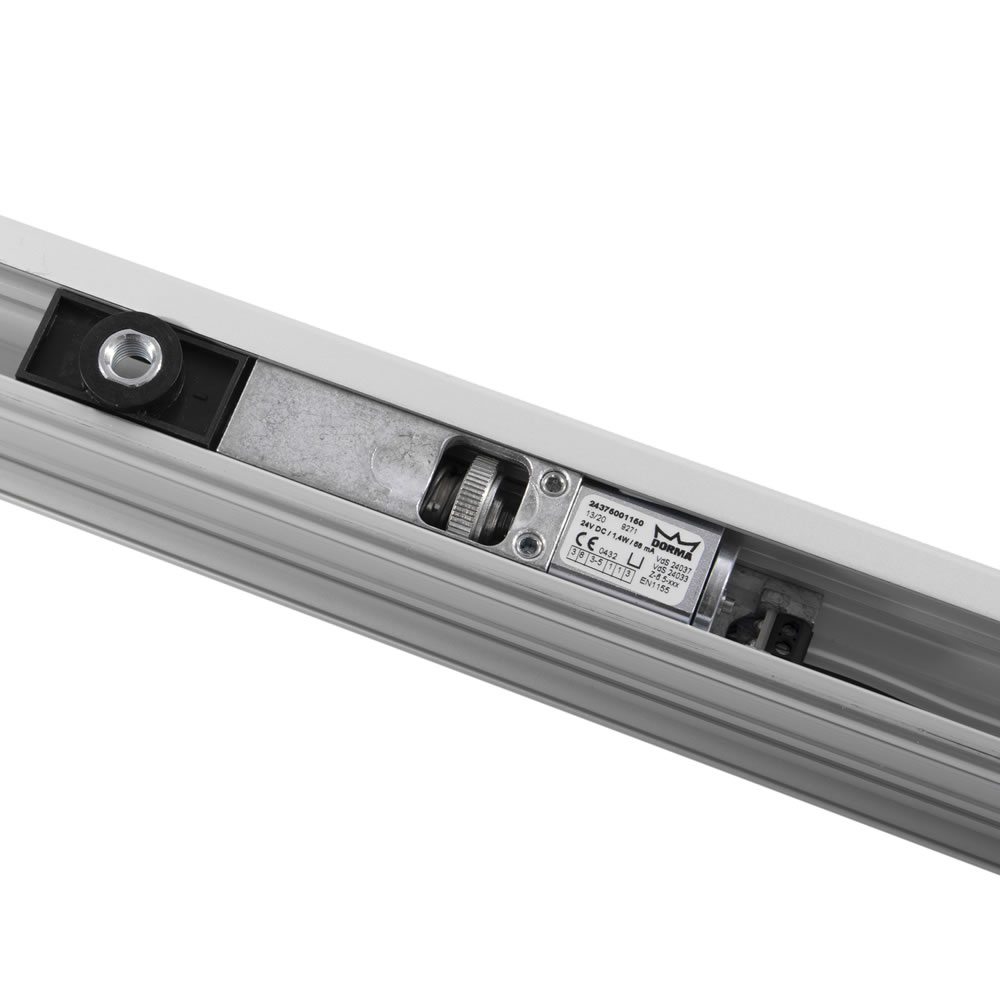

Suitable for doors up to 1250mm wide the Dorma TS93 overhead door closer has a slide channel arm, and cam action operation which allows the door to be opened with minimal force. The standard model has adjustable back check and delayed close capability, whereas the electro-magnetic unit is wired in to the fire alarm system and holds the door open at an opening angle of between 80 and 120. The Dorma TS93 closer has an adjustable power size of EN 2-5 and is designed for pull-side door leaf/push-side transom fixing.

  • Suitable for use on single action doors
  • Certifire approved - CF119 certificate
  • CE marked
  • Independently tested to EN 1154
  • 5 year warranty
  • Adjustable power size EN 2-5
  • Suitable for a maximum door width of 1250mm
  • Non-handed - can be used on left and right handed doors
  • Cam action overhead door closer with slide channel/track arm
  • Two versions available:
    • TS93BCDC - standard closer
    • TS93EMF - closer with electro-magnetic hold-open function
  • Standard closer features adjustable back check and delayed close capability
  • Electro-magnetic closer holds the door open and is wired in to the fire alarm system
  • Both models have an adjustable closing speed and latching action
  • Designed for pull-side door leaf/push-side transom fixing
  • Cam action design allows for the door to be opened using a low amount of force
  • High quality silver finish
Technical Data

This is the technical data for the Dorma TS93 Overhead Door Closer with Slide Arm - Power Size EN 2-5.

Dimensions (HxWxD) 60x275x53mm
EN Size Adjustable 2-5
Adjustable Closing Speed Yes
Adjustable Latching Action Yes
Adjustable Back Check Yes - TS93BCDC model
Adjustable Delayed Closing Action Yes - TS93BCDC model
Hold-Open Electro-magnetic - TS93EMF model

Data Sheets

Pricing & Availability

Model Stock Levels Price Weight
TS93BCDC - Standard Closer
Product Code: DMTS93BCDC
Stock Level:
Lead Time: 3–5 days
Price:

188.99 ex VAT

226.79 inc VAT

Weight:
3.50kg
TS93EMF - Closer with Electro-Magnetic Hold-Open
Product Code: DMTS93EMF
Stock Level:
Lead Time: 3–5 days
Price:

374.49 ex VAT

449.39 inc VAT

Weight:
3.50kg
