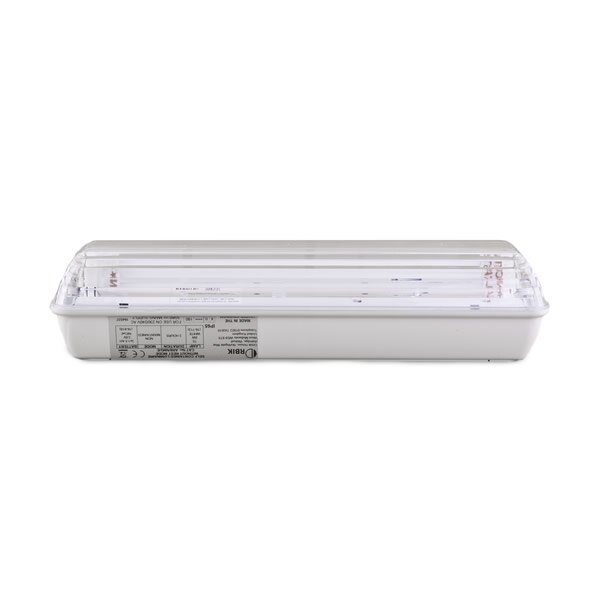

Kitemarked 8W Emergency Bulkhead Light - Arc AR8

Save 2.00
From: 32.99 ex VAT
39.59 inc VAT
Product Overview

Manufactured in the UK and Kitemarked to BS 60598-2-22 (non-maintained version), the Arc 8W bulkhead is a high quality emergency light with IP65 (weatherproof) rating. Available in maintained or non-maintained operation, the Arc is supplied complete with lamp and back-up battery that provides 3 hours of emergency illumination after a mains failure.

  • Maintained / non-maintained versions available
  • Switchable emergency lighting function - maintained units only
  • CE marked and BSI Kitemarked to BS 60598-2-22 (non-maintained version only)
  • Emergency back-up duration: 3 hours
  • Light output: 120 lumens
  • IP65 (weatherproof)
  • Manufacturer's warranty:
    • Non-maintained units - 5 years
    • Maintained units - 3 years
  • Supplied complete with lamp and battery (excluded from warranty)
  • Suitable for wall or ceiling mounting
  • Stylish, soft arc lens diffuser
  • Flame retardant polycarbonate construction
  • Hinged gear tray for ease of installation
  • Manufactured in the UK

Please Note: Lighting products available on a lead time are made to order and as such cannot be returned.

Technical Data

This is the technical data for the Kitemarked 8W Emergency Bulkhead Light - Arc AR8.

Lamp Type 8W T5
Power Consumption Non-Maintained: 8W
Maintained: 21W
Backup Duration 3 hours
Light Output 120 lumens
Dimensions (HxWxD) 80x350x108mm

Data Sheets

FAQs (1)

Q. Is it possible for a maintained emergency light to be converted to non-maintained when installed?

A. Yes, it is possible for a maintained emergency light to be installed in non-maintained operation. Maintained luminaires have two live connections - permanent supply and switched supply. If you decide to install the maintained light in non-maintained operation, the electrician just needs to miss out the switched live connection during installation. It is not possible to install a non-maintained light in maintained operation.

Pricing & Availability

Model Stock Levels Price Weight
Product Code: OBAR8NM
1 in stock

32.99 ex VAT

39.59 inc VAT

Product Code: OBAR8M
Lead Time: 7–10 days

37.99 ex VAT

45.59 inc VAT
