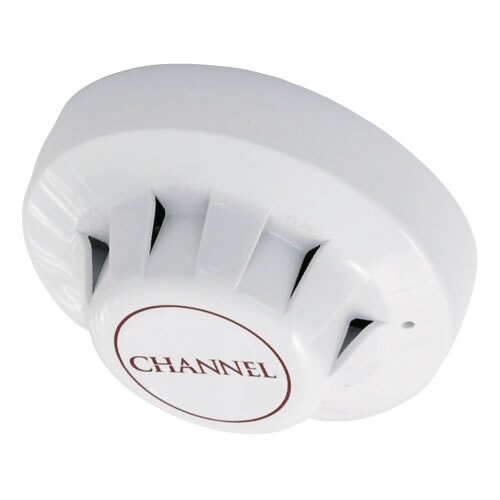

This optical smoke detector for CFP and Kentec Sigma fire alarm systems is part of the Apollo Series 65 range. The detector is activated when smoke enters the chamber and causes an LED light pulse to scatter. At this point, the optical smoke detector changes in to the alarm state.
This is the technical data for the Apollo Series 65 Optical Smoke Detector.
|Dimensions (HxDia)||50x100mm incl base|
|Supply Voltage||9-33V DC|
|Operating Temperature||-20°C to +60°C|
|Humidity Range||0% to 95% relative humidity|
|Power Consumption||30-50uA at 24V|
|Manufacturer Part Number||55000-317|
The following technical data sheets are available for this product:
|Product Code: FLAP65OPB||
Lead Time: 2–3 days
£15.99 ex VAT
£19.19 inc VAT
1 customers have rated this product and it has an overall rating of 4 out of 5
