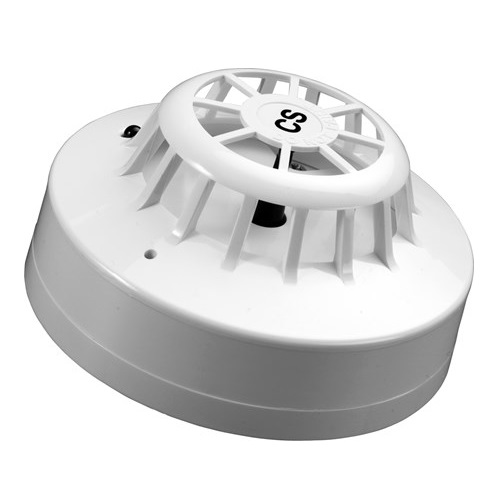

The Apollo Series 65 CS high temperature heat detector conforms to EN54:2000 and is suitable for use with CFP and Kentec Sigma 2, 4 and 8 zone fire alarm panels. The detector is activated in to alarm mode when the temperature reaches 90°C.
This is the technical data for the Apollo Series 65 CS High Temperature Heat Detector.
|Dimensions (HxDia)||50x100mm incl base|
|Supply Voltage||9-33V DC|
|Operating Temperature||-20°C to +90°C|
|Humidity Range||0% to 95% relative humidity|
|Power Consumption||45-55 uA at 24V|
|Temperature Trigger||90 °C|
|Manufacturer Part Number||55000-137|
The following technical data sheets are available for this product:
|Product Code: FLAP65HHB||
Lead Time: 2–3 days
£10.99 ex VAT
£13.19 inc VAT
