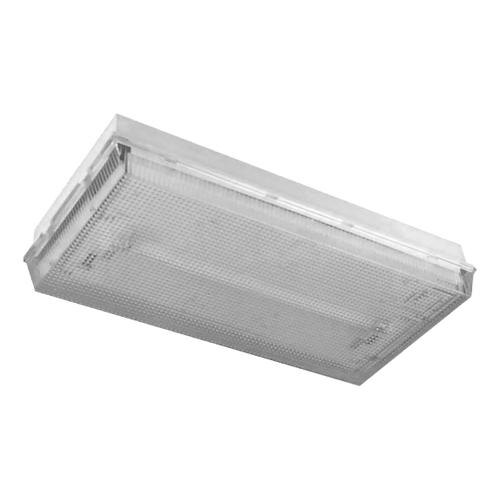

Slimline Bulkhead Emergency Light with Self-Test - TP8/ST
The TP8/ST low profile bulkhead emergency luminaire with built in self-test is
suitable for internal applications and for incorporation into an emergency lighting system complying with BS5266-1:2005. The self-test feature on TP8/ST units ensures that ensures that lights test
the circuitry and functionality and warn users if the lighting unit is not working
as it should, saving time and money.
- Maintained or non-maintained operation versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- IP40 rating (Interior use)
- Safelincs Exclusive 5 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for ceiling mounting
Typical Applications
Typical applications for the TP8/ST slimline bulkhead emergency light with self-test include installations in corridors, shops, reception areas, final exits etc.This is the technical data for the Slimline Bulkhead Emergency Light with Self-Test - TP8/ST.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | Maintained: 20VA Non-maintained: 8VA |
| Battery Type | 2.4V 4ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 70x390x185mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Non-Maintained | RL-TP8NM/ST | 1.87 kg |
| Maintained | RL-TP8M/ST | 1.87 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Non-Maintained Product Code: RL-TP8NM/ST |
In Stock
|
£92.99 inc VAT (£77.49 ex VAT) |
|
Maintained Product Code: RL-TP8M/ST |
In Stock
|
£109.99 inc VAT (£91.66 ex VAT) |
