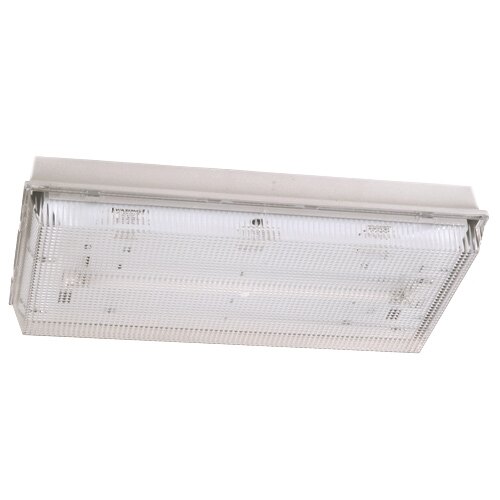

Slimline Bulkhead Emergency Light - TP8
The TP8 low profile bulkhead emergency luminaire is suitable for internal applications and for incorporation into an emergency lighting system complying with BS5266-1:2005.
- Maintained or non-maintained operation versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- IP40 rating (Interior use)
- 3 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for ceiling mounting
- This model is also available with DALI functionality
Please Note: Delivery on these units will be 1-5 working days from date of order
Typical Applications
Typical applications for the TP8 slimline bulkhead emergency light include installations in corridors, shops, reception areas, final exits etc.This is the technical data for the Slimline Bulkhead Emergency Light - TP8.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | Maintained: 20VA Non maintained: 8VA |
| Battery Type | 2.4V 4ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 70x390x185mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Maintained | RL-TP8M | 1.75 kg |
| Non-maintained | RL-TP8NM | 1.75 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Non-maintained Product Code: RL-TP8NM |
In Stock
|
£43.99 inc VAT (£36.66 ex VAT) |
|
Maintained Product Code: RL-TP8M |
In Stock
|
£46.99 inc VAT (£39.16 ex VAT) |
