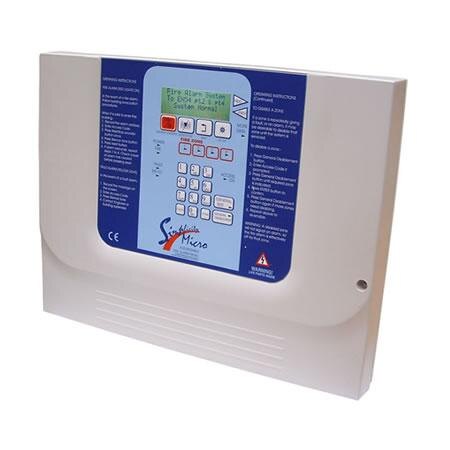

Simplicity Micro - Addressable Fire Alarm Panel
£264.99 ex VAT
(£317.99 inc VAT)
The Simplicity Micro is a unique concept that provides the best possible entry level solution for addressable fire alarm systems. It is directed primarily towards small installations, where traditionally the use of addressable systems would have been considered cost prohibitive. The Simplicity Micro is an addressable fire alarm panel that is wired as a single loop of up to 2000 metres in length. The system is divided into 4 zones, with each zone capable of containing 8 addressable devices.
- Slimline enclosure
- Flame retardant ABS plastic
- Set of changeover relay output in relay condition
- Each detector can have a sounder or combined sounder & flasher base
- 2,046 entry event log (fire & fault)
- Zone or device disablement
- One man test mode
- Complete with batteries
- Plug & play, no need for any special tools or laptop for commissioning
- Fully integrated keypad
- All associated devices are loop powered
- Complies fully to EN54 parts 2 & 4
- CE marked
This is the technical data for the Simplicity Micro - Addressable Fire Alarm Panel.
| Product Code | GESP-M |
|---|---|
| Weight | 1.2kg |
| Supply Voltage | 230V AC +/- 10% |
| System Voltage | 24V DC (nomial) |
| Number of Loops | 1 |
| Loop Capacity | 32 Devices |
| Number of Zones | 4 |
| Sound Output | Addressable sounder only |
| Fault Output | 28 V repeat output to drive relay |
| Fire output | 28 V repeat output to drive relay |
| Operating Temperature | -0°C to 50°C |
| Dimensions (HxWxD) | 355x275x70mm |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
Simplicity Micro - Addressable Fire Alarm Panel Product Code: GESP-M |
Low Stock
|
£264.99 ex VAT (£317.99 inc VAT) |
1.2kg |
Minimum 5 Year Warranty on all our Essential Fire Safety Products
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
