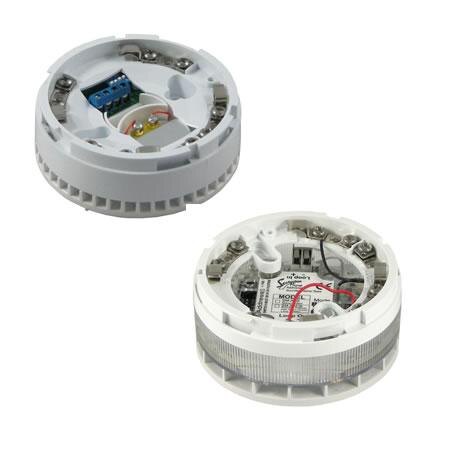

Securetone Addressable Sounder Base with Optional Flasher
These addressable sounder bases are for use with the Simplicity Micro addressable fire alarm panel to be used in an addressable system.
- IP43 Rating
- Available with optional Flasher
- Flasher colour: Red
- Flasher rate: 0.3Hz - Acts as an interface for the Fyreye conventional detectors - This can allow for considerable cost savings in locations where a sounder and detector are required.
- Number of tones: 2
- Operating voltage:17-33V DC
- Operating temperature: 50°C
This is the technical data for the Securetone Addressable Sounder Base with Optional Flasher.
| Dimensions (HxDia) | 44x100mm |
|---|---|
| Supply Voltage | 17 - 33 V DC |
| Quiescent Current | 1.2mA |
| Alarm Current @ 24V DC | Addressable sounder base with flasher: 7mA Addressable sounder base: 5.5mA |
| Operating Temperature | 50°C |
| Maximum Humidity | 95% RH non condensing |
| Sound Output | 84dB |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Addressable Sounder Base | GESM-ASB | 0.1 kg |
| Addressable Sounder Base with Flasher | GESM-ASFIB | 0.1 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Addressable Sounder Base Product Code: GESM-ASB |
In Stock
|
£36.51 inc VAT (£30.43 ex VAT) |
|
Addressable Sounder Base with Flasher Product Code: GESM-ASFIB |
Low Stock
|
£40.99 inc VAT (£34.16 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
