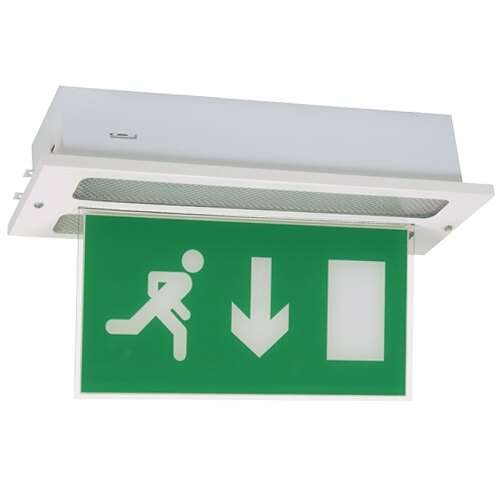

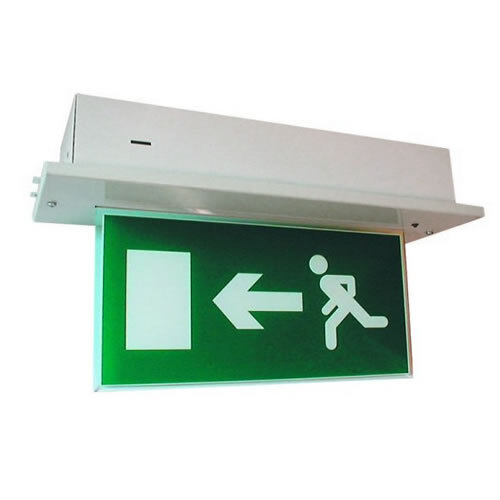

Recessed Slimline Exit Sign - FMPR
The FMPR is a recessed low profile, escape route sign blade suitable for interior applications. The legend is illuminated through a diffuser which also acts as a down lighter to provide additional lighting. The FMPR units are suitable for internal environments and incorporation into emergency lighting systems complying with BS5266-1:2005.
- Maintained or non-maintained operation versions available
- Backup duration: 3 hours
- Output: 100 Lumens
- IP20 rating (Interior use)
- Safelincs Exclusive 5 Year Warranty
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for ceiling mounting
- Hot-wire tested as defined by ICEL
- Recessed, elegant design
- Down-light facility
- This model is also available with DALI functionality
Please Note: Delivery on these units will be 1-5 working days from date of order
Typical Applications
Typical applications for the FMPR recessed low profile escape route sign include installations on exit routes in corridors, office complexes, show rooms, etc.
This is the technical data for the Recessed Slimline Exit Sign - FMPR.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | Non maintained: 8VA Maintained: 20VA |
| Battery Type | 2.4V 4ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 180x425x150mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Maintained White Arrow Left / Right | RL-FMPR8M/LR | 2 kg |
| Non-maintained White Arrow Down | RL-FMPR8NM | 2 kg |
| Maintained White Arrow Down | RL-FMPR8M | 2 kg |
| Non-maintained White Arrow Left / Right | RL-FMPR8NM/LR | 2 kg |
| Maintained Chrome Arrow Left / Right | RL-FMPR8M/CH/LR | 2 kg |
| Non-maintained Chrome Arrow Down | RL-FMPR8NM/CH | 2 kg |
| Maintained Chrome Arrow Down | RL-FMPR8M/CH | 2 kg |
| Non-maintained Chrome Arrow Left / Right | RL-FMPR8NM/CH/LR | 2 kg |
| Maintained Brass Arrow Left / Right | RL-FMPR8M/BR/LR | 2 kg |
| Non-maintained Brass Arrow Down | RL-FMPR8NM/BR | 2 kg |
| Maintained Brass Arrow Down | RL-FMPR8M/BR | 2 kg |
| Non-maintained Brass Arrow Left / Right | RL-FMPR8NM/BR/LR/LR | 2 kg |
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Brass Arrow Left / Right Non-maintained Product Code: RL-FMPR8NM/BR/LR/LR |
Product not found
|
£78.63 inc VAT (£65.53 ex VAT) |
|
White Arrow Down Non-maintained Product Code: RL-FMPR8NM |
In Stock
|
£79.99 inc VAT (£66.66 ex VAT) |
|
White Arrow Left / Right Non-maintained Product Code: RL-FMPR8NM/LR |
In Stock
|
£79.99 inc VAT (£66.66 ex VAT) |
|
White Arrow Left / Right Maintained Product Code: RL-FMPR8M/LR |
In Stock
|
£82.99 inc VAT (£69.16 ex VAT) |
|
White Arrow Down Maintained Product Code: RL-FMPR8M |
In Stock
|
£82.99 inc VAT (£69.16 ex VAT) |
|
Chrome Arrow Down Non-maintained Product Code: RL-FMPR8NM/CH |
In Stock
|
£89.99 inc VAT (£74.99 ex VAT) |
|
Chrome Arrow Left / Right Non-maintained Product Code: RL-FMPR8NM/CH/LR |
In Stock
|
£89.99 inc VAT (£74.99 ex VAT) |
|
Brass Arrow Down Non-maintained Product Code: RL-FMPR8NM/BR |
In Stock
|
£89.99 inc VAT (£74.99 ex VAT) |
|
Chrome Arrow Left / Right Maintained Product Code: RL-FMPR8M/CH/LR |
In Stock
|
£92.99 inc VAT (£77.49 ex VAT) |
|
Brass Arrow Left / Right Maintained Product Code: RL-FMPR8M/BR/LR |
In Stock
|
£92.99 inc VAT (£77.49 ex VAT) |
|
Brass Arrow Down Maintained Product Code: RL-FMPR8M/BR |
In Stock
|
£92.99 inc VAT (£77.49 ex VAT) |
|
Chrome Arrow Down Maintained Product Code: RL-FMPR8M/CH |
In Stock
|
£92.99 inc VAT (£77.49 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
