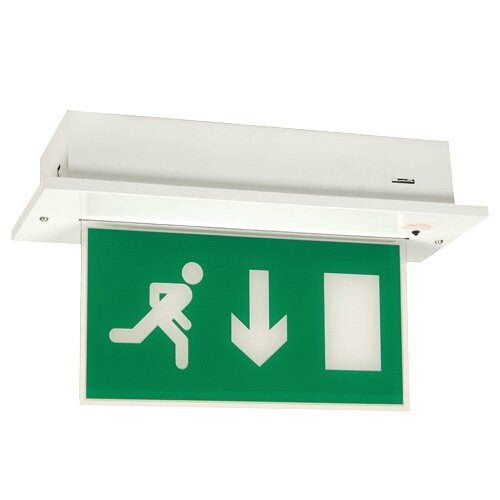

Recessed Emergency Fire Exit Sign (Fire Exit Blade) Slave Unit - MPR/SL
The MPR/SL slave unit is a decorative, edge illuminated emergency fire exit
sign suitable for interior applications. Slave units differ from maintained/non-maintained
units in that they have no internal backup battery. Instead these units are powered
by a bank of batteries centrally located within a building. MPR/SL signs are
recessed units and are suitable for internal or external environments
and for incorporation into emergency lighting systems complying with BS5266-1:2005.
- Slave unit
- IP20 rating (Interior use)
- Light output: 270 Lumens
- Safelincs Exclusive 5 Year Warranty
- Available in three versions:
- 24V AC/DC
- 50V AC/DC
- 110V AC/DC
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp
- Suitable for ceiling mounting
- Down-light facility
Typical Applications
Typical applications for the MPR/SL emergency fire exit sign slave unit include offices, hotels, art galleries, corridors etc.This is the technical data for the Recessed Emergency Fire Exit Sign (Fire Exit Blade) Slave Unit - MPR/SL.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | 7 - 20V |
| Light Output | 270 Lumens |
| Dimensions (HxWxD) | Legend Protrusion: 180x325x10mm Cut Out For Fitting: 75x380x120mm Complete Unit: 255x425x150mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Arrow Down 24V AC/DC | RL-MPR8/SL/24 | 1.5 kg |
| Arrow Down 50V AC/DC | RL-MPR8/SL/50 | 1.5 kg |
| Arrow Down 110V AC/DC | RL-MPR8/SL/110 | 1.5 kg |
| Arrow Left 24V AC/DC | RL-MPR8/SL/24/LR | 1.5 kg |
| Arrow Left 50V AC/DC | RL-MPR8/SL/50/LR | 1.5 kg |
| Arrow Left 110V AC/DC | RL-MPR8/SL/110/LR | 1.5 kg |
| Arrow Right 24V AC/DC | RL-MPR8/SL/24/LR | 1.5 kg |
| Arrow Right 50V AC/DC | RL-MPR8/SL/50/LR | 1.5 kg |
| Arrow Right 110V AC/DC | RL-MPR8/SL/110/LR | 1.5 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Arrow Down 24V AC/DC Product Code: RL-MPR8/SL/24 |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Left 24V AC/DC Product Code: RL-MPR8/SL/24/LR |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Right 24V AC/DC Product Code: RL-MPR8/SL/24/LR |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Down 50V AC/DC Product Code: RL-MPR8/SL/50 |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Left 50V AC/DC Product Code: RL-MPR8/SL/50/LR |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Right 50V AC/DC Product Code: RL-MPR8/SL/50/LR |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Down 110V AC/DC Product Code: RL-MPR8/SL/110 |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Left 110V AC/DC Product Code: RL-MPR8/SL/110/LR |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
|
Arrow Right 110V AC/DC Product Code: RL-MPR8/SL/110/LR |
In Stock
|
£69.99 inc VAT (£58.33 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
