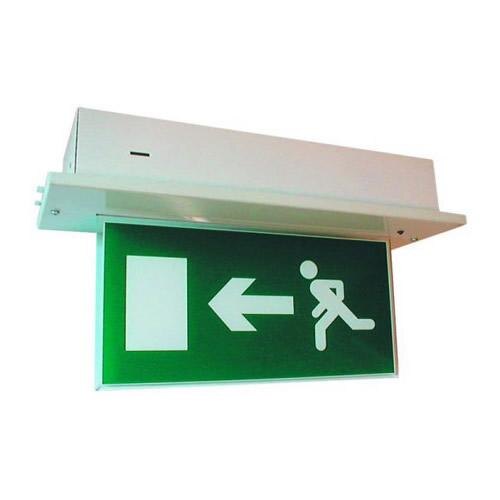

Recessed Exit Sign - MPR
A decorative, edge illuminated emergency escape route sign. Complying with BS5266-1:2005.
- Maintained or non-maintained operation versions available
- Backup duration: 3 hours
- Light output: 100 Lumens
- IP20 rating (Interior Use)
- Safelincs Exclusive 5 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for ceiling mounting
- Available in 3 finishes
- Down-light facility
- This model is also available with DALI functionality
Please Note: Delivery on these units will be 1-5 working days from date of order
Typical Applications
Typical applications for the MPR recessed fire exit sign include installations on exit routes in corridors, hotels, museums, libraries, show rooms etc.This is the technical data for the Recessed Exit Sign - MPR.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | Non maintained: 8VA Maintained: 20VA |
| Battery Type | 2.4V 4ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 255x425x150mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Maintained Chrome Arrow Left / Right | RL-MPR8M/LR/CH | 1.75 kg |
| Maintained Chrome Arrow Down | RL-MPR8M/CH | 1.75 kg |
| Maintained Brass Arrow Left / Right | RL-MPR8M/LR/BR | 1.75 kg |
| Maintained White Arrow Left / Right | RL-MPR8M/LR | 1.75 kg |
| Maintained Brass Arrow Down | RL-MPR8M/BR | 1.75 kg |
| Maintained White Arrow Down | RL-MPR8M | 1.75 kg |
| Non-maintained Chrome Arrow Left / Right | RL-MPR8NM/LR/CH | 1.75 kg |
| Non-maintained Chrome Arrow Down | RL-MPR8NM/CH | 1.75 kg |
| Non-maintained Brass Arrow Left / Right | RL-MPR8NM/LR/BR | 1.75 kg |
| Non-maintained White Arrow Left / Right | RL-MPR8NM/LR | 1.75 kg |
| Non-maintained Brass Arrow Down | RL-MPR8NM/BR | 1.75 kg |
| Non-maintained White Arrow Down | RL-MPR8NM | 1.75 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
White Arrow Left / Right Non-maintained Product Code: RL-MPR8NM/LR |
In Stock
|
£67.99 inc VAT (£56.66 ex VAT) |
|
White Arrow Down Non-maintained Product Code: RL-MPR8NM |
In Stock
|
£67.99 inc VAT (£56.66 ex VAT) |
|
White Arrow Down Maintained Product Code: RL-MPR8M |
In Stock
|
£71.99 inc VAT (£59.99 ex VAT) |
|
White Arrow Left / Right Maintained Product Code: RL-MPR8M/LR |
In Stock
|
£71.99 inc VAT (£59.99 ex VAT) |
|
Chrome Arrow Left / Right Non-maintained Product Code: RL-MPR8NM/LR/CH |
In Stock
|
£76.99 inc VAT (£64.16 ex VAT) |
|
Chrome Arrow Down Non-maintained Product Code: RL-MPR8NM/CH |
In Stock
|
£76.99 inc VAT (£64.16 ex VAT) |
|
Brass Arrow Left / Right Non-maintained Product Code: RL-MPR8NM/LR/BR |
In Stock
|
£76.99 inc VAT (£64.16 ex VAT) |
|
Brass Arrow Down Non-maintained Product Code: RL-MPR8NM/BR |
In Stock
|
£76.99 inc VAT (£64.16 ex VAT) |
|
Chrome Arrow Left / Right Maintained Product Code: RL-MPR8M/LR/CH |
In Stock
|
£79.99 inc VAT (£66.66 ex VAT) |
|
Chrome Arrow Down Maintained Product Code: RL-MPR8M/CH |
In Stock
|
£79.99 inc VAT (£66.66 ex VAT) |
|
Brass Arrow Left / Right Maintained Product Code: RL-MPR8M/LR/BR |
In Stock
|
£79.99 inc VAT (£66.66 ex VAT) |
|
Brass Arrow Down Maintained Product Code: RL-MPR8M/BR |
In Stock
|
£79.99 inc VAT (£66.66 ex VAT) |
