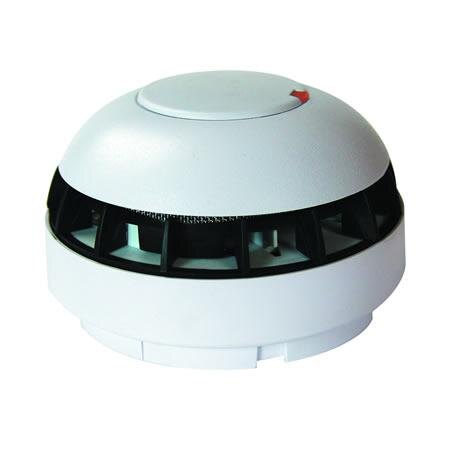

Rafiki Twinflex Multipoint
Multipoint Detector compatible with all Rafiki Twinflex 2-Wire systems:
- 7 different detection modes configurable by user
- All modes compliant with European detector type specifications
- Compatible with installations compliant to BS5839: Part 1: 2002
- Available with or without sounder
- Includes mounting base
- Unobtrusive simple design
This is the technical data for the Rafiki Twinflex Multipoint.
| Dimensions (HxWxD) | 150x150x62mm |
|---|
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Multipoint with Integral Sounder | SU202-0001 | 0.3 kg |
| Multipoint without Integral Sounder | SU202-0003 | 0.3 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Specifiers and installers who choose the Multipoint Detector do so secure in the knowledge that the fire detection performance of the detector can be matched to the environment in which it is installed - and changed at any time during the lifetime of the installation.
The mode of detection required can be simply set by configuring the DIL switch in the detector electronics module.
The unit can be configured as a detector in any of the following modes:
The mode of detection required can be simply set by configuring the DIL switch in the detector electronics module.
The unit can be configured as a detector in any of the following modes:
Heat
- Rate of Rise
- Standard Fixed Temperature - 58:C approx
- High Fixed Temperature - 90:C approx
Smoke
- Ionisation detection
- Optical detection
- Reduced Sensitivity
Combination
- Optical detection & low fixed temperature heat combined
All modes are compliant with European detector type specifications, and are suitable for use in installations compliant with BS5839: Part 1: 2002, Part 6 2004 if used in conjunction with a Twinflex Plus system.
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Multipoint without Integral Sounder Product Code: SU202-0003 |
In Stock
|
£30.99 inc VAT (£25.83 ex VAT) |
|
Multipoint with Integral Sounder Product Code: SU202-0001 |
Low Stock
|
£35.99 inc VAT (£29.99 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
