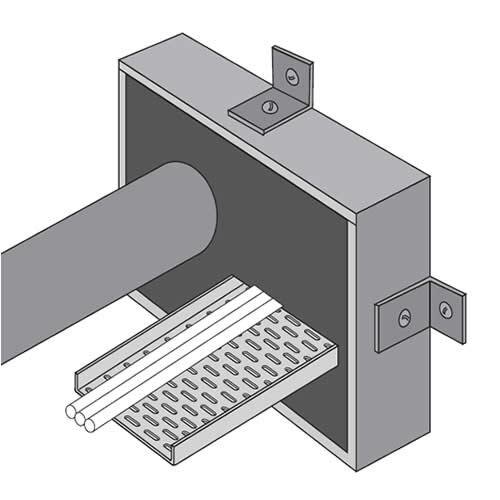

Multi-purpose Box 135mm

The intumescent multi-purpose box is ideal for rebate or surface mount installation, providing fireproofing where wires and pipes etc. pass through fire barrier walls, ceilings and floors. Manufactured with a fireproof smoke sponge and an intumescent lining and the ability to be fitted in multiple locations, this intumescent multi-purpose box is the best of its kind.

• Suitable for use on pipes, trunking, cables and other many service penetrations
• Intumescent fire seals and fire and smoke sponge
• Detachable section to allow:
      - Fixing in tight corners
      - Fitting over existing services
• Metal outer casing with easy to cut fire resistant sponge to protect services
• Up to 4 hour fire protection
• Dimensions (HxWxD): 135x135x50mm
• Tested to BS 476-20 & 22:1987 and EN 1363-1:2000

This is the technical data for the Multi-purpose Box 135mm.

Technical Data Sheets

The following technical data sheets are available for this product:

• Multi-Purpose-Box
