Modum Fold-out Fire Escape Ladder
The Modum fire escape ladder is a permanently installed, slimline fold-out ladder which can be opened in an emergency to create a safe and sturdy means of escape. This fire escape ladder is opened by pulling a tamper-proof release pin at the top of the ladder. The unique Modular Design enables bespoke lengths to be created. When you order the ladder, all you need to know is the highest floor from which the ladder is to be deployed (eg 1st floor). This determines the price of the ladder. Our customer care advisor will contact you once the order is placed to find out the exact length of the ladder required and to answer any questions you might have.

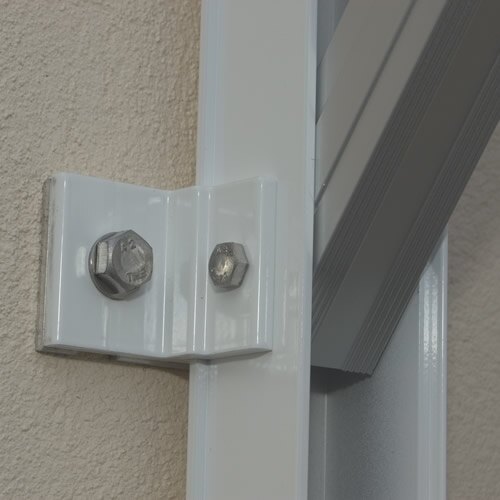

- Anodized aluminium construction and stainless steel fixings provide excellent weatherproof properties and are the reason for the 15 year warranty.

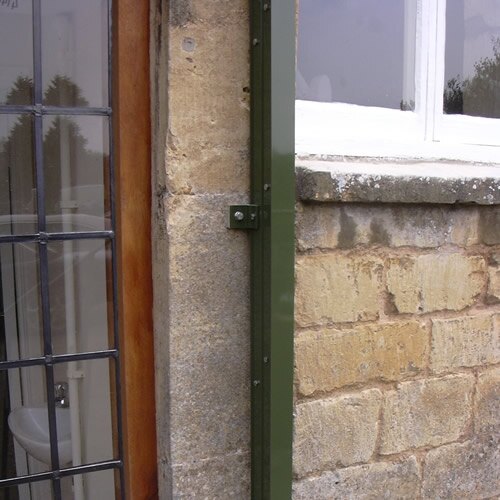

- The slimline, fold-away design of the ladder has a closed profile of only 80mm depth and is less obtrusive than a downpipe

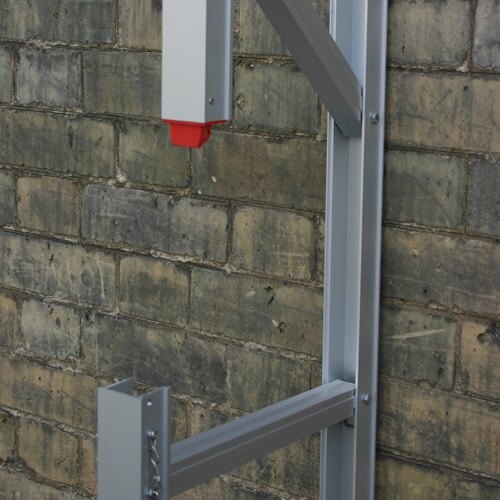

- Anti-slip aluminium rungs are concealed inside the ladder's profile when it is closed protecting them from the elements

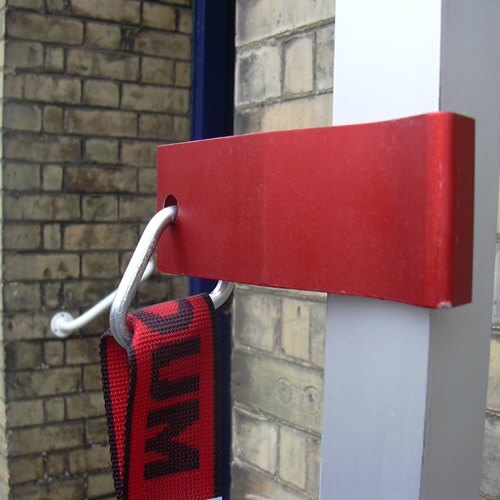

- Anti-tamper locking pin at the height of the escape window eliminates unauthorised use of the ladder from ground level
- Optional Modum harness for extra safety during use of the ladder
- Supplied with photoluminescent sign to allow clear and easy identification of the escape point at each release station
- 15 year warranty
- The strength of the ladder allows 3 people per floor level (max weight 100kg per person) to climb down the ladder at the same time. Each rung contributes to the technical load bearing capacity of the ladder. Therefore, the longer the ladder, the more weight it can carry. For example, even a short 2.7m section of ladder has a safe load bearing capacity of 500kg
- Simple installation process - the ladder is supplied complete with a helpful installation DVD and all the necessary fittings and even the drills required
- Tested to BS EN 131-2:1993 by TÜV and GS marked
- Additional release stations allow the ladder to be accessed from Multiple Floors making the ladder suitable for multi-storey buildings
- Manufactured by Modum in Denmark
- See product leaflet
This is the technical data for the Modum Fold-out Fire Escape Ladder.
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| 2nd Floor with 1st and 2nd Floor Release Stations White | MDLW22 | 32 kg |
| 2nd Floor with Top Release Station Only White | MDLW2 | 26 kg |
| 1st Floor with Top Release Station White | MDLW1 | 16 kg |
| 2nd Floor with 1st and 2nd Floor Release Stations Anodised Aluminium | MDLA22 | 32 kg |
| 2nd Floor with Top Release Station Only Anodised Aluminium | MDLA2 | 26 kg |
| 1st Floor with Top Release Station Anodised Aluminium | MDLA1 | 16 kg |
To find out if the Modum ladder is suitable for your particular application you can use our Multiple Choice Help - Is the Modum escape ladder for me?
The Folding Mechanism

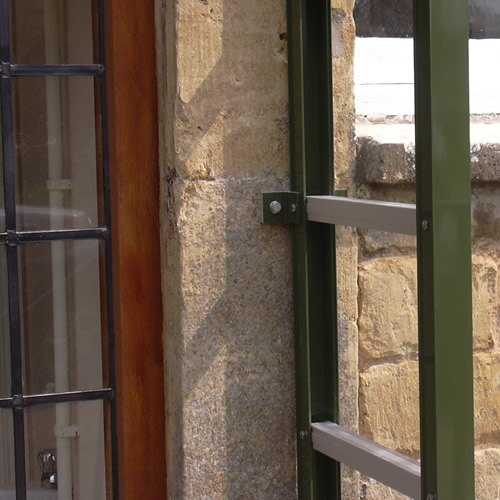

In an emergency this permanently installed fire escape ladder changes from a slimline, unobtrusive feature into a safe and sturdy fire escape ladder. The Anti-tamper locking pins are designed for quick release during emergency situations but also provide protection by eliminating unauthosied access from ground level. Once the pin is released, the ladder is designed to unfold under its own weight creating a stable and structurally sound means of escape.
Multi-Storey Buildings
The Modum ladder is constructed using a modular design which which not only enables bespoke lengths to be created but also allows additional release stations to be added into the length of the ladder. These release stations can provide a means of escape from each level of a multi-storey building.
Installation of the Modum Ladder The Ladder is designed to be installed by competent person and comes complete with a helpful installation DVD, all the necessary fittings and 2 masonry drill bits. A copy of the Installation DVD is available for purchase so that you can decide if the Modum ladder is suitable for your application. Installation of the Modum ladder involves a general understanding of DIY and use of some basic tools. To help you asses if self installation will be possible we have compiled a list of DIY skills and general tools that you will require.
Image gallery
Q.Can practice evacuations be carried out with the Modum ladder?
A.Yes, to use the Modum ladder remove the pin at the top of the ladder. This will allow the ladder to be folded out and you can then practice getting out of the window and climbing down the ladder. To store the ladder simply fold it back up and insert the pin.
Q.How do I know what length of Modum ladder I require?
A.To measure the length of ladder required you need to start your point of measuring from the wall 3/4 of the way up the length of the window to the ground and then deduct 40 cm. This will ensure that when the ladder is deployed it has enough clearance off the ground. The ladder can be made up of sections measuring 1.5, 1.8 and 2.7m long, so any configuration is possible to achieve the length you need.

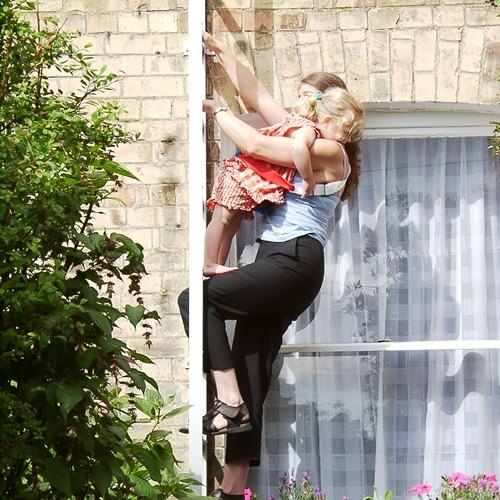

Q.What type of fire escape ladder is suitable to use with small children and pets?
A.To be able to carry small children and pets down the escape ladder you would require a child harness. This is suitable to use with all the escape ladders. The escape ladder that is most suitable to use with small children is the externally fixed Modum ladder. If you would like a portable ladder the Saf-Escape and EasyScape ladders are also suitable. These ladders use thicker chain and rungs and are therefore a little easier to use if you are carrying a child or need a small child to climb down itself.
Q.Is the Modum escape ladder suitable to be installed on listed buildings?
A.Yes, the Modum ladder has been successfully installed on to listed buildings, both public and private properties. The ladder is also available to order in any RAL colour.
Q.Can the Modum escape ladder be used with a bottom release pin to climb up from a basement to ground floor?
A.The Modum ladder can be supplied with either a top or bottom release pin.
Pricing & Availability
| Ladder Size | Anodised Aluminium | White Finish | ||
|---|---|---|---|---|
| Top Release Only | Additional release station (1st Floor) | Top Release Only | Additional release station (1st Floor) | |
| 1st Floor (2 Storey) | £447.49 ex VAT £536.99 inc VAT In Stock
| / | £565.95 ex VAT £679.14 inc VAT In Stock
| / |
| 2nd Floor (3 Storey) | £629.99 ex VAT £755.99 inc VAT In Stock
| £676.66 ex VAT £811.99 inc VAT In Stock
| £822.49 ex VAT £986.99 inc VAT In Stock
| £867.49 ex VAT £1040.99 inc VAT In Stock
|
