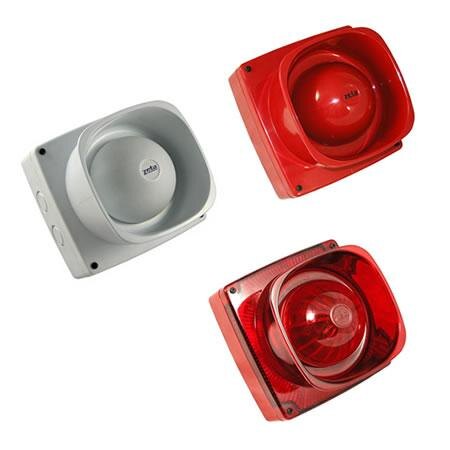

Maxitone Addressable Sounder with Optional Flasher
These Maxitone addressable flashers are for use with the Simplicity Micro addressable fire alarm panel to be used in an addressable system.
- Available in 3 versions
- - Red
- - White
- - Red with built in flasher
- Sound output: 94 dBA at 1 metre.
- Operating voltage:17-33V DC
- Operating temperature: 20°C to 50°C
- IP65 Rating
This is the technical data for the Maxitone Addressable Sounder with Optional Flasher.
| Dimensions (HxWxD) | 129x124x100mm |
|---|---|
| Supply Voltage | 17 - 33 V DC |
| Quiescent Current | Maxitone Addressable sounder: 1.5mA Maxitone Addressable sounder with flashe: 1.2mA |
| Alarm Current @ 24V DC | Maxitone Addressable sounder: 10mA Maxitone Addressable sounder with flashe: 6.5mA |
| Operating Temperature | Maxitone Addressable sounder with flashe: 0°C to 40 °C Maxitone Addressable sounder: -20°C to 50°C |
| Maximum Humidity | 95% RH non condensing |
| Sound Output | 94dB |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Maxitone Red Sounder | GEZAMT/R | 0.35 kg |
| Maxitone White Sounder | GEZAMT/W | 0.35 kg |
| Maxitone Red Sounder Built in Flasher | GEZAMTF/R | 0.35 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Maxitone Red Sounder Product Code: GEZAMT/R |
Low Stock
|
£47.99 inc VAT (£39.99 ex VAT) |
|
Maxitone White Sounder Product Code: GEZAMT/W |
Low Stock
|
£47.99 inc VAT (£39.99 ex VAT) |
|
Maxitone Red Sounder Built in Flasher Product Code: GEZAMTF/R |
Low Stock
|
£77.99 inc VAT (£64.99 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
