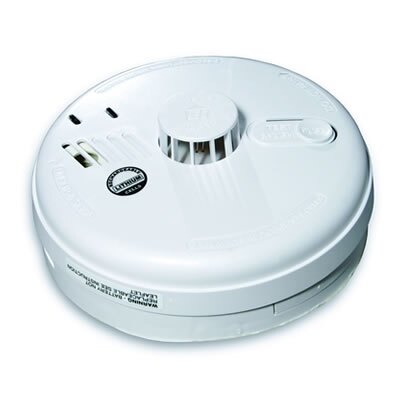

230V Heat Alarm with Lithium Back-up Battery Ei164
- 10 year Rechargeable Lithium Cell back-up
- 5 year warranty
- A maximum of 12 units can be interconnected via 3 core interconnection cable
- Other alarms that can be interconnected include:
- Fully conforming to BS 5839-6:2004 Grade D, E and F
- Kitemarked to BS 5446-2:2000
- CE Marked
- Fixed temperature fast response thermistor type sensor range 54° - 62° C
- Hush button for false alarm control
- Separate mains and warning LEDs for easier identification of alarm status
- Auto self-test feature continually monitors the sensor every 40 seconds for additional safety
- Precision charging circuit ensures peak cell performance
- Low power cell LED warning in the event of a mains or cell failure
| Model Number | Type of unit | Type of interconnection |
| Ei161RC | Ionisation Alarm | Hard wire using 3 core interconnection cable |
| Ei166RC | Optical Alarm | Hard wire using 3 core interconnection cable |
| EI2110 | Multi Sensor Smoke & Heat Alarm | Hard wire using 3 core interconnection cable |
| Model Number | Type of unit | Type of interconnection |
| Y03 | Multi Frequency Sounder | Hard wire using 3 core interconnection cable |
| MCP401RC | Manual Call Point | Hard wire using 3 core interconnection cable |
| Ei1529RC | Smoke alarm Locate, Hush and Remote test switch | Hard wire using 3 core interconnection cable |
This is the technical data for the 230V Heat Alarm with Lithium Back-up Battery Ei164.
| Product Code | EI164RC |
|---|---|
| Weight | 0.3kg |
| Dimensions (HxWxDia) | 145x145x52mm |
| Back-Up Battery | Longlife Lithium Battery |
| Sound Output | 85dB (minimum) at 3m |
| Temperature Range | 0°C to 40°C |
| Humidity Range | 15% to 95% Relative Humidity |
Technical Data Sheets
The following technical data sheets are available for this product:
Q.How can we test the alarm to make sure it is working?
A.The manufacturer's recommendation is to test the alarm by pressing the test button. This will simulate a heat input at the heat sensor. You can also test it with a hair dryer but make sure that the hairdryer is kept away at a suitable distance from the alarm. Do not attempt to test the alarm by using open fire or excessive heat as this may damage the unit.
Pricing & Availability
| Model | Prices | Weight |
|---|---|---|
|
230V Heat Alarm with Lithium Back-up Battery Ei164 Product Code: EI164RC |
£44.16 ex VAT (£52.99 inc VAT) |
0.3kg |
