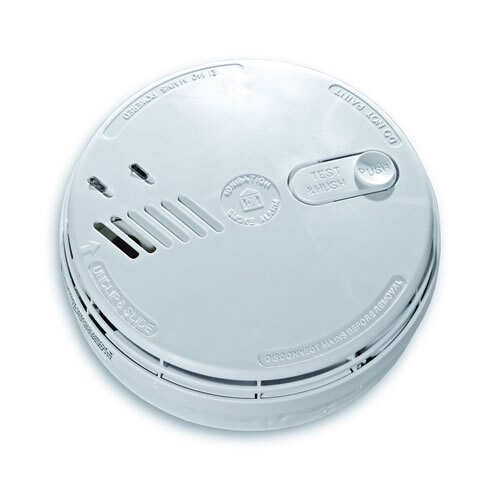

Mains powered ionisation alarm from Ei complete with hush button and Easi-Fit mounting base plate.
| Model Number | Type of unit | Type of interconnection |
| Ei144 | Heat Alarm | Hard wire using 3 core interconnection cable |
| Ei146 | Optical Alarm | Hard wire using 3 core interconnection cable |
| Model Number | Type of unit | Type of interconnection |
| Y03 | Multi Frequency Sounder | Hard wire using 3 core interconnection cable |
| MCP401RC | Manual Call Point | Hard wire using 3 core interconnection cable |
This is the technical data for the 230V Ionisation Smoke Alarm Ei141.
| Product Code | EI141 |
|---|---|
| Weight | 0.3kg |
| Dimensions (HxWxD) | 145x145x45mm |
| Back-Up Battery | 9V Alkaline |
| Sound Output | 85dB (minimum) at 3m |
| Temperature Range | 0° to 40°C |
| Humidity Range | 15% to 95% Relative Humidity |
The following technical data sheets are available for this product:
Q.Will the replacement smoke alarm kit for an Ei141 smoke alarm allow me to just change the head unit leaving the base plate in place?
A.Yes, the Easichange replacement kits allow you to just change the head of the unit leaving the base plate in place.
Q.How do you replace the battery of the Ei141 alarm?
A.The Ei140 series has a small rectangular hole in the side of the unit. To remove the head of the unit you need to disconnect the mains from the unit at the fusebox and insert a small flat head screwdriver in to that hole. Press down slightly with the screwdriver. Slide the head in the direction of the arrow. This should slide off with ease. If not a little pressure may be needed to be able to slide it in the direction of the arrow. There is also a video to demonstrate how to remove your alarm and change the battery on the website.
Q.Can the sensitivity of the Ei141(ionisation alarm) be altered as it keeps going off when I am cooking?
A.The Ei141(ionisation alarm)is the wrong alarm to be located in the kitchen area. We would recommend a heat alarm for kitchen area. The Ei144 heat alarm gives a fire warning when the temperature at the unit reaches 58°C. Heat alarms are ideal for use in kitchens and garages, where the use of optical or ionisation alarms would lead to unwanted nuisance alarms.
Q.Why is my Mains Powered Ionisation Alarm with Hush Button Ei141 beeping? I have replaced the batteries.
A.Check on the side of the alarm and look for the manufacture date and 'replace by' date to see if the alarm requires replacing. Otherwise try cleaning the alarm around the vents with a vacuum nozzle.
Q.What type of electrical cable is required to carry the mains supply and trigger signal for the wired alarms?
A.For the mains supply of the first unit a 2-core earth cable would be sufficient. For the connection between the alarms a 3-core earth cable would be required
Show all FAQs| Model | Prices | Weight |
|---|---|---|
|
230V Ionisation Smoke Alarm Ei141 Product Code: EI141 |
£16.66 ex VAT (£19.99 inc VAT) |
0.3kg |
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
