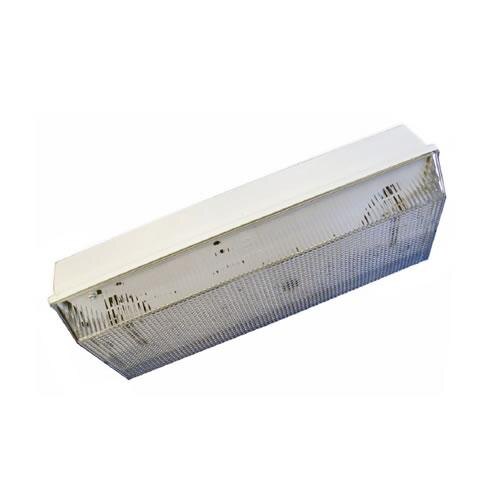

'Low Temperature' Emergency Bulkhead Light - JP-25
The JP8-25 range of low temperature emergency bulkhead lights are suitable for interior and exterior applications. The JP8-25 bulkhead with Fresnel diffuser is most suitable for installation in catering and industrial applications due to its concentrated throw of light. These units are suitable for incorporation into an emergency lighting system complying with BS5266-1:2005.
- Maintained units
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- Fresnel diffuser
- Can operate between -25°C and 40°C
- IP65 rating (Exterior use)
- 3 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for wall or ceiling mounting
Typical Applications
Typical applications for the JP8-25 low temperature emergency light bulkheads include installations in factories, refrigerated environments, large unheated warehouses, outdoor environments prone to severe low temperatures etc. This is the technical data for the 'Low Temperature' Emergency Bulkhead Light - JP-25.
| Product Code | RL-JP8M/-25 |
|---|---|
| Weight | 0.45 kg |
| Lamp Type | 8W T5 |
| Power Consumption | 20VA |
| Battery Type | 2.4V 4Ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 370x140x100mm |
Technical Data Sheets
The following technical data sheets are available for this product:
Q.Can the emergency lights with IP65 rating be fitted with emergency showers?
A.Yes, as this rating identifies that the unit is protected against low pressure jets from all directions - limited ingress permitted.
