Emergency Light with Optional Hanging Blade - TPX

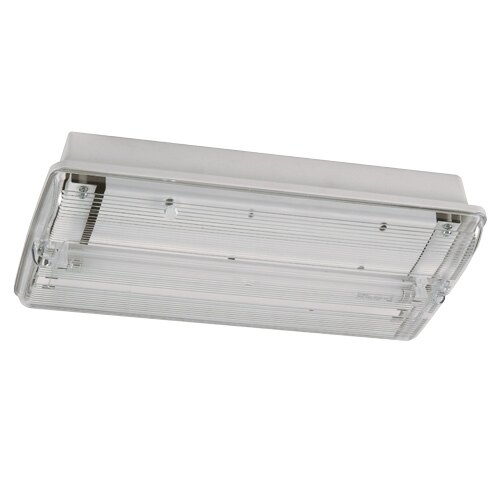

The TPX light is an attractive, low profile, versatile emergency bulkhead light
suitable for internal or external environments and incorporation into emergency lighting systems complying with BS5266-1:2005.
The TPX bulkhead can be supplied with an optional edge-lit hanging blade sign that is suitable
for emergency escape route marking.
- Maintained or non-maintained operation versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- TPX without hanging blade sign: IP55 rating (Exterior use)
- TPX with hanging blade sign: IP20 rating (Interior use)
- Safelincs Exclusive 5 Year Warranty
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for ceiling mounting
- Available in 4 versions
- This model is also available with DALI functionality
Typical Applications
Typical applications for the TPX low profile emergency light bulkhead include installations on exit routes, in libraries, corridors, office complexes, aesthetically important buildings, community centres etc.This is the technical data for the Emergency Light with Optional Hanging Blade - TPX.
| Lamp Type | 8W T5 8W T5 |
|---|---|
| Power Consumption | Non maintained: 8 VA Non maintained: 8 VA Maintained: 20 VA Maintained: 20 VA |
| Battery Type | 2.4V ah 2.4V ah |
| Backup Duration | 3 hours 3 hours |
| Light Output | 100 Lumens 100 Lumens |
| Dimensions (HxWxD) | 70x355x195mm 70x355x195mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Non-maintained Arrow Left / Right | RL-TPX8NM/EX/LR | 1.75 kg |
| Non-maintained No Hanging Sign | RL-TPX8NM | 1.75 kg |
| Maintained Arrow Down | RL-TPX8M/EX | 1.75 kg |
| Non-maintained Arrow Down | RL-TPX8NM/EX | 1.75 kg |
| Maintained Arrow Left / Right | RL-TPX8M/EX/LR | 1.75 kg |
| Maintained No Hanging Sign | RL-TPX8M | 1.75 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
No Hanging Sign Non-maintained Product Code: RL-TPX8NM |
Low Stock
|
£43.99 inc VAT (£36.66 ex VAT) |
|
No Hanging Sign Maintained Product Code: RL-TPX8M |
In Stock
|
£45.99 inc VAT (£38.33 ex VAT) |
|
Arrow Down Non-maintained Product Code: RL-TPX8NM/EX |
Low Stock
|
£68.99 inc VAT (£57.49 ex VAT) |
|
Arrow Left / Right Non-maintained Product Code: RL-TPX8NM/EX/LR |
Low Stock
|
£68.99 inc VAT (£57.49 ex VAT) |
|
Arrow Left / Right Maintained Product Code: RL-TPX8M/EX/LR |
Low Stock
|
£71.99 inc VAT (£59.99 ex VAT) |
|
Arrow Down Maintained Product Code: RL-TPX8M/EX |
In Stock
|
£71.99 inc VAT (£59.99 ex VAT) |
