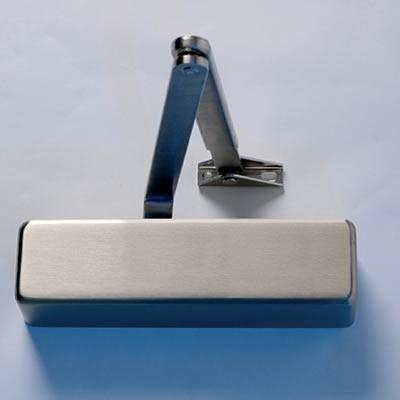

GEZE TS1200 Overhead Door Closer - Closing Force EN 3 - 4
- Suitable for use on Single Action doors
- Suitable for internal applications
- 10 year warranty
- Made in Germany
- BWF Certified
- Fire rating: FD120
- Maximum leaf width 1100mm (EN 3-4)
- Universal fixing for push and pull side mounting
- Adjustable closing force by shoe position
- Adjustable closing speed
- Adjustable latching action
- CE Marked to EN 1154
- CE and Certifire Approved CF144
This is the technical data for the GEZE TS1200 Overhead Door Closer - Closing Force EN 3 - 4.
| Product Code | GZTS1200 |
|---|---|
| Weight | 2.0kg |
| Dimensions (HxWxD) | Arm Length: approx 250mm Closer Body: 60x218x50mm |
| EN Size | 3-4 |
| Adjustable Closing Speed | Yes |
| Adjustable Back Check | No |
| Adjustable Latching Action | Yes |
Technical Data Sheets
The following technical data sheets are available for this product:
Q.Can you please explain the closing force rating 1-6 for door closers?
A.The closing force rating 1-6 relates to the maximum width and weights of door that the door closer is suitable for and if you click on the link below and then click on the EN size guide this gives the table with the closing force categories and the relevant maximum door widths and weights. http://www.safelincs.co.uk/Door-Closers/
