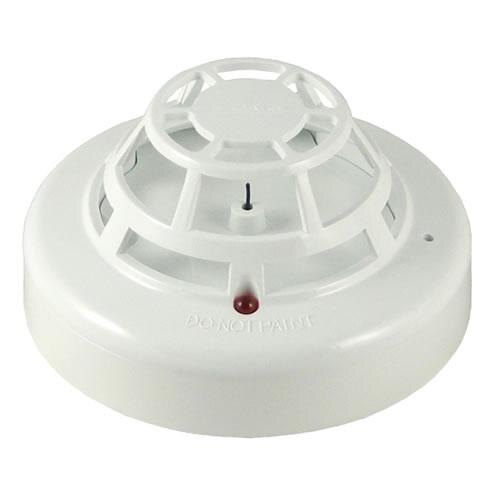

Fyreye "Extra" Heat Detectors
The Fyreye "extra" range of smoke and heat detectors are designed for use with the Simplicity Micro Addressable fire alarm panel and have an extra LED to improve detector identification in an alarm condition. The dual LEDs allow the alarm to be observed from 360°
Rate of Rise heat detectorThe detector uses a thermistor to sense a quick rise in temperature, and also a final threshold temperature of 57°C.
Fixed heat detector
Has a single thermistor arrangement that gives an alarm at a temperature of 90°C.
- Supplied with locking grub screw to prevent unauthorised head removal
- Operating temperature -10°c to +50°c
- Operating Voltage:9 - 33V DC
- Detector coverage:100m2
- IP43 protection
- Designed to meet EN54 part 5
- Please note: The Fyreye conventional detectors require an addressable detector base to operate with the simplicity micro fire alarm panel
This is the technical data for the Fyreye "Extra" Heat Detectors.
| Dimensions (HxDia) | 48x100mm |
|---|---|
| Supply Voltage | 9 - 33V DC |
| Quiescent Current | 40 μA |
| Alarm Current @ 24V DC | 34mA |
| Operating Temperature | -10°C to 50°C |
| Minimum Contiuous Temperature | 0°C |
| Maximum Humidity | 95% RH non condensing |
| Coverage | 50m2 |
| Start up time | 10 Seconds |
| Alarm Condition | Fixed Heat Trigger: 90°C RAte of Rise Trigger: 57°C |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
Fyreye "Extra" Heat Detectors Product Code: GEFEHE2000 |
In Stock
|
£8.33 ex VAT (£9.99 inc VAT) |
0.1kg |
Minimum 5 Year Warranty on all our Essential Fire Safety Products
