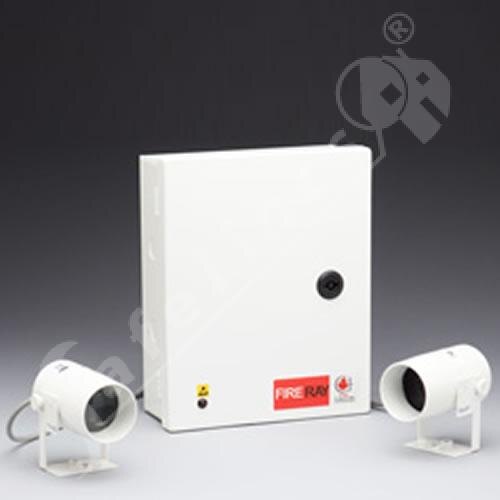

FireRay 2000 - End to End Infrared Optical Beam Smoke Detector
The FireRay 2000 conventional infrared optical beam smoke detector provides economical and effective protection of large, open plan spaces such as warehouses, factories, shopping centres, leisure centres and industrial premises. The FireRay 2000 can be connected to a zone of a conventional fire alarm control panel or interfaced with an analogue-addressable system.
- Separate transmitter and receiver units
- Coverage 10 - 100m
- Adjustable sensitivity levels
- Ground level control unit
- Automatic self check drift compensation: The system monitors long term degradation due to build up of dirt on the optical surfaces
- Small unobtrusive transmitter and receiver heads
- Complies with BS5839 part 5
- World-wide approvals including VdS and UL
This is the technical data for the FireRay 2000 - End to End Infrared Optical Beam Smoke Detector.
| Product Code | FFFR2000 |
|---|---|
| Weight | 2.0kg |
The FireRay 2000 system is comprised of an infrared transmitter which projects a modulated infrared beam across a large span to a receiver unit. If the area is contaminated by smoke for a pre determined period of time the beam will either be received with reduced power or will fail to reach the receiver, triggering the alarm.
| Technical specifications | Width (mm) | Height (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| Transmitter and Receiver (inc brackets) | 83 | 95 | 101 | |
| Control Unit | 210 | 265 | 88 | 1.8 |
Download the Detector installation guide
Q.How many FireRay units will I need to install in my warehouse?
A.The number of units that are required is dependant on each individual layout and area. The installation must be compliant with the BS5839 standard. Please call our customer service team for more information.
Q.Will the FireRay 2000 beam smoke detector alarm if other materials other than smoke cross the beam?
A.Yes, if the beam is interrupted for a pre-determined length of time the alarm will sound. This system has three sensitivity settings to choose from.
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
FireRay 2000 - End to End Infrared Optical Beam Smoke Detector Product Code: FFFR2000 |
Low Stock
|
£289.99 ex VAT (£347.99 inc VAT) |
2.0kg |
