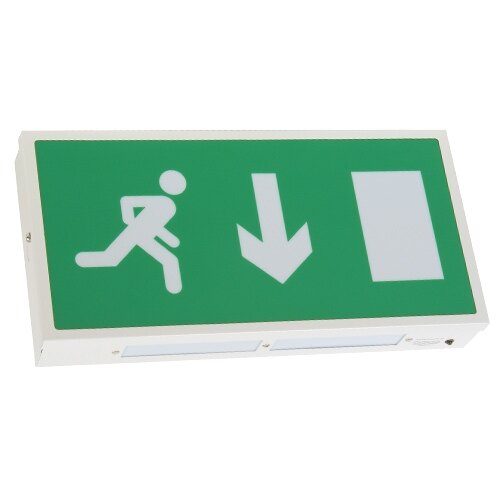

Emergency Escape Route Sign (Fire Exit Box) with Self-Test - ES/ST
The ES/ST is a cost effective, illuminated emergency escape route sign available
in a choice of three finishes and is suitable for interior applications. The
ES/ST units are fitted with a self-test feature which reduces maintenance
costs and ensures the light is fully functioning. ES/ST's are suitable for internal
installation and incorporation into emergency lighting systems complying with BS5266-1:2005.
- Maintained or non-maintained operation versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- IP20 rating (Interior use)
- Safelincs Exclusive 5 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied as complete unit with lamp, battery and selected directional arrow
- Built in self-test facility
- Suitable for wall or ceiling mounting
- Available in 3 finishes
- Down-light facility
Typical Applications
Typical applications for the ES/ST emergency escape route sign with self-test include installations on exit routes in schools, colleges, libraries, corridors, office complexes, warehouses, schools, community centres etc.This is the technical data for the Emergency Escape Route Sign (Fire Exit Box) with Self-Test - ES/ST.
| Dimensions (HxWxD) | 190x380x60mm |
|---|---|
| Light Output | 100 Lumens |
| Backup Duration | 3 Hours |
| Battery Type | 2.4V 4ah |
| Power Consumption | Non-maintained: 8 VA Maintained: 20 VA |
| Lamp Type | 8W T5 |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Non-maintained White Arrow Down | RL-ES8NM/ST | 0.78 kg |
| Non-maintained White Arrow Left | RL-ES8NM/ST/L | 0.78 kg |
| Non-maintained White Arrow Right | RL-ES8NM/ST/R | 0.78 kg |
| Non-maintained Brass Arrow Down | RL-ES8NM/ST/BR | 0.78 kg |
| Non-maintained Brass Arrow Left | RL-ES8NM/ST/BR/L | 0.78 kg |
| Non-maintained Brass Arrow Right | RL-ES8NM/ST/BR/R | 0.78 kg |
| Non-maintained Chrome Arrow Down | RL-ES8NM/ST/CH | 0.78 kg |
| Non-maintained Chrome Arrow Left | RL-ES8NM/ST/CH/L | 0.78 kg |
| Non-maintained Chrome Arrow Right | RL-ES8NM/ST/CH/R | 0.78 kg |
| Maintained White Arrow Down | RL-ES8M/ST | 0.78 kg |
| Maintained White Arrow Left | RL-ES8M/ST/L | 0.78 kg |
| Maintained White Arrow Right | RL-ES8M/ST/R | 0.78 kg |
| Maintained Brass Arrow Down | RL-ES8M/ST/BR | 0.78 kg |
| Maintained Brass Arrow Left | RL-ES8M/ST/BR/L | 0.78 kg |
| Maintained Brass Arrow Right | RL-ES8M/ST/BR/R | 0.78 kg |
| Maintained Chrome Arrow Down | RL-ES8M/ST/CH | 0.78 kg |
| Maintained Chrome Arrow Left | RL-ES8M/ST/CH/L | 0.78 kg |
| Maintained Chrome Arrow Right | RL-ES8M/ST/CH/R | 0.78 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
White Arrow Down Non-maintained Product Code: RL-ES8NM/ST |
In Stock
|
£92.99 inc VAT (£77.49 ex VAT) |
|
White Arrow Right Maintained Product Code: RL-ES8M/ST/R |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
|
White Arrow Left Maintained Product Code: RL-ES8M/ST/L |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
|
White Arrow Down Maintained Product Code: RL-ES8M/ST |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
|
White Arrow Left Maintained Product Code: RL-ES8M/ST/L |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
|
White Arrow Right Maintained Product Code: RL-ES8M/ST/R |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
|
Brass Arrow Left Non-maintained Product Code: RL-ES8NM/ST/BR/L |
In Stock
|
£114.99 inc VAT (£95.83 ex VAT) |
|
Brass Arrow Down Non-maintained Product Code: RL-ES8NM/ST/BR |
In Stock
|
£114.99 inc VAT (£95.83 ex VAT) |
|
Chrome Arrow Right Non-maintained Product Code: RL-ES8NM/ST/CH/R |
In Stock
|
£114.99 inc VAT (£95.83 ex VAT) |
|
Chrome Arrow Left Non-maintained Product Code: RL-ES8NM/ST/CH/L |
In Stock
|
£114.99 inc VAT (£95.83 ex VAT) |
|
Chrome Arrow Down Non-maintained Product Code: RL-ES8NM/ST/CH |
In Stock
|
£114.99 inc VAT (£95.83 ex VAT) |
|
Brass Arrow Right Non-maintained Product Code: RL-ES8NM/ST/BR/R |
In Stock
|
£114.99 inc VAT (£95.83 ex VAT) |
|
Brass Arrow Down Maintained Product Code: RL-ES8M/ST/BR |
In Stock
|
£123.99 inc VAT (£103.33 ex VAT) |
|
Brass Arrow Left Maintained Product Code: RL-ES8M/ST/BR/L |
In Stock
|
£123.99 inc VAT (£103.33 ex VAT) |
|
Brass Arrow Right Maintained Product Code: RL-ES8M/ST/BR/R |
In Stock
|
£123.99 inc VAT (£103.33 ex VAT) |
|
Chrome Arrow Down Maintained Product Code: RL-ES8M/ST/CH |
In Stock
|
£123.99 inc VAT (£103.33 ex VAT) |
|
Chrome Arrow Left Maintained Product Code: RL-ES8M/ST/CH/L |
In Stock
|
£123.99 inc VAT (£103.33 ex VAT) |
|
Chrome Arrow Right Maintained Product Code: RL-ES8M/ST/CH/R |
In Stock
|
£123.99 inc VAT (£103.33 ex VAT) |
