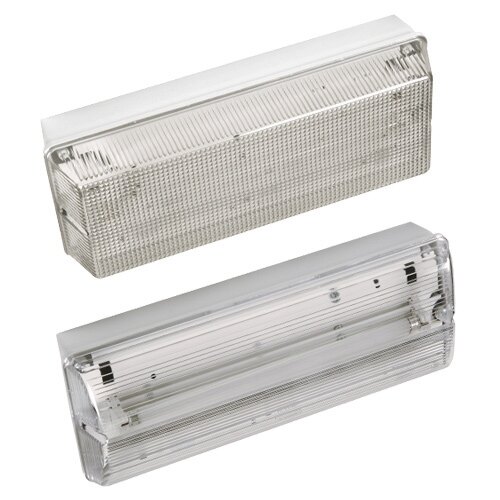

Emergency Bulkhead Light with Self-Test - JP8/ST
The JP8/ST range of emergency bulkhead lights are suitable for interior and exterior applications. The JP8/ST bulkhead with Fresnel diffuser is most suitable for installation in catering and industrial applications due to its concentrated throw of light. The JP8/ST bulkhead with Prismatic diffuser is most suitable for installation in hotel and restaurant applications, with the dispersed, less intense throw of light making it more suitable for decorative prestigious locations. The JP8/ST units are suitable for incorporation into an emergency lighting system complying with BS5266-1:2005. The self-test technology enables regular checks of the status of the emergency lighting unit, sounding an alarm and setting off a warning LED should there be any malfunction in the unit.
- Maintained or non-maintained operation versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- Built in self-test facility
- Optional Fresnel diffuser or Prismatic diffuser
- IP65 Protection (exterior use)
- Safelincs Exclusive 5 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for wall or ceiling mounting
Typical Applications
Typical applications for the JP8/ST economy bulkhead emergency light include
installations in student accommodation, offices, factories, hotels, pubs, warehouses,
small shops, sports halls, youth clubs etc.
This is the technical data for the Emergency Bulkhead Light with Self-Test - JP8/ST.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | Maintained: 20VA Non-maintained: 8VA |
| Battery Type | 2.4V 4Ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 90x370x140mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Maintained Prismatic Diffuser | RL-JP8M/ST | 0.65 kg |
| Non-maintained Prismatic Diffuser | RL-JP8NM/ST | 0.65 kg |
| Maintained Fresnel Diffuser | RL-JPX8M/ST | 0.65 kg |
| Non-maintained Fresnel Diffuser | RL-JPX8NM/ST | 0.65 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Non-maintained Prismatic Diffuser Product Code: RL-JP8NM/ST |
In Stock
|
£87.99 inc VAT (£73.33 ex VAT) |
|
Non-maintained Fresnel Diffuser Product Code: RL-JPX8NM/ST |
In Stock
|
£89.99 inc VAT (£74.99 ex VAT) |
|
Maintained Prismatic Diffuser Product Code: RL-JP8M/ST |
In Stock
|
£99.99 inc VAT (£83.33 ex VAT) |
|
Maintained Fresnel Diffuser Product Code: RL-JPX8M/ST |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
