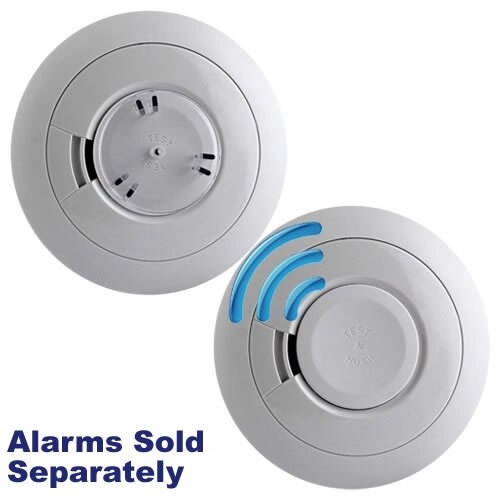

9V Radio-Interlinked Smoke & Heat Alarms with Sealed Ten Year Lithium Battery - Ei600TYCRF Series
The Ei600TYCRF series smoke and heat alarms with 10 year sealed lithium battery give total peace of mind over the entire product life without ever having to change batteries. These alarms are also widely accepted as an alternative to BS5839-pt6 Grade D (mains powered, interlinked alarms). Installing these units cuts out the need for an electrician, visible wiring and hence avoids mess and disruption.
- Battery powered radio-interlinked optical smoke alarms with 10 year battery life. You never have to change batteries in the 10 year livespan of product
- Ideal for extensions and newly decorated properties
- Fully conforming to BS 5839-6:2004 Grade F. Usually accepted as alternative to Grade D
- RF range 150 metres (minimum) in free space and up to 30 metres in buildings. Larger buildings can easily be covered as the units can act as repeaters (daisy-chaining)
- Up to 12 radio-interlinked smoke alarms or heat alarms can be installed
- Requires no cables between units and no power supply
- Dimensions (HxDia): 45x115mm
- Digitally coded to avoid interference with neighbouring systems
- 5 year warranty
- Optical version VdS approved to BS EN 14604:2005 and CE marked
- Can be used with manual break points and control switches (see related products below)
- Smoke Alarm: test and hush button
- Heat Alarm: Test button only
- Made by Ei Electronics in Ireland
- If you are required to install BS5839 pt 6 grade D, present a print out of this page to your Building Inspector before purchasing to ensure that they will be accepted.
|
Model Number |
Type of unit |
Type of interconnection |
| Ei168RC/Ei161RC | Ionisation Alarm | Radio-interlinked using the Ei168RC base |
| Ei168RC/Ei164RC | Heat Alarm | Radio-interlinked using the Ei168RC base |
| Ei168RC/Ei166RC | Optical Alarm | Radio-interlinked using the Ei168RC base |
| Ei168RC/Ei2110 | Multi Sensor Smoke & Heat Alarm | Radio-interlinked using the Ei168RC base |
| Ei3100RF | Ionisation Alarm | Radio-interlinked |
| Ei3103RFU | Heat Alarm | Radio-interlinked |
| Ei3105RF | Optical Alarm | Radio-interlinked |
|
Model Number |
Type of unit |
Type of interconnection |
| Ei407 | Wireless Manual Call Point | Radio-interlinked |
| Ei410 | Hand Held Radio Frequency Remote Controller | Radio-interlinked |
| Ei411H | Wireless Locate, Hush and Remote test switch | Radio-interlinked |
This is the technical data for the 9V Radio-Interlinked Smoke & Heat Alarms with Sealed Ten Year Lithium Battery - Ei600TYCRF Series.
| Dimensions (HxWxD) | Heat (Alkaline Battery): 115x115x55mm Heat (Lithium Battery): 115x115x55mm Optical (Lithium Battery): 115x115x45mm Optical (Alkaline Battery): 115x115x45mm |
|---|---|
| Sound Output | 85dB (minimum) at 3m |
| Temperature Range | 0°C to 40°C |
| Humidity Range | 15% to 95% Relative Humidity |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Optical Smoke Alarm | EI605TYCRF | 0.22 kg |
| Heat Alarm | EI603TYCRF | 0.2 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Q.What is the difference between Ei3100RF radio-interlinked smoke alarm series and the Ei600 series of radio-interlinked smoke alarms? Why does one cost much more than the other?
A.The EI600RF series are a later model and on top of all the features that the Ei3100RF offers, the series has the possibility to use the locate feature in the control switch, making the product more similar to a BS5839 part 6 Grade A alarm system. Additionally, the Ei600 series smoke alarms are offered with a true ten year life sealed lithium battery which makes the alarms acceptable in most circumstances as a BS5839 part 6 Grade D fire alarm system. This offers a substantial saving to customers, as it replaces the need for an electrician installing mains powered alarms.
Q.If the radio interlinking signal on one unit fails will the units still work as stand alone units.
A.Yes, should the radio interlinking signal fail the units will continue to sound independently should they detect a fire.
Q.Can a wireless router interfere with the radio interlinked alarms?
A.A wireless router is very unlikely to interfere with the signal of your radio interlinked alarms.
Q.Do the radio interlinked units give out a constant signal all the time and does this decrease the battery life more than a non-interlinked alarm?
A.Yes, radio interlinked alarms are periodically sending and receiving signals from other units in the network and therefore the life of the battery is reduced. Units with alkaline batteries should have the batteries are changed annually [unless they are fitted with a sealed 10 year battery as eg in the Ei600RF series].
Q.Do I need to take out all the batteries in my radio-interlinked alarms before adding a new alarm into the system?
A.No, you do not need to remove all the batteries. Just simply press the house code button on all the units. Please ensure that the batteries have full power as this could render the house code process incomplete.
Show all FAQsPricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Optical Smoke Alarm Product Code: EI605TYCRF |
In Stock
|
£120.99 inc VAT (£100.83 ex VAT) |
|
Heat Alarm Product Code: EI603TYCRF |
In Stock
|
£127.99 inc VAT (£106.66 ex VAT) |
