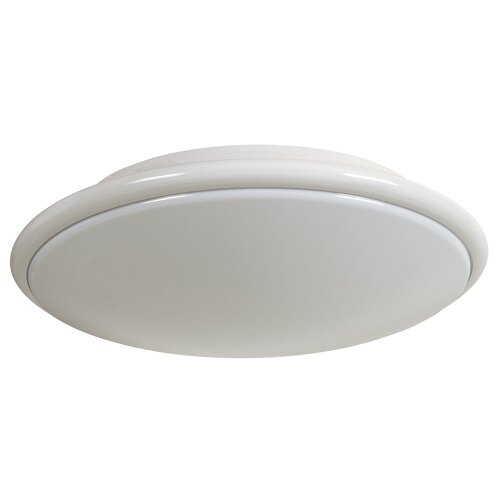

Slimline Circular Emergency Bulkhead Light - XL
- Maintained operation
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 205 Lumens
- IP20 rating (Interior use)
- Safelincs Exclusive 5 Year Warranty
- Opal diffuser
- White, brass and chrome finishes available
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery
- Suitable for wall or ceiling mounting
- Also available in a non-emergency mains powered version
Typical Application
Typical applications for the XL decorative slimline circular emergency bulkhead light include installations in shops, corridors, offices, stairwells, board rooms etc.This is the technical data for the Slimline Circular Emergency Bulkhead Light - XL.
| Lamp Type | 28W 2D |
|---|---|
| Power Consumption | Maintained: 39VA |
| Battery Type | 3.6V 4ah |
| Backup Duration | 3 Hours |
| Light Output | 205 Lumens |
| Dimensions (HxDia) | 95x425mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Chrome | RL-XL28M/CH | 2.7 kg |
| Brass | RL-XL28M/BR | 2.7 kg |
| White | RL-XL28M | 2.7 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
A quality decorative luminaire with sympathetic looks to please architects and designers, the XL demonstrates that emergency lighting need no longer be a compromise.
Comprising a white, stove-enamelled spun steel base and fitted with an elegantly shaped polycarbonate opal diffuser, the XL Light is designed for use on escape routes. It passes the 850°C hot-wire test, as defined by ICEL.
The diffuser is a snap fit and provides a seal to IP20. A BESA entry is provided in the base. Complying with the requirements of EN60598-2-22, the XL is also suitable for incorporation into an emergency lighting system complying with BS5266-1:2005.
The XL Light effectively combines emergency lighting and mains lighting.
| LAMP TYPE | 28W 2D |
| BATTERY | 3.6V 4AH |
| DURATION | 3 HOURS |
| WEIGHT | 2.5 - 2.7KG |
| POWER CONSUMPTION | MAINTAINED: 39VA |
| OUTPUT | 205 LUMENS |
| DIMENSIONS | 425mm Diameter x 95mm Depth |
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
White Product Code: RL-XL28M |
In Stock
|
£87.99 inc VAT (£73.33 ex VAT) |
|
Chrome Product Code: RL-XL28M/CH |
In Stock
|
£98.03 inc VAT (£81.69 ex VAT) |
|
Brass Product Code: RL-XL28M/BR |
In Stock
|
£104.99 inc VAT (£87.49 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
