Decorative Circular Emergency Bulkhead Light - XLP38
The XLP38 is a high quality, designer circular emergency bulkhead light featuring an optional "halo" effect for added style. The XLP38 is available in both maintained emergency and 230V mains powered versions, allowing you to illuminate an emergency escape route without compromising on aesthetics. Fitted with an opal diffuser which produces a softer more decorative throw of light, these lights are ideally suited to prestigious locations.These superior luminaires are suitable for indoor application and the maintained versions are suitable for incorporation into an emergency lighting system complying with BS5266-1:2005.
- Maintained operation
- Switchable emergency lighting function
- IP20 rating (Interior use)
- Light output: 625 Lumens
- Backup duration: 3 hours
- Hot-wire tested as defined by ICEL
- Opal diffuser for softer throw of light
- Polycarbonate enclosure

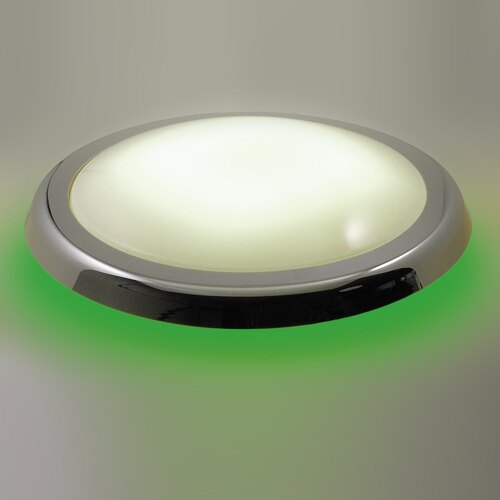

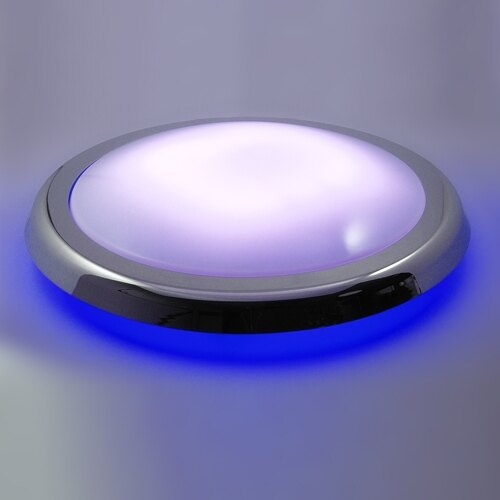

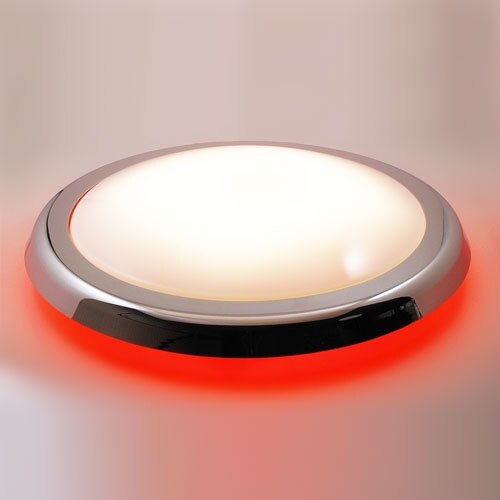

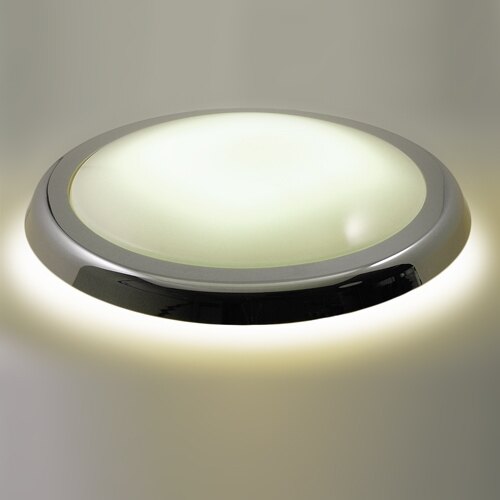

- Optional halo effect with a choice of colours
- White, brass and chrome finishes available
- Fully complies to BS EN 60598-2-22
- Supplied complete with lamp and battery (maintained version)
- Suitable for wall or ceiling mounting
- 3 Year Warranty
- Also available in a non-emergency mains powered version
Typical Application
Typical applications for the XLP38 decorative circular emergency bulkhead light include installations in shops, corridors, offices, stairwells, board rooms etc.This is the technical data for the Decorative Circular Emergency Bulkhead Light - XLP38.
| Dimensions (HxDia) | 117x430mm |
|---|---|
| Power Consumption | 48VA |
| Lamp Type | 38W 2D |
| Light Output | 625 Lumens |
| Battery Type | 4.8V 4.5AH |
| Backup Duration | 3 Hours |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Chrome Blue Halo | RL-XLP38M/HALO/CR/BE | 3.8 kg |
| White None | RL-XLP38M | 3.8 kg |
| Brass None | RL-XLP38M/BR | 3.8 kg |
| Chrome None | RL-XLP38M/CR | 3.8 kg |
| Brass Blue Halo | RL-XLP38M/HALO/BR/BE | 3.8 kg |
| Brass White Halo | RL-XLP38M/HALO/BR | 3.8 kg |
| Chrome White Halo | RL-XLP38M/HALO/CR | 3.8 kg |
| Brass Red Halo | RL-XLP38M/HALO/BR/RD | 3.8 kg |
| Chrome Red Halo | RL-XLP38M/HALO/CR/RD | 3.8 kg |
| White Red Halo | RL-XLP38M/HALO/RD | 3.8 kg |
| White Blue Halo | RL-XLP38M/HALO/BE | 3.8 kg |
| Chrome Green Halo | RL-XLP38M/HALO/CR/GN | 3.8 kg |
| Brass Green Halo | RL-XLP38M/HALO/BR/GN | 3.8 kg |
| White White Halo | RL-XLP38M/HALO | 3.8 kg |
| White Green Halo | RL-XLP38M/HALO/GN | 3.8 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
White None Product Code: RL-XLP38M |
In Stock
|
£124.99 inc VAT (£104.16 ex VAT) |
|
Brass None Product Code: RL-XLP38M/BR |
In Stock
|
£146.99 inc VAT (£122.49 ex VAT) |
|
Chrome None Product Code: RL-XLP38M/CR |
In Stock
|
£146.99 inc VAT (£122.49 ex VAT) |
|
White Green Halo Product Code: RL-XLP38M/HALO/GN |
In Stock
|
£177.99 inc VAT (£148.33 ex VAT) |
|
White Blue Halo Product Code: RL-XLP38M/HALO/BE |
In Stock
|
£193.99 inc VAT (£161.66 ex VAT) |
|
White Red Halo Product Code: RL-XLP38M/HALO/RD |
In Stock
|
£193.99 inc VAT (£161.66 ex VAT) |
|
White White Halo Product Code: RL-XLP38M/HALO |
In Stock
|
£193.99 inc VAT (£161.66 ex VAT) |
|
Brass White Halo Product Code: RL-XLP38M/HALO/BR |
In Stock
|
£193.99 inc VAT (£161.66 ex VAT) |
|
Brass Green Halo Product Code: RL-XLP38M/HALO/BR/GN |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
|
Chrome White Halo Product Code: RL-XLP38M/HALO/CR |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
|
Brass Blue Halo Product Code: RL-XLP38M/HALO/BR/BE |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
|
Brass Red Halo Product Code: RL-XLP38M/HALO/BR/RD |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
|
Chrome Green Halo Product Code: RL-XLP38M/HALO/CR/GN |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
|
Chrome Red Halo Product Code: RL-XLP38M/HALO/CR/RD |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
|
Chrome Blue Halo Product Code: RL-XLP38M/HALO/CR/BE |
In Stock
|
£199.99 inc VAT (£166.66 ex VAT) |
